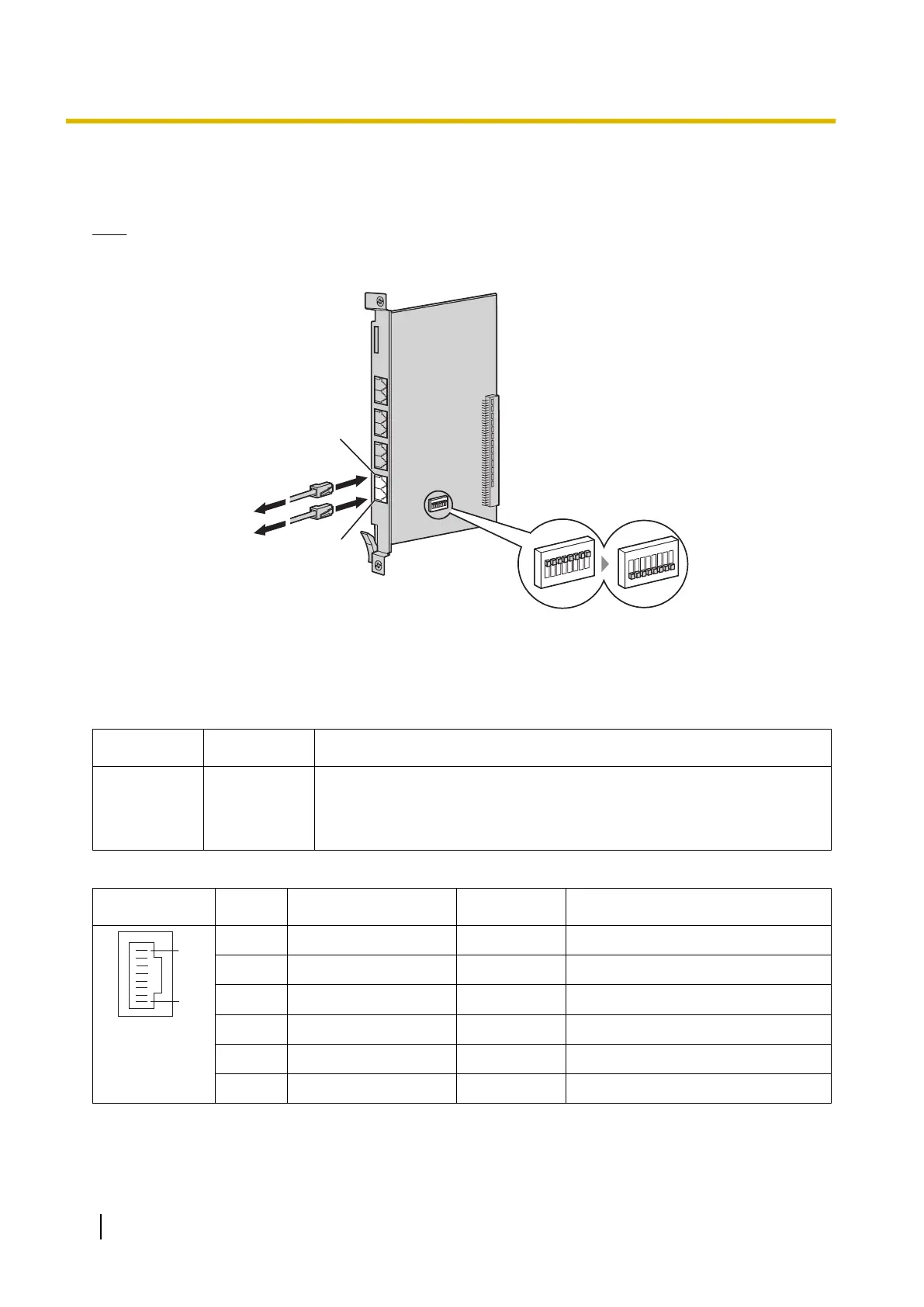

Using BRI Card
LINE 1 and LINE 2 of the BRI4 and BRI8 cards can be used for Power Failure Connections.
Note
When the power returns, the connection will switch back to normal configuration from the Power Failure
Connection, and a trunk conversation established during power failure will be dropped.
RJ45
(LINE 2)
RJ45
(LINE 1)
To NT1
OFF
ON
OFF
ON
To ISDN extension
Set all DIP switches
at "ON" positions.
Accessories and User-supplied Items
Accessories (included): none
User-supplied (not included): RJ45 connectors
Switch Settings
Switch Type Usage and Status Definition
PFT Setting DIP Set all DIP switches to "ON"
positions to use LINE 1 and LINE 2 as a PFT
port.
LINE 1: Power Failure LINE (NT1)
LINE 2: Power Failure EXTN (extension)
RJ45 Connector LINE 1 Pin Assignments
No. Signal Name Level [V] Function
1-2 Reserved – –
3 TX1 (+) Transmit data 1
4 RX2 (+) Receive data 2
5 RX1 (-) Receive data 1
6 TX2 (-) Transmit data 2
7-8 Reserved – –
130 Installation Manual
2.10.1 Power Failure Connections
