Panasonic KX-TDA100D Installation Guide

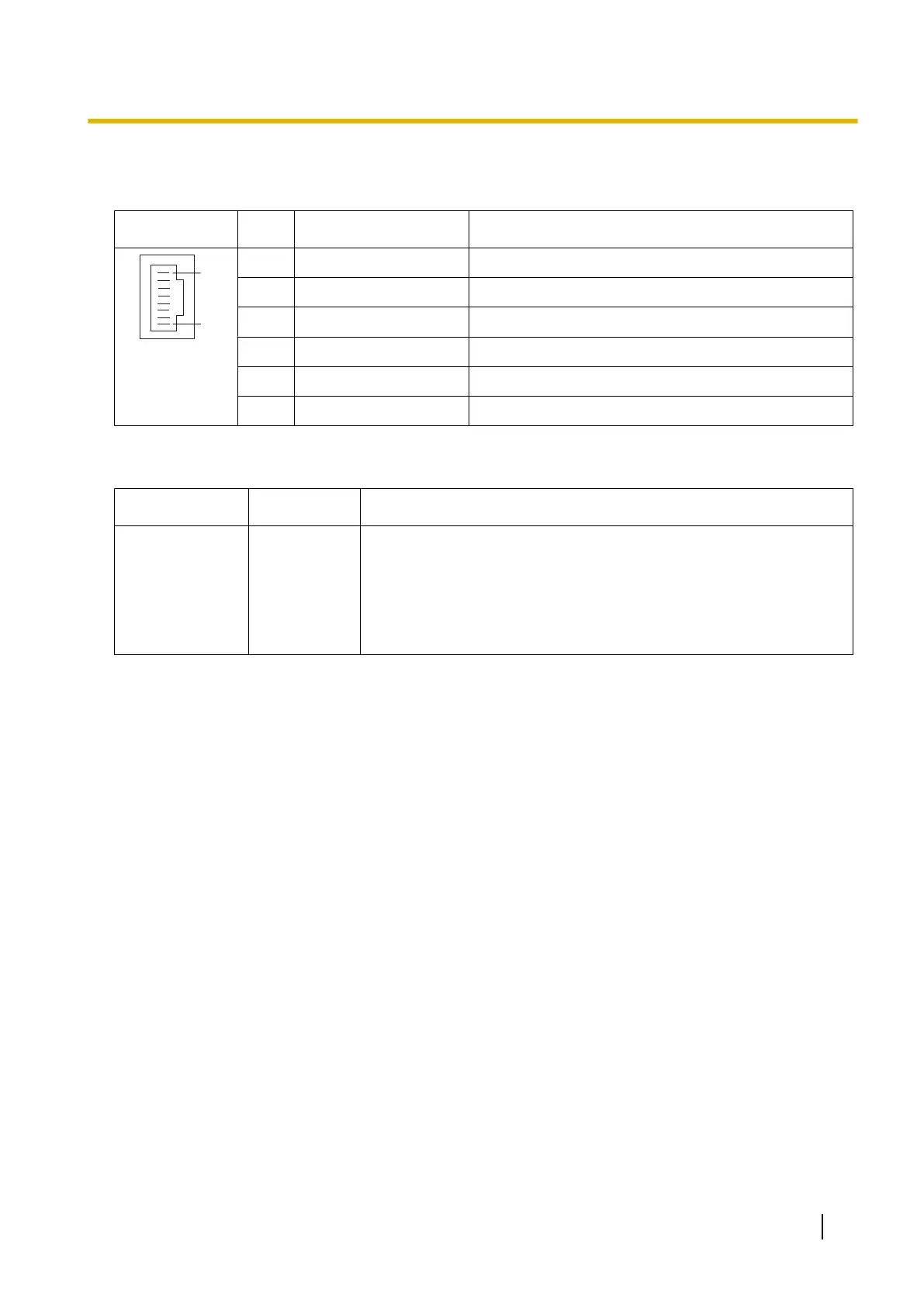

Pin Assignments
RJ45 Connector
No. Signal Name Function
8
1
1-2 Reserved –
3 D1 Data port (High)
4 POWH Power (High)
5 POWL Power (Low)
6 D2 Data port (Low)
7-8 Reserved –
LED Indications
Indication Colour Description
CARD STATUS Green/Red Card status indication
• OFF: Power Off
• Green ON: Normal (all ports are idle)
• Green Flashing (60 times per minute): Normal (a port is in use)
• Red ON: Fault (includes reset)
• Red Flashing (60 times per minute): Out of Service
Installation Manual 91
2.5.1 CSIF4 Card (KX-TDA0143) and CSIF8 Card (KX-TDA0144)

Panasonic KX-TDA100D Specifications

General

Type	Hybrid IP-PBX
Maximum Extensions	128
VoIP Compatibility	Yes
Power Supply	AC 100-240 V, 50/60 Hz
IP Extensions	64
DHCP Server	Yes
Operating Temperature	0°C to 40°C
Humidity	10% to 90% (non-condensing)
