1. Before Use
16
• Function buttons ([Fn6] to [Fn10]) are
touch icons.
Touch the [ ] tab on the recording screen to
display them.

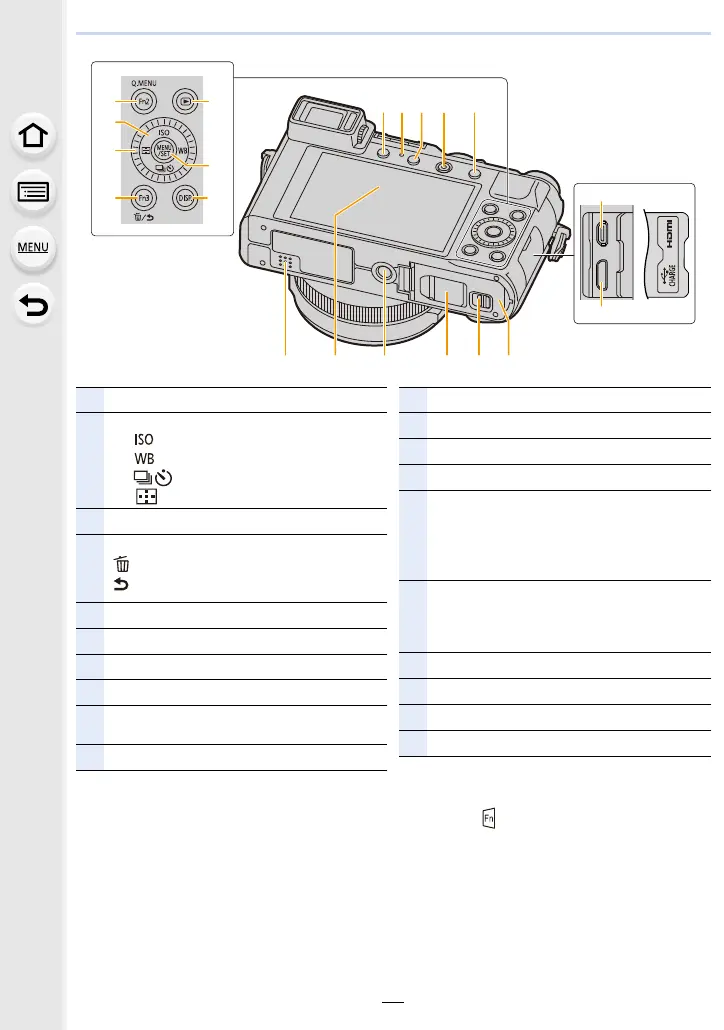

29 3130 32 33
22 26
28
27
25
23
24
34 36 37 38
41
40
3935
22
[Q.MENU] button (P48)/[Fn2] button (P50)
23
Cursor button (P40)
3: [ ] (ISO sensitivity) button (P93)
1: [ ] (White Balance) button (P95)
4: [ ] (Drive Mode) (P98)
2: [ ] (Auto Focus Mode) button (P76)
24
Control dial (P40)
25
[Fn3] button (P50, 70)/
[ ] (Delete) button (P170)/
[ ] (Cancel) button (P47)
26
[(] (Playback) button (P163)
27
[MENU/SET] button (P40, 46)
28
[DISP.] button (P40)
29
[LVF] button (P35)/[Fn5] button (P50)
30
Charging lamp (P21)/
WIRELESS connection lamp (P228)
31
[Fn4] button (P50, 111)
32
Motion picture button (P156)
33
[AF/AE LOCK] button (P90)
34
Speaker (P34, 202)
35
Touch screen (P43)/Monitor (P284)
36
Tripod mount (P304)
• It may not be possible to attach and securely
fasten a tripod with a screw length of 5.5 mm
(0.22 inch) or more to the camera. Doing so
may also damage the camera.
37
DC coupler cover (P283)
• When using an AC adaptor, ensure that the
Panasonic DC coupler (optional) and AC
adaptor (optional) are used.
38
Release lever (P20)
39
Card/Battery door (P20)
40
[HDMI] socket (P272)
41
[USB/CHARGE] socket (P277, 280)
