1. Before Use

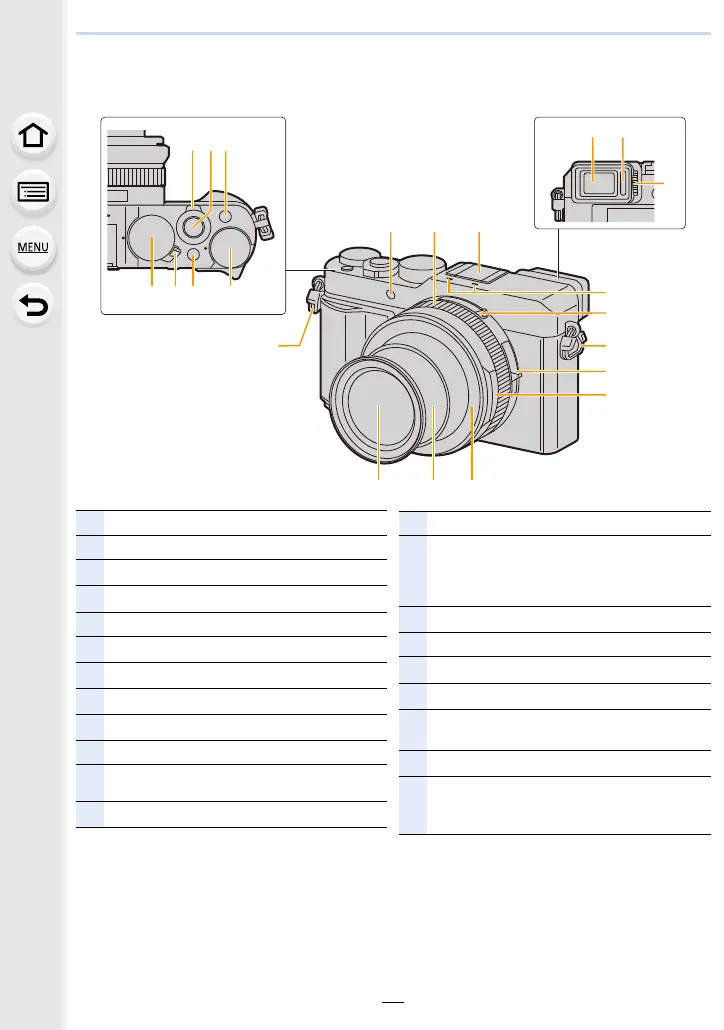

Names and Functions of Components
12
4 75 6
3
8 9
10
1311 12
15
14
17
16
18
19 20 21
16
1
Zoom lever (P36)
2
Shutter button (P37)
3
[Fn1] button (P50, 101)
4
Shutter speed dial (P38, 64)
5
Camera ON/OFF switch (P32)
6
[iA] button (P39, 57)
7
Exposure compensation dial (P91)
8
Viewfinder (P35)
9
Eye sensor (P35)
10
Dioptre adjustment dial (P35)
11
Self-timer indicator (P116)/
AF Assist Lamp (P34, 187)
12
Control ring (P55)
13
Hot shoe (Hot shoe cover) (P147)
14
Stereo microphone (P34, 162)
• Be careful not to cover the microphone with
your finger. Doing so may make sound difficult
to record.
15
Aspect ratio selector switch (P122)
16
Shoulder strap eyelet (P17)
17
Focus selector switch (P73, 87, 88)
18
Aperture ring (P38, 64)
19
Lens
(Filter diameter: ‰43 mm)
20
Lens barrel
21
Lens front ring
• To attach the auto lens cap (optional), remove
the lens front ring.
To Next Page
