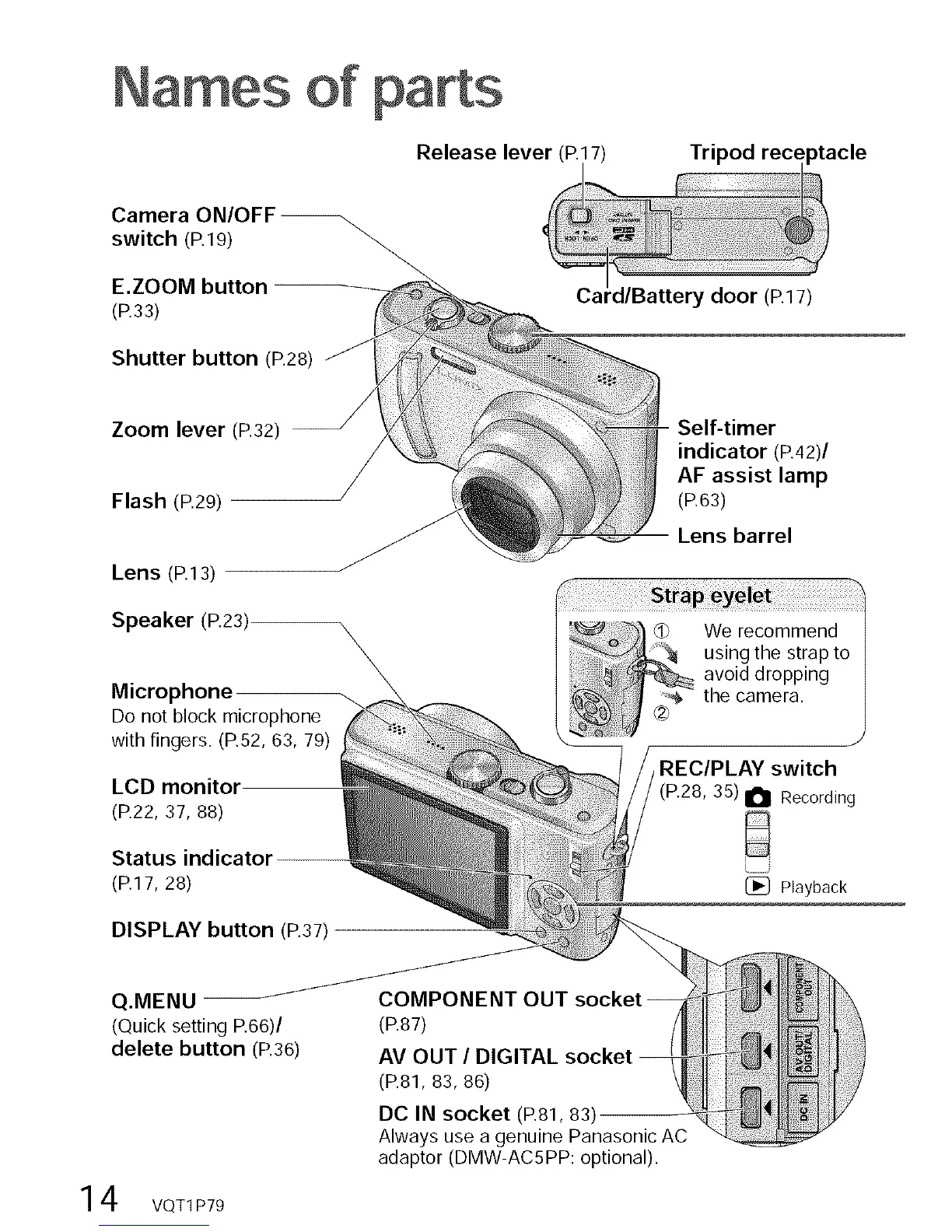

Panasonic LUMIX DMC-TZ4 - Names of Parts

Na ÷s
Camera ON/OFF
switch (P.19)
E.ZOOM button
(P.33)
Shutter button (P.28)
Zoom lever (P.32) _/!
Flash (P.29)
Lens (P,13) --
Speaker (P.23)
Microphone
Do not block microphone
with fingers. (R52, 63, 79)
LCD monitor
(P.22, 37, 88)
Status ind
(R17, 28)
DISPLAY button (P,37)
Self-timer
indicator (R42)/
AF assist lamp
(P,63)
Lens barrel
LI_ We recommend
using the strap to
avoid dropping
the camera.
@
REC/PLAY switch
(P.2g, 35) If_ Recording
(_ Playback
Q.MENU
(Quick setting P,66)/
delete button (P.36)
COMPONENT OUT
(P.87)
AV OUT / DIGITAL socket
(P.81, 83, 86)
DC IN socket (P.gl, 83)
Always use a genuine Panasonic AC
adaptor (DMW-ACSPP: optional),
4 VQT1 P79
