Panasonic PT-RZ570

Chapter 7 Appendix — Technical information
ENGLISH - 165

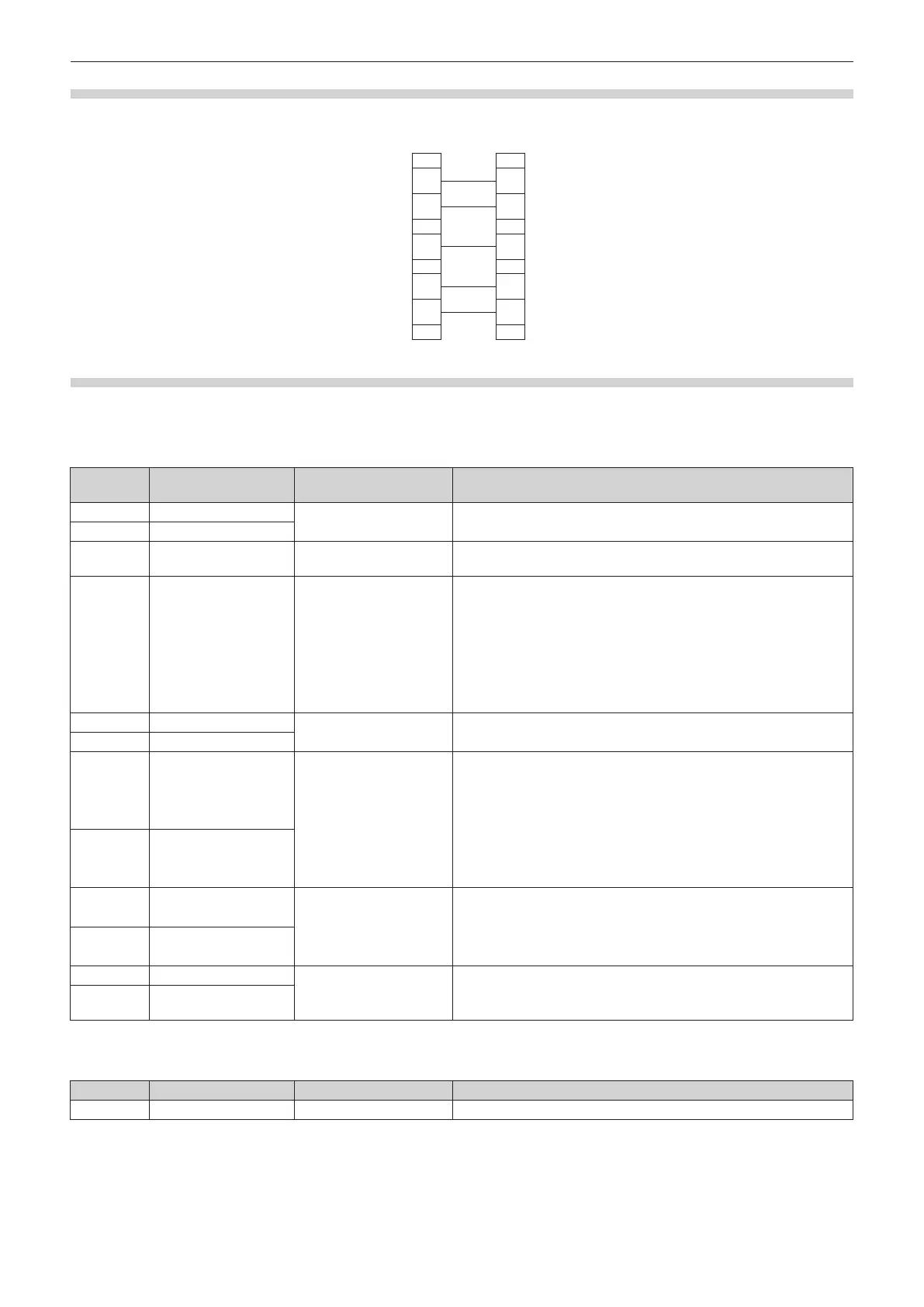

Cable specication
1 NC NC 1
2 2
3 3
4 NC NC 4
5 5
6 NC NC 6
7 7
8 8
9 NC NC 9
When connected to a computer
Projector
(<SERIAL IN> terminal)
Computer
(DTE specifications)
Control command
The following table lists the commands that can be used to control the projector using a computer.
r Projector control command
Command Details
Parameter/response
string
Remark (parameter)
PON Power on
― To check if the power is on, use the “Power query” command.
POF Power standby
QPW Power query
000
001
STANDBY
Power on
IIS
Switching the input
signal
VID VIDEO
RG1 COMPUTER1
RG2 COMPUTER2
DVI DVI-D
HD1 HDMI1
HD2 HDMI2
DL1 DIGITAL LINK
OSH Shutter control 0 OPEN
QSH Shutter status query 1 CLOSE
VSE Aspect ratio switch
0 DEFAULT/VID AUTO/AUTO
1 4:3
2 16:9
5 THROUGH
QSE
Aspect ratio settings
query
6 HV FIT
9 H FIT
10 V FIT
OPP P IN P execution
0 OFF
1 USER1
QPP P IN P setting query
2 USER2
3 USER3
OCS Sub memory switch
01 - 96 Sub memory number
QSB
Sub memory status
query
r Projector control command (with sub command)
Command Sub command Details Remark
VXX RYCI1 COMPUTER1 input setting +00000 = RGB/YP
B
P
R
, +00001 = Y/C
