Panasonic PT-RZ570

Chapter 4 Settings — [ADVANCED MENU] menu
74 - ENGLISH

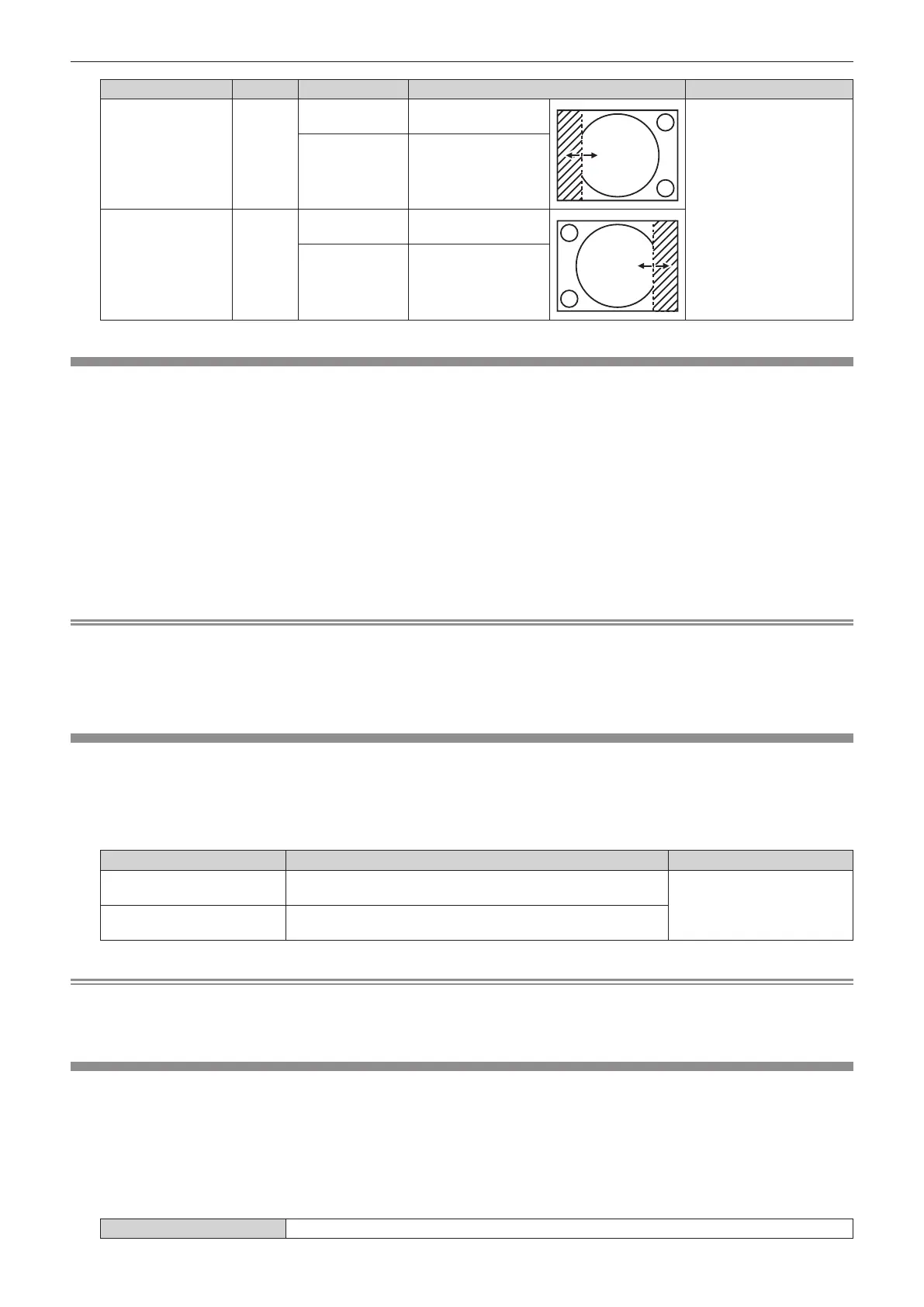

Blanking correction Item Operation Adjustment Range of adjustment
Left side of the
screen
[LEFT]
Press w.
The blanking zone
moves to the right.
Left and right 0 - 959
Press q.
The blanking zone
moves to the left.
Right side of the
screen
[RIGHT]
Press q.
The blanking zone
moves to the right.
Press w.
The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust the image to achieve an optimal image when there is a ickering image or smeared outlines.
1) Press as to select [INPUT RESOLUTION].
2) Press the <ENTER> button.
f The [INPUT RESOLUTION] screen is displayed.
3) Press as to select [TOTAL DOTS], [DISPLAY DOTS], [TOTAL LINES], or [DISPLAY LINES], and press
qw to adjust each item.
f Values corresponding to the signal being input are displayed automatically for each item. Increase or
decrease the displayed values and adjust to the optimal point while viewing the screen if there are vertical
stripes or sections are missing from the screen.
Note
f Previously mentioned vertical banding will not occur with all white signal input.
f Image may be disrupted during automatic adjustment, but this is not a malfunction.
f [INPUT RESOLUTION] can be adjusted only when an RGB signal is input to the <COMPUTER 1 IN> terminal or the <COMPUTER 2 IN/1
OUT> terminal.
f Adjustment may not be possible depending on the signal.
[CLAMP POSITION]
You can adjust the optimal point when the black part of the image is blunt or it has turned green.
1) Press as to select [CLAMP POSITION].
2) Press qw to adjust.
Status Rough guide for optimal value Range of adjustment
The black part is blunt.
The point where bluntness of the black part improves the most is
the optimal value.
1 - 255
The black part is green.
The point where the green part becomes black, and the bluntness
has improved is the optimal value.
Note
f [CLAMP POSITION] can be adjusted only when a signal is input to the <COMPUTER 1 IN> terminal or the <COMPUTER 2 IN/1 OUT>
terminal.
f Adjustment may not be possible depending on the signal.
[EDGE BLENDING]
The edge blending function allows multiple images to be seamlessly overlapped by using the inclination of the
brightness at the overlapped area.
1) Press as to select [EDGE BLENDING].
2) Press qw to switch the item.
f The items will switch each time you press the button.
[OFF] Sets the edge blending function to off.
