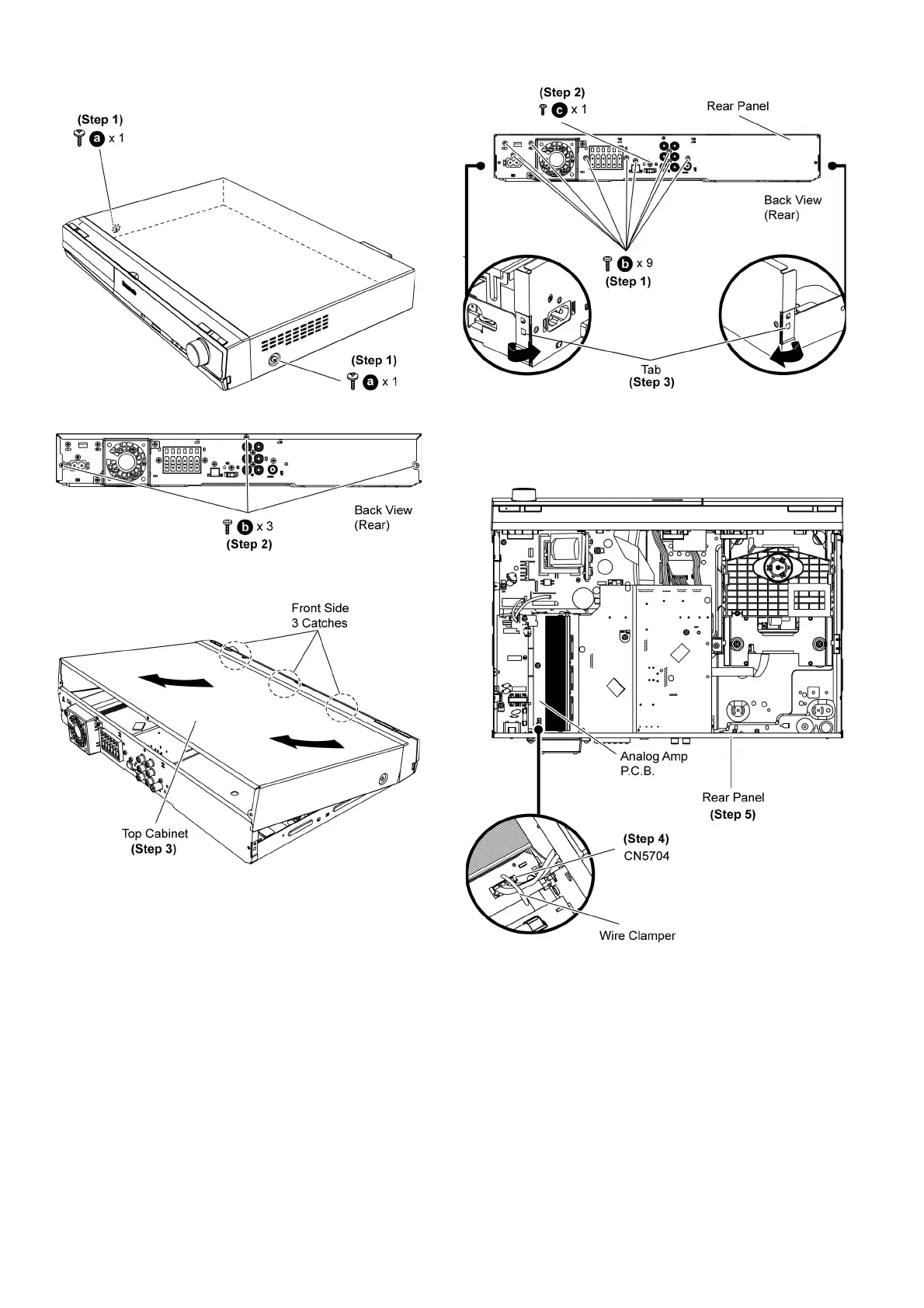

9.3. Disassembly of Top Cabinet
Step 1 Remove 2 screws at the sides of the top cabinet
Step 2 Remove 3 screws at the rear of the top cabinet.
Step 3 Lift up the back part of the top cabinet and remove it in
the direction of arrows.
9.4. Disassembly of Rear Panel
• Follow (Step 1) to (Step 3) of Item 9.3.
Step 1 Remove 9 screws at the rear panel.
Step 2 Remove 1 screw at the rear panel.
Step 3 Release the tab of each side of the rear panel in the
direction of arrow.
Step 4 Twist the wire clamper & detach the fan unit connector
(CN5704) on Analog Amp P.C.B.
Step 5 Remove the rear panel.
9.5. Disassembly of DVD Mecha-
nism Unit (DLS6)
• Follow (Step 1) to (Step 3) of Item 9.3.
