Panasonic SA-PT170PH - Waveform Table (3;4)

84

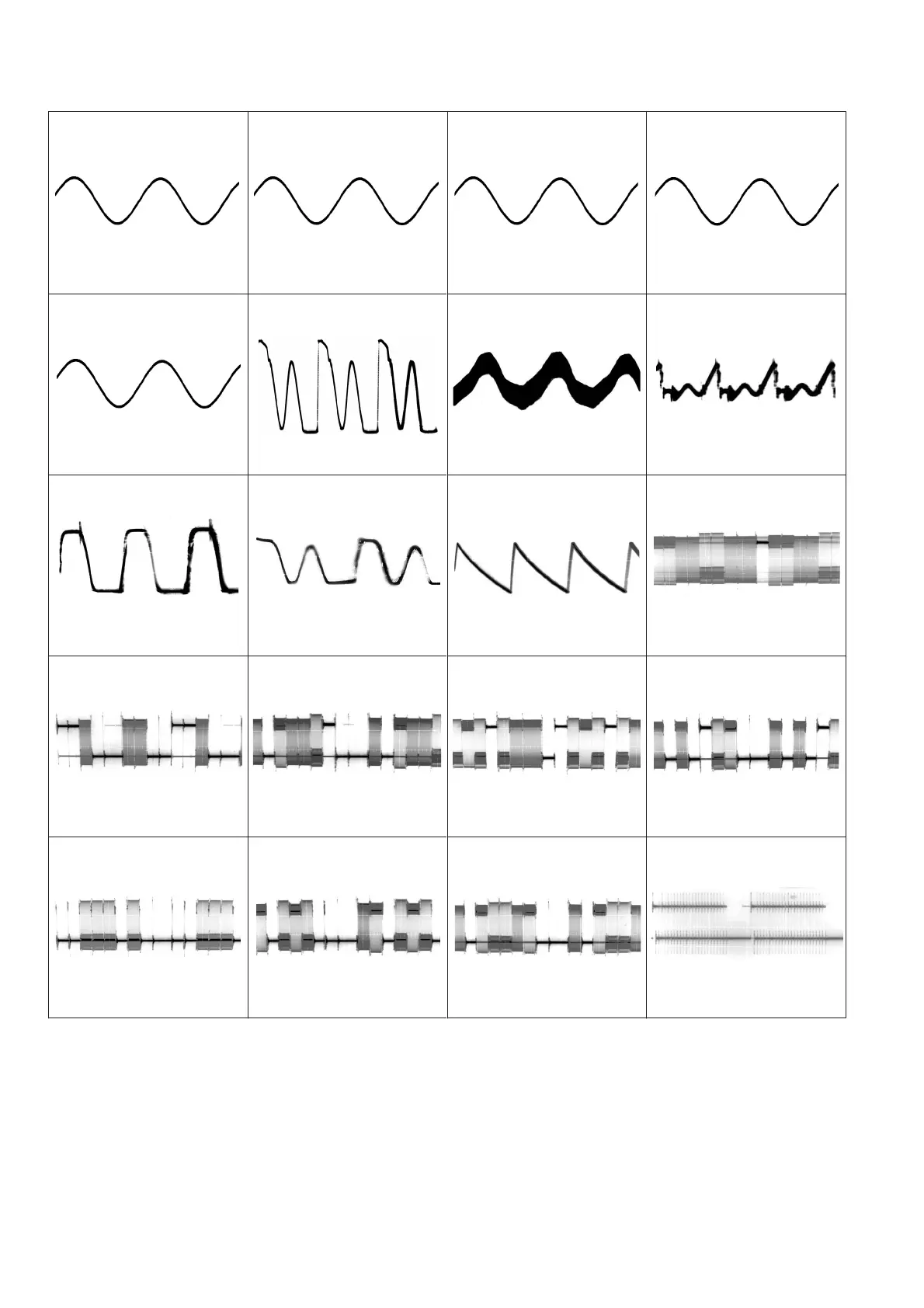

11.13. Waveform Table (3/4)
WF No. IC5701-1 (PLAY)
300Vp-p(2usec/div)
WF No. IC5300-2,4 (PLAY)
0.1Vp-p(500usec/div)
WF No. IC5200-6,8 (PLAY)
2.1Vp-p(200usec/div)
WF No. IC5200-10,12 (PLAY)
0.25Vp-p(200usec/div)
WF No. IC5300-6,8 (PLAY)
2.1Vp-p(200usec/div)
WF No. IC5300-10,12 (PLAY)
0.25Vp-p(200usec/div)
WF No. IC5701-4 (PLAY)
0.62Vp-p(5msec/div)
WF No. IC5701-5,6 (PLAY)
0.25Vp-p(5usec/div)
WF No. IC5701-7 (PLAY)
3.2Vp-p(2usec/div)
WF No. IC5799-1,2,3,4 (PLAY)
130Vp-p(2usec/div)
WF No. IC6901-5 (PLAY)
2.15Vp-p(2usec/div)
WF No. IC8001-9 (PLAY)
6.4Vp-p(5usec/div)
WF No. IC8001-10 (PLAY)
6.4Vp-p(5usec/div)
WF No. IC8001-11 (PLAY)
6Vp-p(5usec/div)
WF No. IC8001-12 (PLAY)
6Vp-p(5usec/div)
WF No. IC8001-13 (PLAY)
6.4Vp-p(5usec/div)
WF No. IC8001-59 (PLAY)
2.4Vp-p(2usec/div)
WF No. IC8001-14 (PLAY)
6.4Vp-p(5usec/div)
WF No. IC8001-17 (PLAY)
6Vp-p(5usec/div)
WF No. IC8001-18 (PLAY)
6.4Vp-p(5usec/div)
