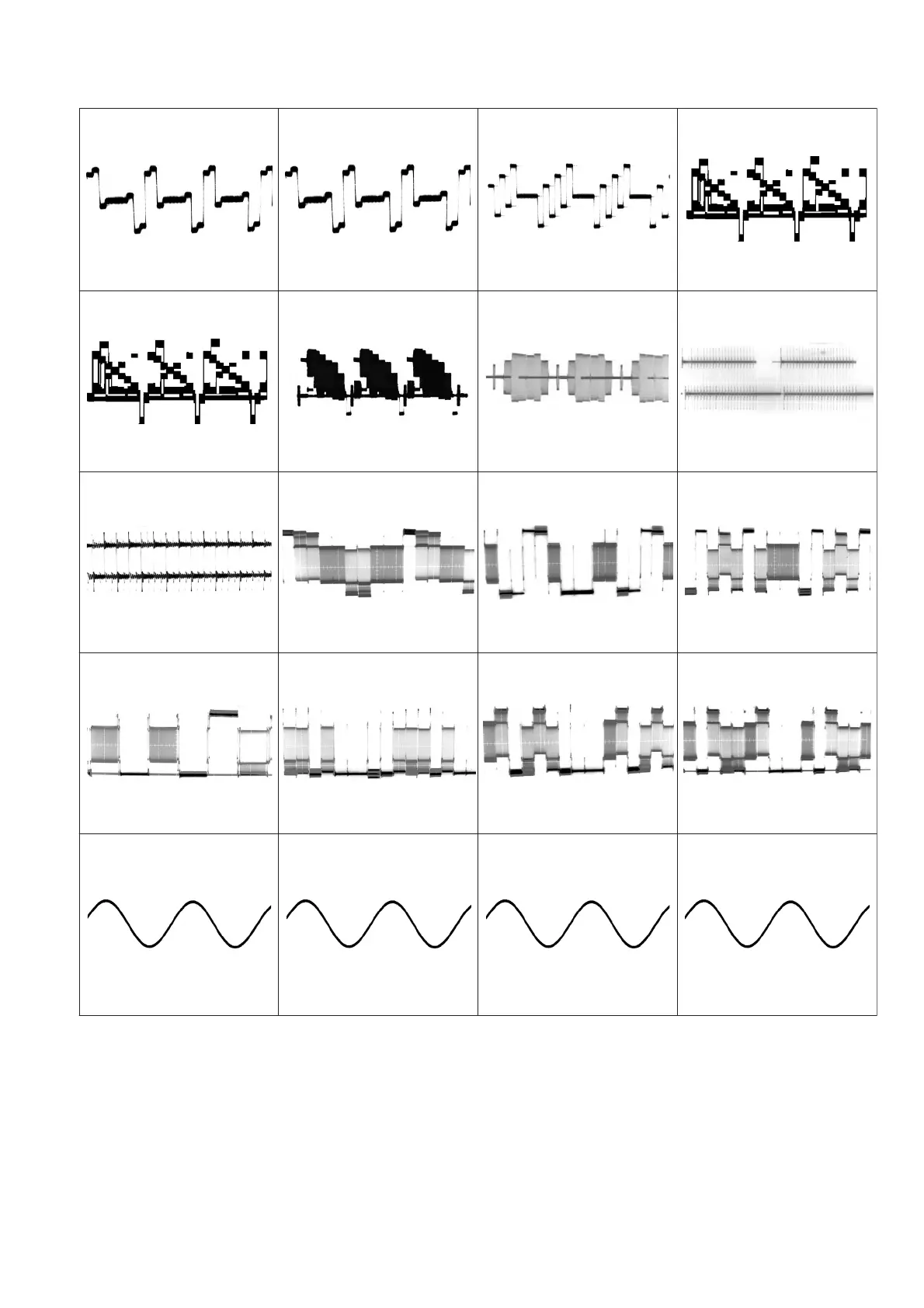

11.12. Waveform Table (2/4)
WF No. IC2801-32 (PLAY)
1.25Vp-p(20usec/div)
WF No. IC2801-21 (PLAY)
0.9Vp-p(50usec/div)
WF No. IC2801-15 (PLAY)
0.46Vp-p(50usec/div)
WF No. IC2801-18 (PLAY)
0.95Vp-p(50usec/div)
WF No. IC2801-24 (PLAY)
2.1Vp-p(50usec/div)
WF No. IC2801-27 (PLAY)
2.2Vp-p(50usec/div)
WF No. IC2801-30 (PLAY)
2.1Vp-p(50usec/div)
WF No. IC3901-35,36,37,
38 (PLAY)
4.8Vp-p(2usec/div)
WF No. IC3901-43 (PLAY)
4.4Vp-p(500nsec/div)
WF No. IC3901-88,89 (PLAY)
3.8Vp-p(5usec/div)
WF No. IC3901-94 (PLAY)
3.8Vp-p(5usec/div)
WF No. IC3901-95 (PLAY)
3.8Vp-p(5usec/div)
WF No. IC3901-90 (PLAY)
3.6Vp-p(5usec/div)
WF No. IC3901-92 (PLAY)
3.6Vp-p(2usec/div)
WF No. IC3901-93 (PLAY)
3.6Vp-p(5usec/div)
WF No. IC3901-87 (PLAY)
3.6Vp-p(5usec/div)
WF No. IC5100-2,4 (PLAY)
0.1Vp-p(500usec/div)
WF No. IC5100-6,8 (PLAY)
2.1Vp-p(200usec/div)
WF No. IC5100-10,12 (PLAY)
0.25Vp-p(200usec/div)
WF No. IC5200-2,4 (PLAY)
0.1Vp-p(500usec/div)
