Caution: During assembling, ensure the P.C.B. is seated
properly at the locators.
9.13. Disassembly of Analog Amp
P.C.B.
• Follow (Step 1) to (Step 3) of Item 9.3.
• Follow (Step 1) to (Step 3) of Item 9.6.
• Follow (Step 7) to (Step 10) of Item 9.6.

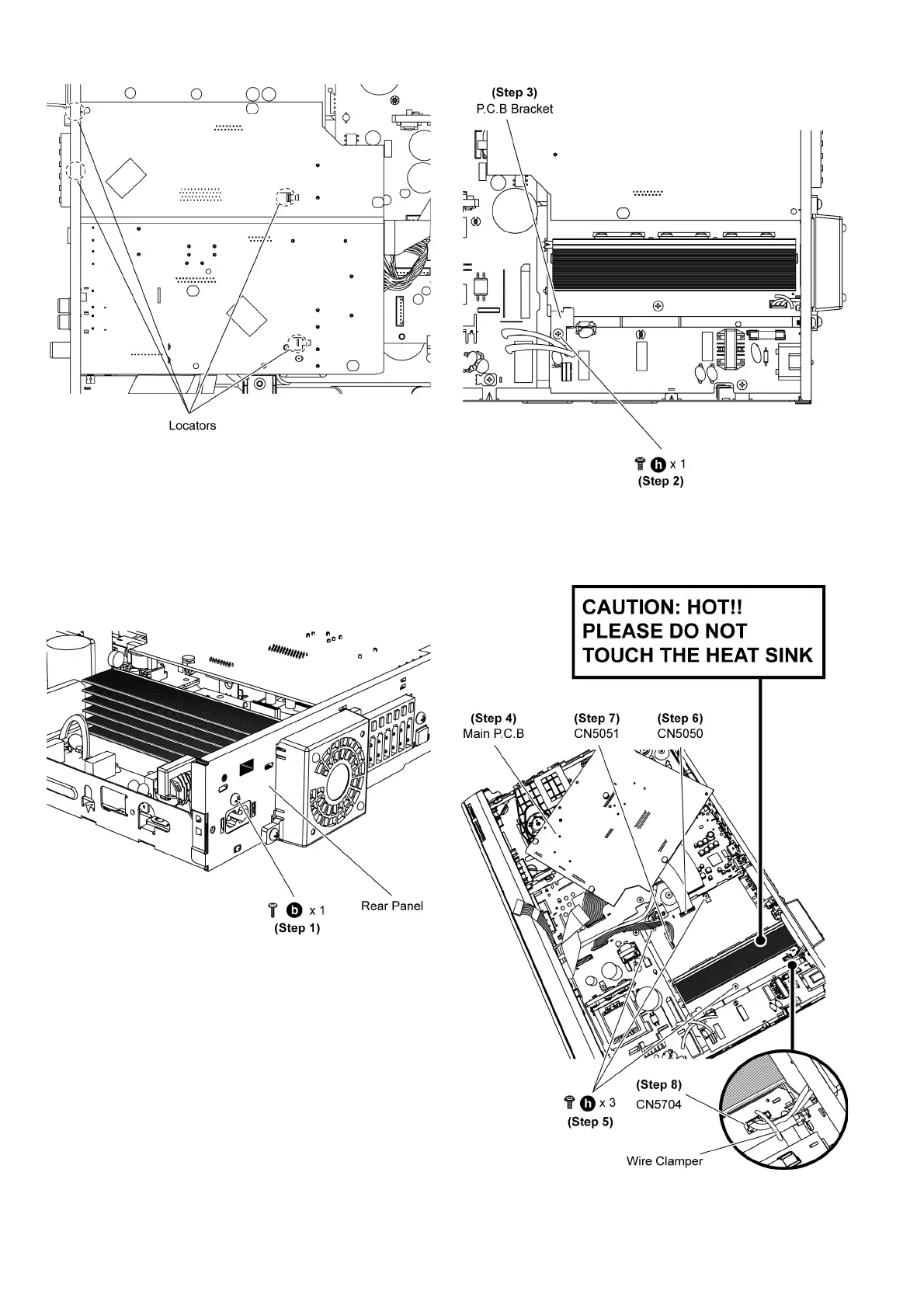

Step 1 Remove 1 screw at the rear panel.
Step 2 Remove 1 screw at the P.C.B bracket.
Step 3 Remove P.C.B bracket.
Caution: Keep the P.C.B. bracket in safe place. Avoid dent-
ing it. Place it back during assembling.
Step 4 Move aside Main P.C.B. and position it according to the
diagram shown.
To Next Page
