Panasonic SA-PT170PH - Waveform Table (4;4)

85

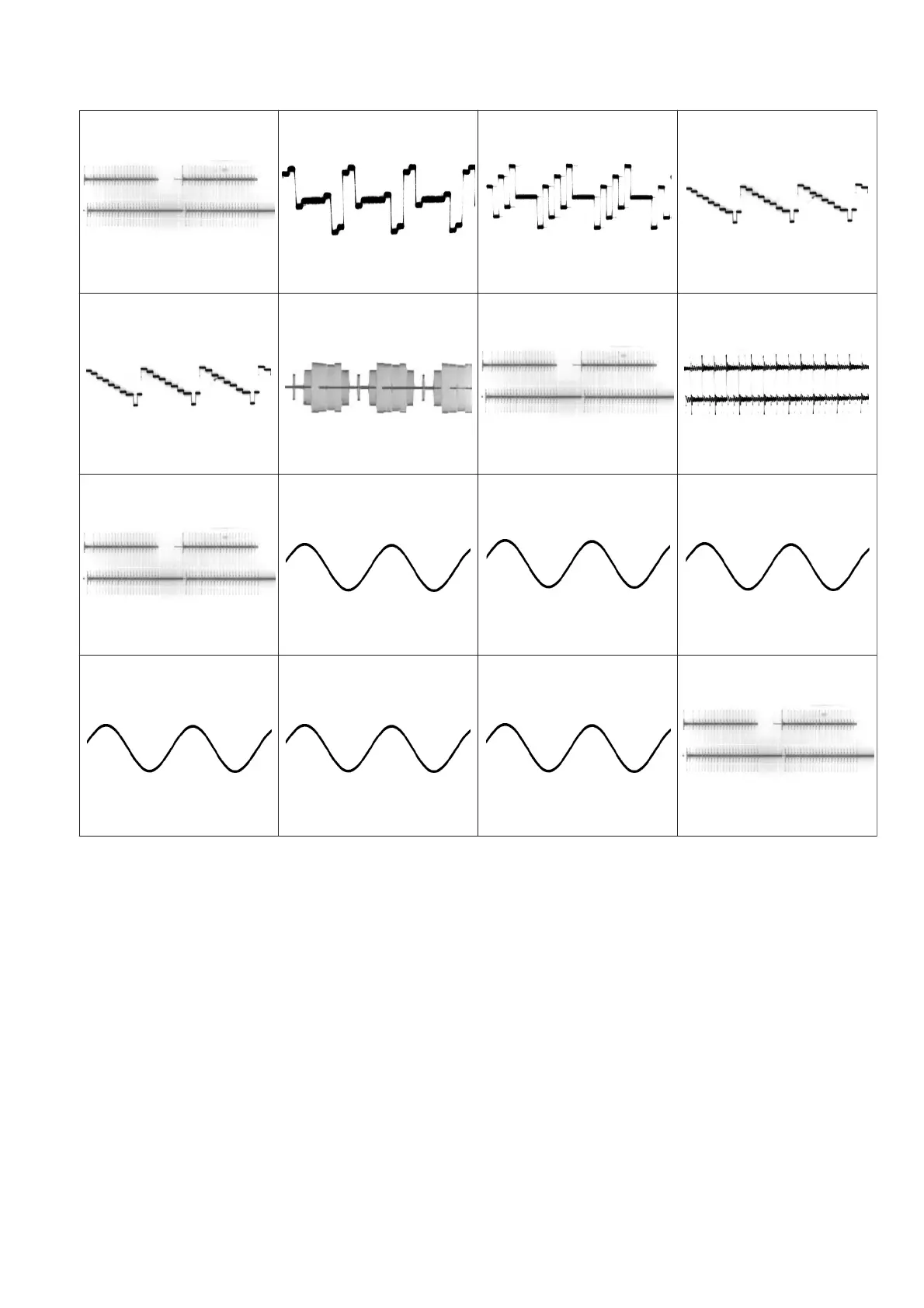

11.14. Waveform Table (4/4)
WF No. IC8001-62,63,64 (PLAY)
5.6Vp-p(2usec/div)
WF No. IC8001-129 (PLAY)
0.72Vp-p(20usec/div)
WF No. IC8001-130 (PLAY)
0.72Vp-p(20usec/div)
WF No. IC8001-131 (PLAY)
0.42Vp-p(20usec/div)
WF No. IC8001-138 (PLAY)
1.05Vp-p(20usec/div)
WF No. IC8001-139 (PLAY)
0.9Vp-p(20usec/div)
WF No. IC8001-151 (PLAY)
6Vp-p(2usec/div)
WF No. IC8421-3,9,10,11 (PLAY)
4.8Vp-p(2usec/div)
WF No. IC8001-152 (PLAY)
6.4Vp-p(500nsec/div)
WF No. IC8421-17 (PLAY)
WF No. IC8421-18,19,20,21,
22 (PLAY)
0.092Vp-p(2msec/div)
WF No. IC8421-24 (PLAY)
2.3Vp-p(500usec/div)
WF No. IC8421-25 (PLAY)
0.24Vp-p(500usec/div)
WF No. IC8422-1 (PLAY)
1.5Vp-p(500usec/div)
WF No. IC8422-2 (PLAY)
0.15Vp-p(500usec/div)
WF No. IC8422-9 (PLAY)
7.6Vp-p(2usec/div)
0.76Vp-p(500usec/div)
