Caution 2: During detaching Main P.C.B from the rear
panel, please be careful of 2 catches at the rear panel.

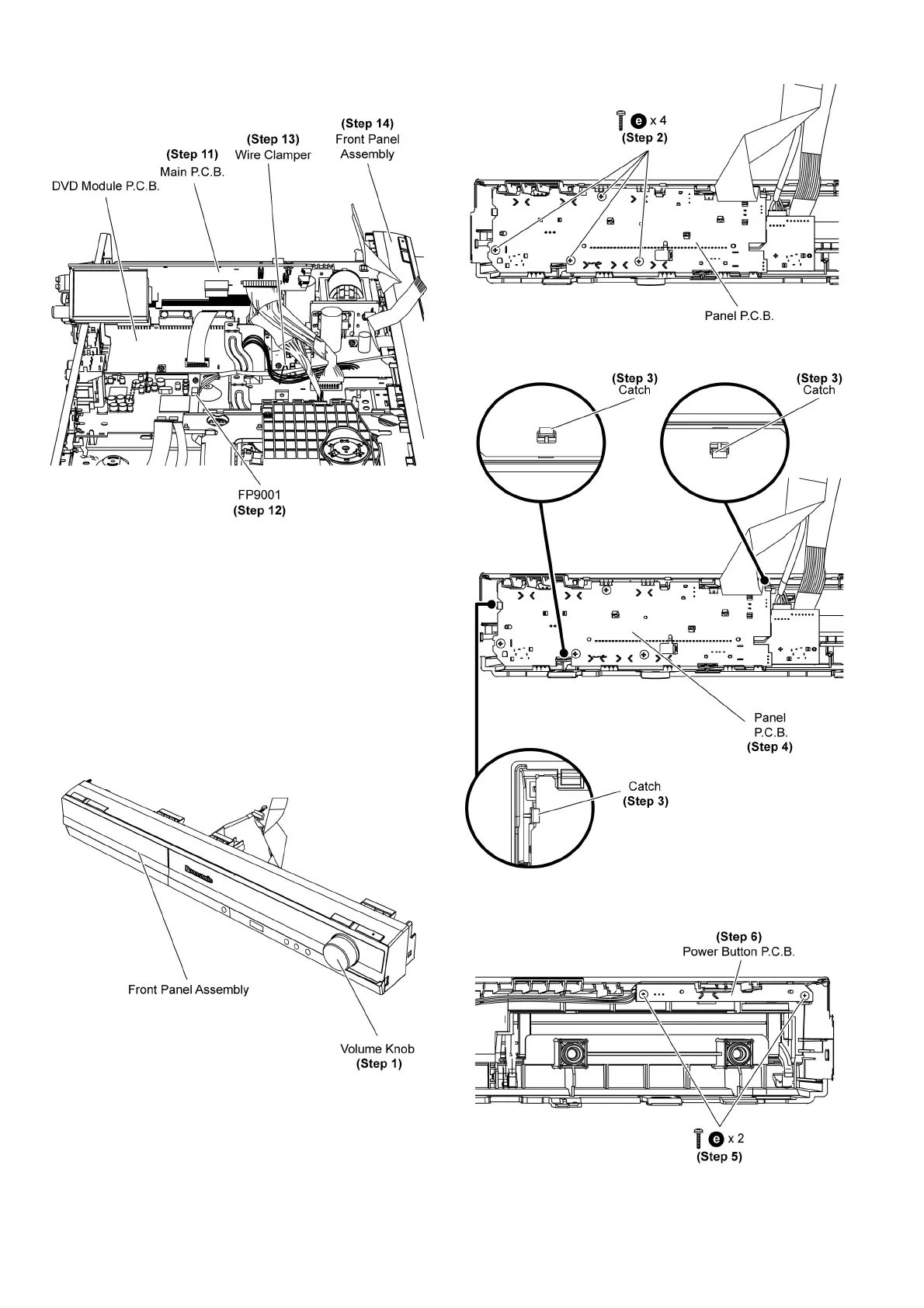

Step 11 Lift up the Main P.C.B. according to the diagram
shown.
Step 12 Detach 5P cable at the connector (FP9001) on DVD
Module P.C.B.
Step 13 Twist the wire clamper to release 5P cable.
Step 14 Remove the front panel assembly.
9.7. Disassembly of Panel, Power
Button P.C.B.
• Follow (Step 1) to (Step 3) of Item 9.3.
• Follow (Step 1) to (Step 13) of Item 9.6.
Step 1 Remove the volume knob.
Step 2 Remove 4 screws on Panel P.C.B.
Step 3 Release 3 catches.
Step 4 Remove Panel P.C.B.
Step 5 Remove 2 screws on Power Button P.C.B.
Step 6 Remove Power Button P.C.B.
