Caution: Ensure the Regulator Diode (D5802) is tightly
screwed to the heatsink unit C.

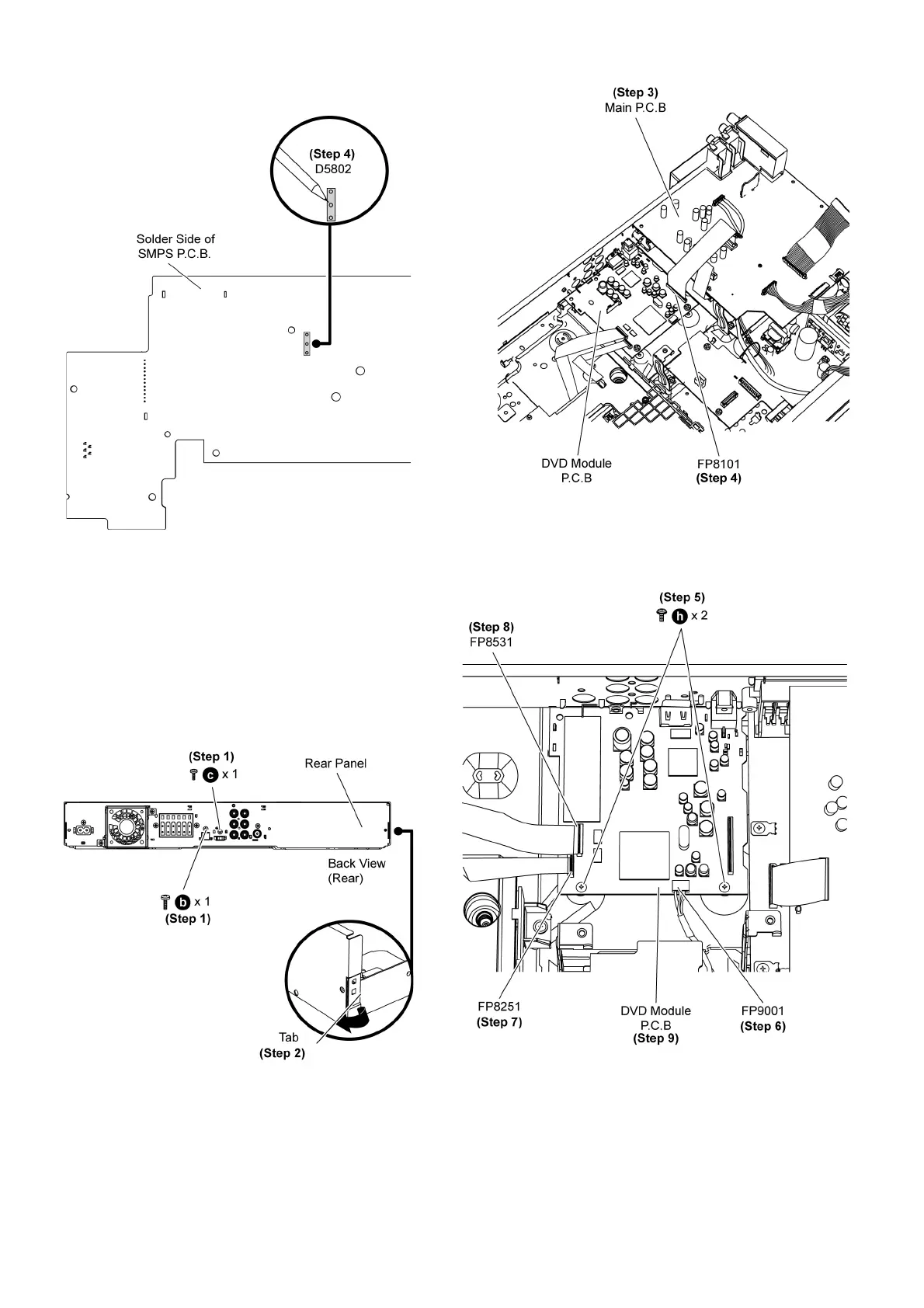

Step 4 Solder pins of the regulator diode (D5802) on the solder
side of SMPS P.C.B.
9.20. Disassembly of DVD Module
P.C.B.
• Follow (Step 1) to (Step 3) of Item 9.3.
• Follow (Step 1) to (Step 2) of Item 9.6.
• Follow (Step 7) to (Step 10) of Item 9.6.
• Follow (Step 4) to (Step 6) of Item 9.12.
Step 1 Remove 2 screws at the rear panel.
Step 2 Release the tab of the rear panel in the direction of
arrow.
Step 3 Flip the Main P.C.B. & position it according to the dia-
gram shown.
Step 4 Remove 50P FFC at the connector (FP8101) on DVD
Module P.C.B.
Step 5 Remove 2 screws on DVD Module P.C.B.
Step 6 Detach 5P cable at the connector (FP9001) on DVD
Module P.C.B.
Step 7 Detach 7P FFC at the connector (FP8251) on DVD
Module P.C.B.
Step 8 Detach 25P FFC at the connector (FP8531) on DVD
Module P.C.B.
Step 9 Remove DVD Module P.C.B.
