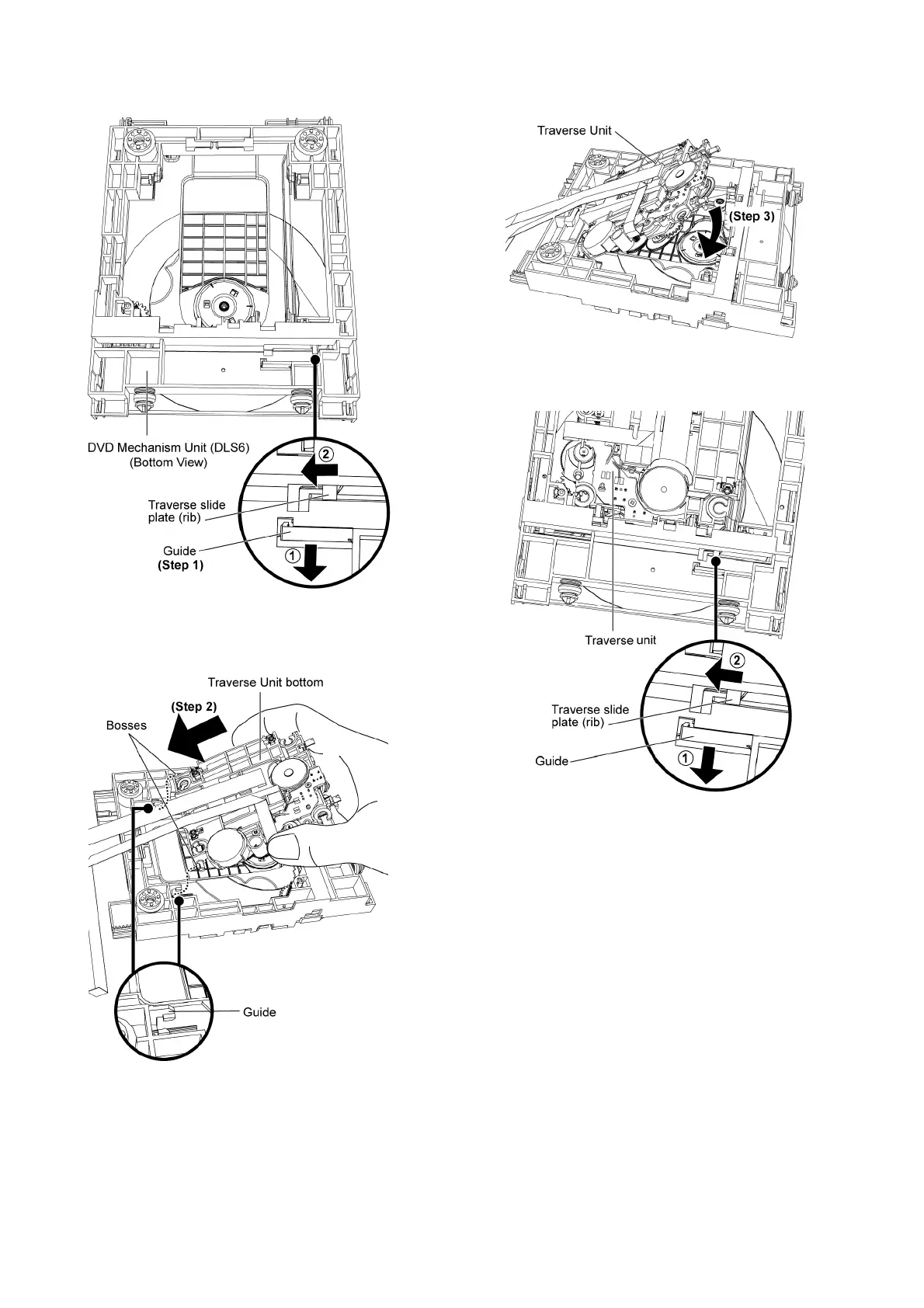

9.21.2. Assembling of Traverse Unit
Step 1 Release the guide and slide the traverse slide plate (rib)
as arrows shown.
Step 2 Slot the traverse unit approximately 45° into the mecha
chassis as arrow shown.
Note: Ensure the bosses fix exactly onto the guides.
Step 3 Place down the traverse unit as arrow shown.
Step 4 Release the guide and slide the traverse slide plate (rib)
in the direction of arrows shown to lock in the traverse unit.
