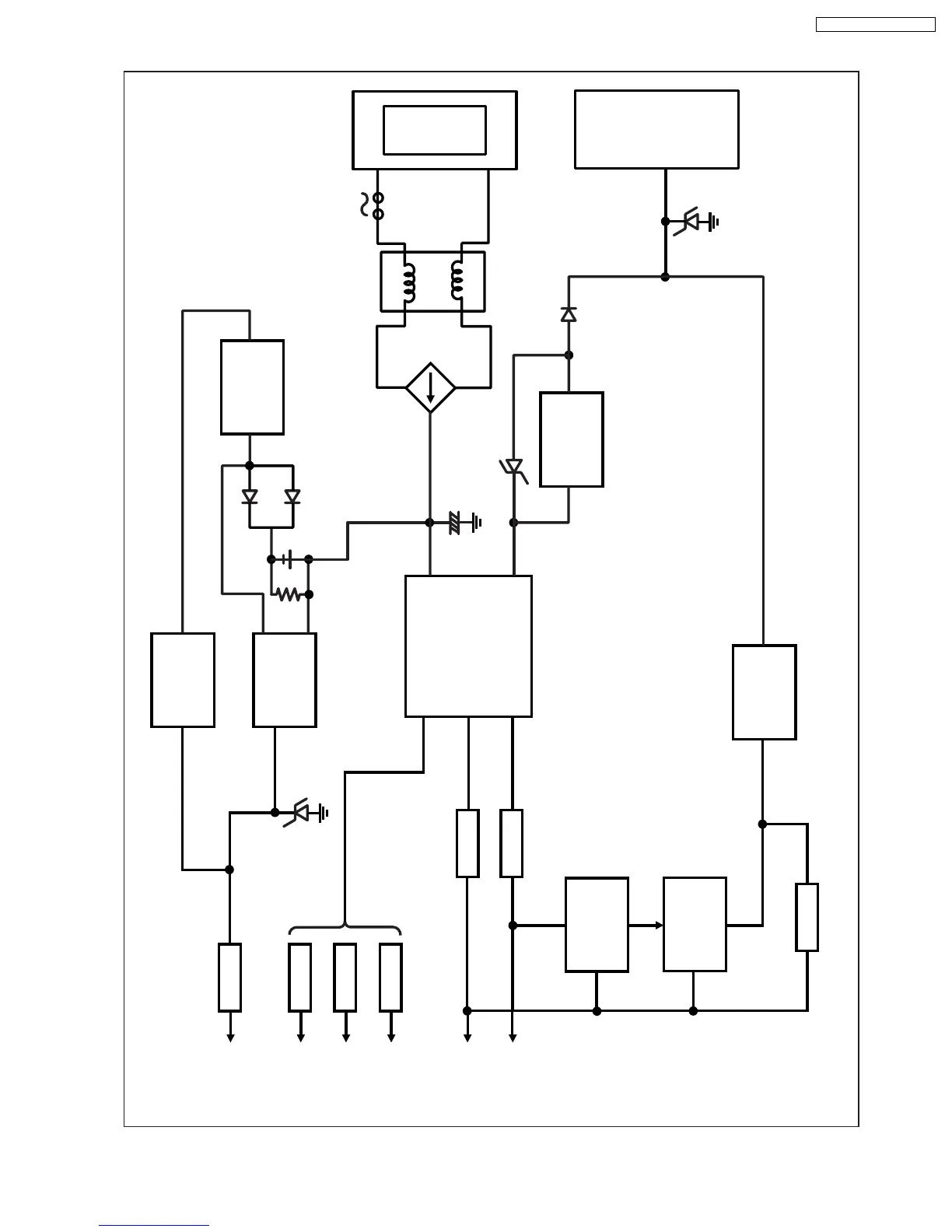

23.2. SC-PT750 SMPS Circuit Block

VOLTAGE

DIVIDER

SHUNT

REGULATOR

A

C

R

IC5801

FEEDBACK

PC5720

T5701

13V

-13V

18V

FAN_18V

+30V

D5801

+30V_SENSE

-30V

D5802

-30V_SENSE

OVP

Q5802/D5806

DC_18V

18V

T5751

IC5799

DFB

FEEDBACK

PC5799

VCC

IC5701

AC IN

+6V

SYS6V

SC-PT750

L5702

+

-

C5711

VCC

REGULATOR

D5722/D5723

D5721

F1

133

SA-PT750P / SA-PT750PC
