10.26. Disassembly of Open Lock
Gear
· Follow (Step 1) to (Step 3) of Item 10.3.
· Follow (Step 1) to (Step 3) of Item 10.4.
· Follow (Step 1) to (Step 4) of Item 10.5.
· Follow (Step 1) to (Step 4) of Item 10.7.

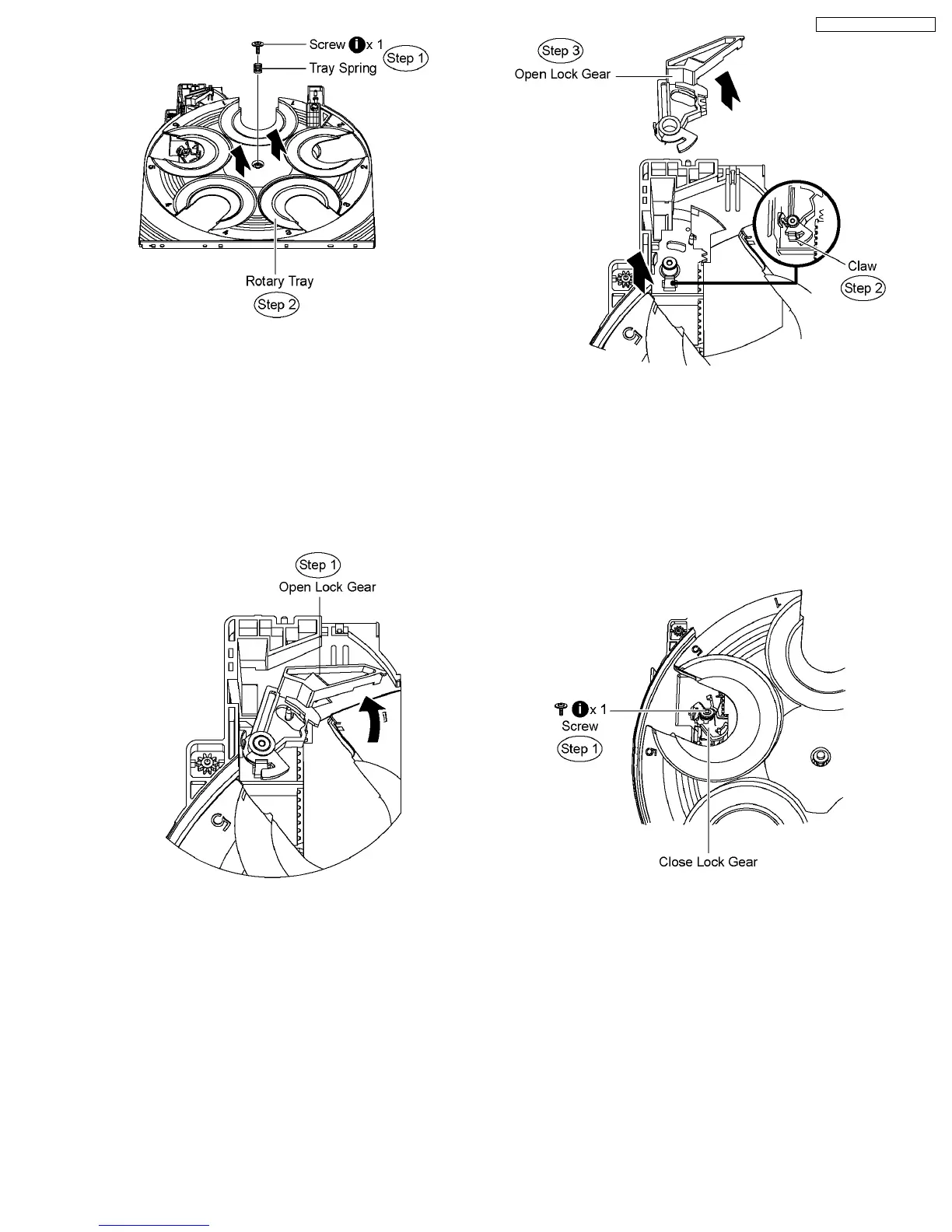

Step 1 Rotate the open lock gear in the direction of arrow.
(Anti-clockwise)
Step 2 Release the claw of the open lock gear.
Step 3 Remove the open lock gear in the direction of arrow.
10.27. Disassembly of Close Lock
Gear
· Follow (Step 1) to (Step 3) of Item 10.3.
· Follow (Step 1) to (Step 3) of Item 10.4.
· Follow (Step 1) to (Step 4) of Item 10.5.
· Follow (Step 1) to (Step 4) of Item 10.7.
Step 1 Remove 1 screw from the close lock gear.
Step 2 Hook the close lock gear spring to claw (a).
Step 3 Rotate the close lock gear in the direction of arrow (1).
Step 4 Release claw (b) and pull out the close lock gear in the
direction of arrow (2).
