Panasonic SA-PT750PC - Disassembly of Top Cabinet; Disassembly of Tray Lid Assembly; Disassembly of Front Panel

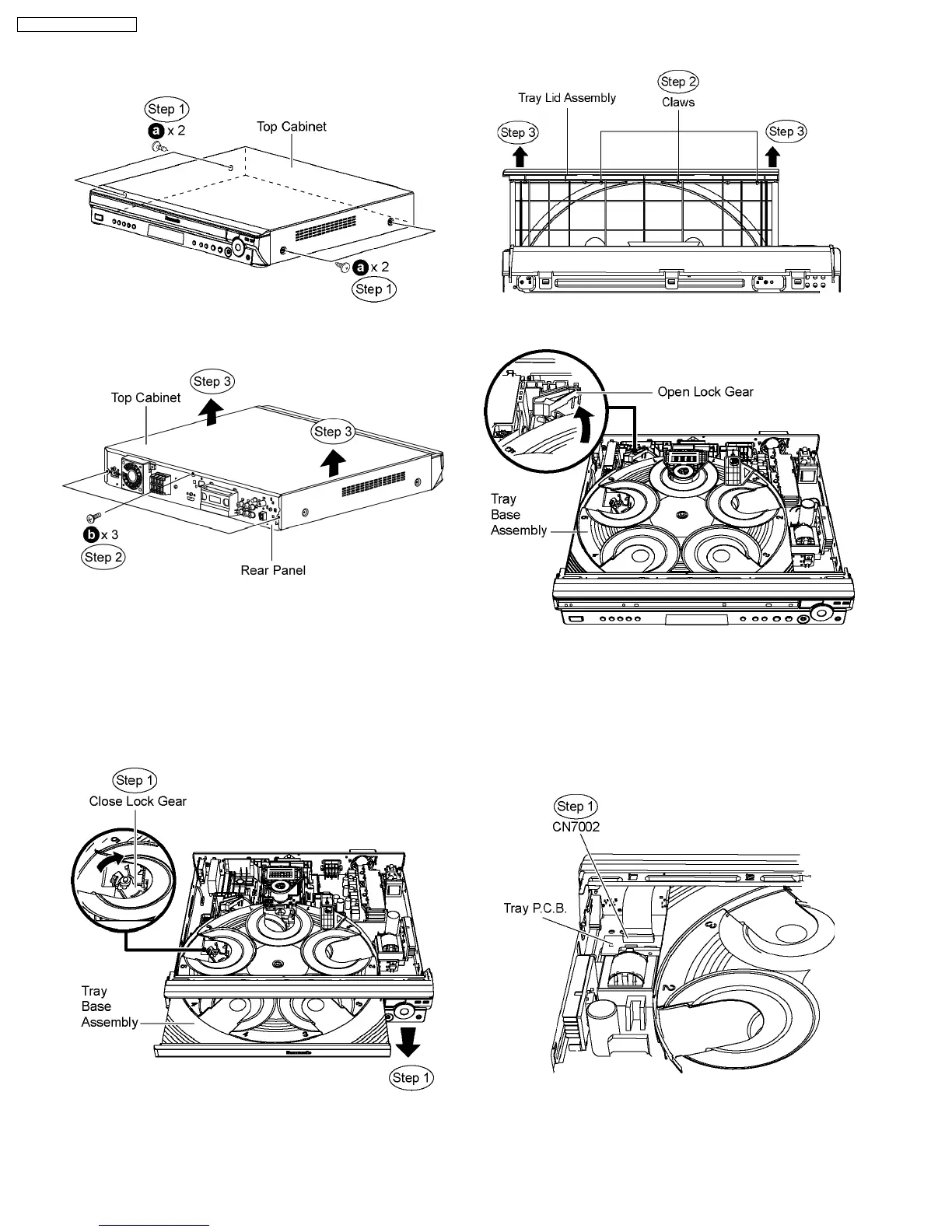

Step 1 Remove 4 screws from the top cabinet.
Step 2 Remove 3 screws from the rear panel.
Step 3 Lift up and remove the top cabinet.
10.4. Disassembly of Tray Lid
Assembly
· Follow (Step 1) to (Step 3) of Item 10.3.
Step 1 Keep the close lock gear pressed in clockwise direction,
then move the tray base assembly halfway out in the direction
of the arrow.
Step 2 Release the claws at the bottom of the tray lid
assembly.
Step 3 Remove the tray lid assembly in the direction of arrow.
Note: You can push back the tray base assembly by keeping
the open lock gear pressed in anti clockwise direction.
10.5. Disassembly of Front Panel
· Follow (Step 1) to (Step 3) of Item 10.3.
· Follow (Step 1) to (Step 3) of Item 10.4.
Step 1 Detach FFC cable from the connector (CN7002) on
Tray P.C.B.
Step 2 Release the tabs at the bottom of the front panel.
10.3. Disassembly of Top Cabinet
56
SA-PT750P / SA-PT750PC
