Panasonic SA-PT750PC - Disassembly of Regulator Diode (D5803); Disassembly of Regulator Diodes (D5801 & D5802)

Caution: Handle the heatsink unit B with caution due to its
high temperature after prolonged use. Touching it may
lead to injuries.
Note : Refer to the diagrams of SMPS P.C.B. (Item 10.18.) for
location of the parts.

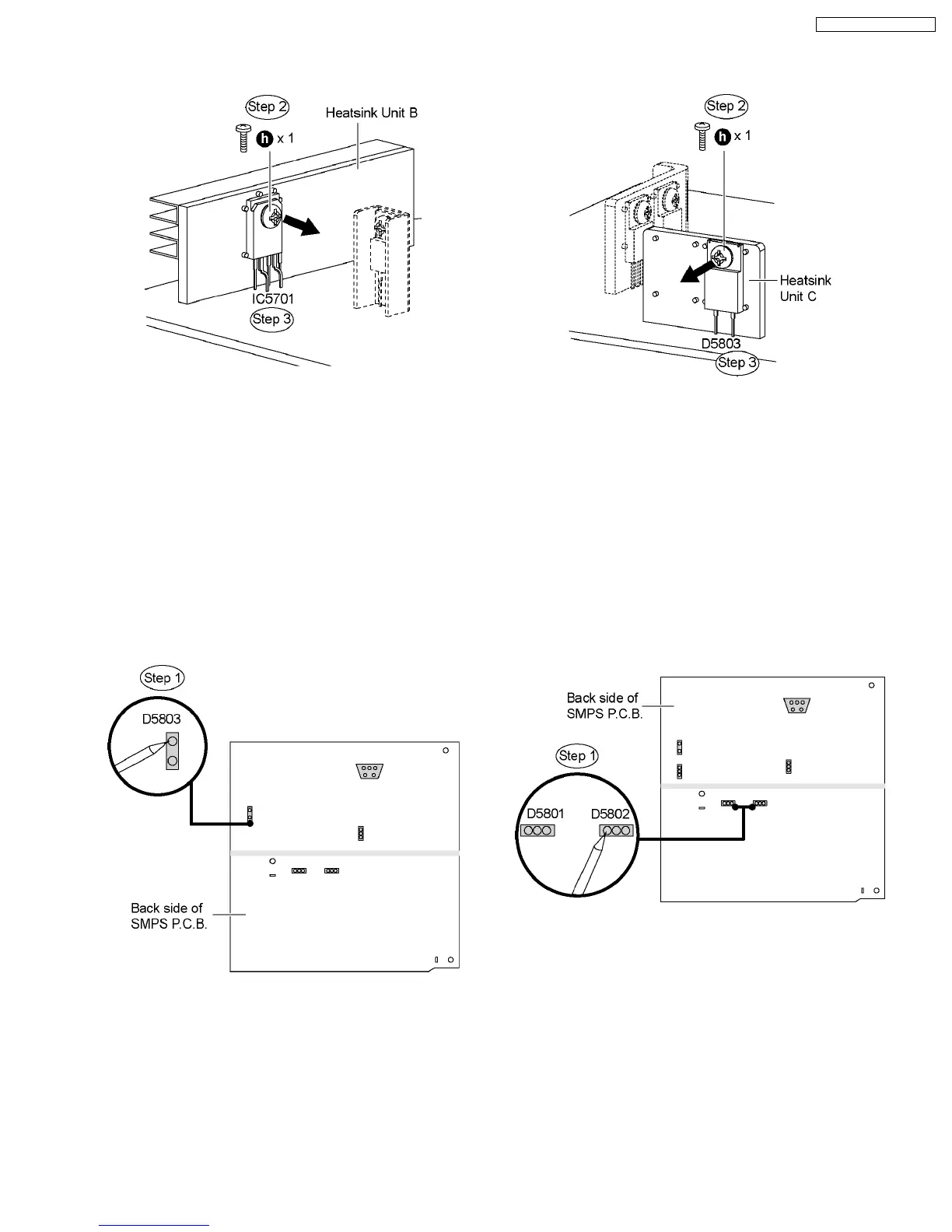

10.21. Disassembly of Regulator
Diode (D5803)
· Follow (Step 1) to (Step 3) of Item 10.3.
· Follow (Step 1) to (Step 3) of Item 10.4.
· Follow (Step 1) to (Step 4) of Item 10.5.
· Follow (Step 1) to (Step 4) of Item 10.7.
· Follow (Step 1) to (Step 7) of Item 10.18.
Step 1 Desolder pins of the regulator (D5803) on the back side
of SMPS P.C.B.
Step 2 Remove 1 screw.
Step 3 Remove the diode (D5803) from the heatsink unit C.
Caution: Handle the heatsink unit C with caution due to its
high temperature after prolonged use. Touching it may
lead to injuries.
Note : Refer to the diagrams of SMPS P.C.B. (Item 10.18.) for
location of the parts.
10.22. Disassembly of Regulator
Diodes (D5801 & D5802)
· Follow (Step 1) to (Step 3) of Item 10.3.
· Follow (Step 1) to (Step 3) of Item 10.4.
· Follow (Step 1) to (Step 4) of Item 10.5.
· Follow (Step 1) to (Step 4) of Item 10.7.
· Follow (Step 1) to (Step 7) of Item 10.18.
Step 1 Desolder pins of the regulator diodes (D5801 & D5802)
on the back side of SMPS P.C.B.
Step 2 Remove 2 screws.
Step 3 Remove the regulator diodes (D5801 & D5802) from the
heatsink unit D.
65
SA-PT750P / SA-PT750PC
