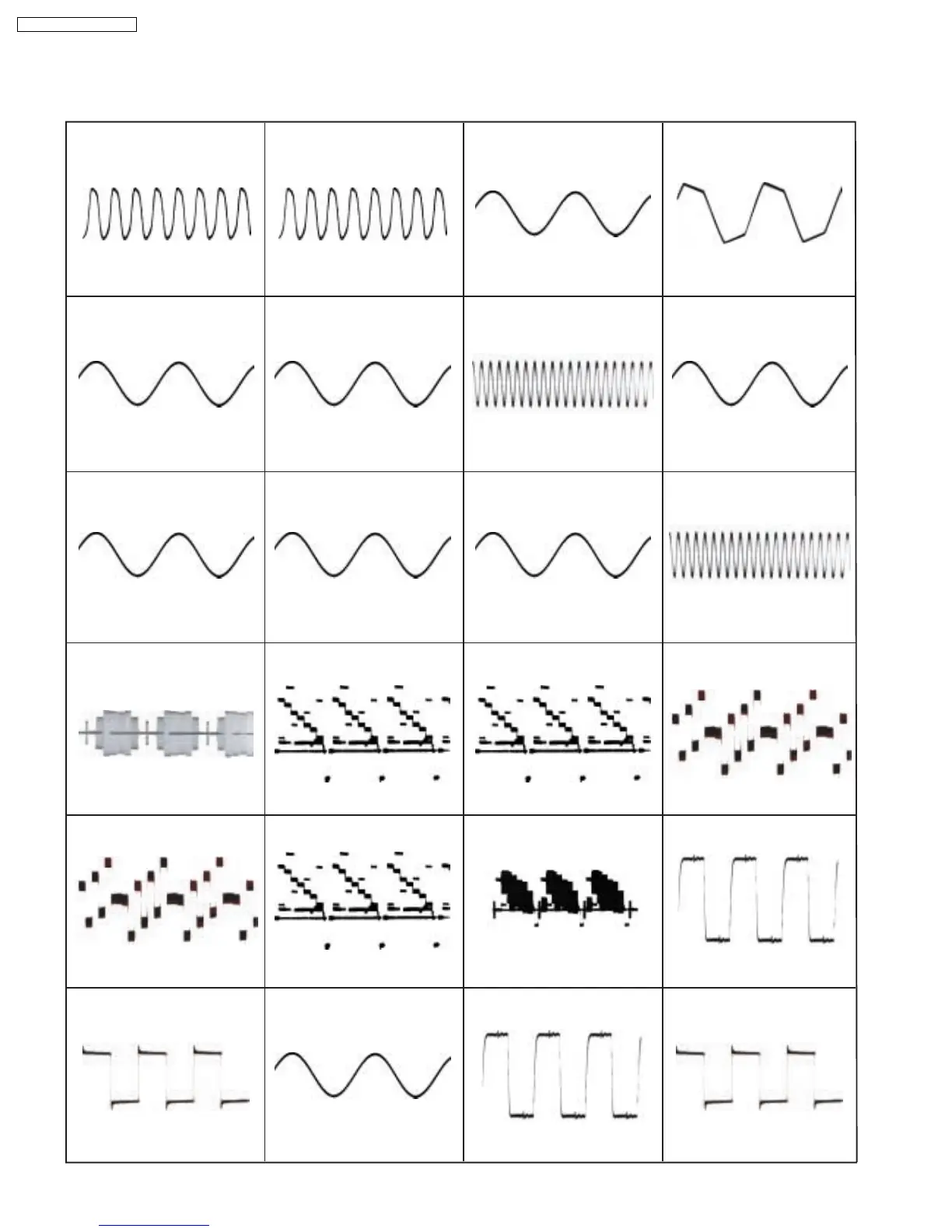

15.8. Waveform Chart
15.8.1. Waveform 1
WF No. IC2001-13 (PLAY)
5.2Vp-p(100nsec/div)
WF No. IC2001-15 (PLAY)
2.8Vp-p(100sec/div)
WF No. IC2101-14,19 (PLAY)
2.4Vp-p(200usec/div)
WF No. IC2101-15,16,17,
18 (PLAY)
8Vp-p(200usec/div)
WF No. IC2101-81,82 (PLAY)
3.2Vp-p(200usec/div)1.5Vp-p(200usec/div) 1.4Vp-p(200usec/div)
W
F No. IC2101-80 (PLAY)
WF No. IC2101-91 (PLAY) WF No. IC2101-95, 96 (PLAY)
3.2Vp-p(200usec/div)
W
F No. IC2102-1 (PLAY)
6.8Vp-p(200usec/div)
WF No. IC2102- 7(PLAY)
1.5Vp-p(200usec/div)
WF No. IC2104-1, 7 (PLAY)
4Vp-p(200usec/div)
WF No. IC2105-2 (PLAY)
0.2Vp-p(20usec/div)
WF No. IC2801-6 (PLAY)
1.2Vp-p(20usec/div)
WF No. IC2801-8,11 (PLAY)
1.3Vp-p(100nsec/div)
WF No. IC2801-4 (PLAY)
0.7Vp-p(20usec/div)
WF No. IC2801-13,15 (PLAY)
3.4Vp-p(2usec/div)
WF No. IC2801-18,21 (PLAY)
0.25Vp-p(20usec/div)
WF No. IC2801-24 (PLAY)
3.4Vp-p(20usec/div)
WF No. IC2801-30 (PLAY)
3.4Vp-p(20usec/div)
WF No. IC5000- 1 (PLAY)
5.8Vp-p(1usec/div)
WF No. IC5000-10,14 (PLAY)
76Vp-p(1usec/div)
WF No. IC5200- 1 (PLAY)
5.8Vp-p(1usec/div)
WF No. IC5200-10,14 (PLAY)
76Vp-p(1usec/div)
WF No. IC5000- 2,22 (PLAY)
0.6Vp-p(200usec/div)
