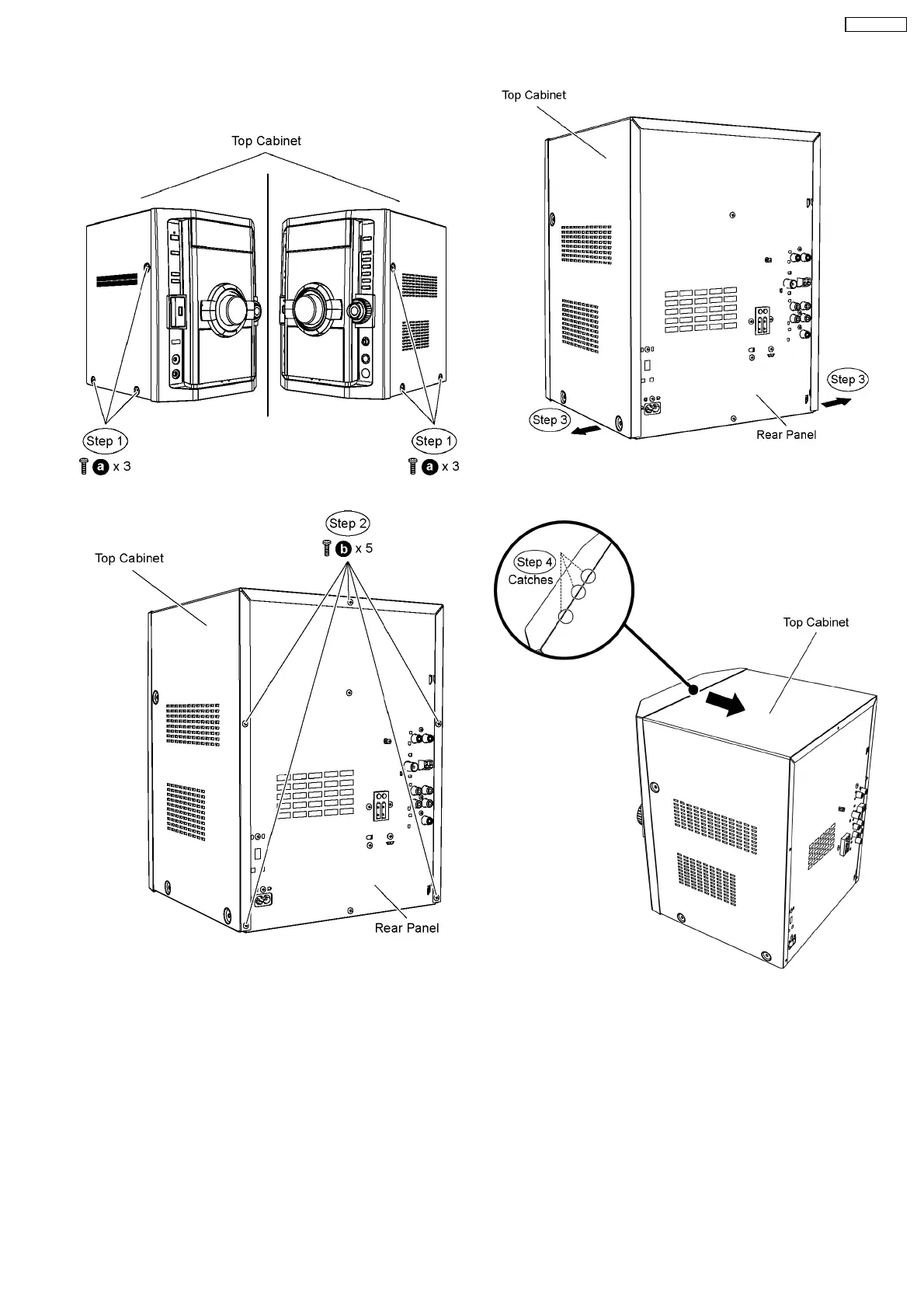

9.4. Disassembly of Top Cabinet
Step 1 Remove 3 screws on both sides of the top cabinet.
Step 2 Remove 5 screws at the rear panel.
Step 3 Lift the sides of top cabinet outwards as arrow shown.
Step 4 Push the top cabinet backwards as arrow shown to
release the catches.
Step 5 Remove the top cabinet.
