9.16. Disassembly of Deck
Mechanism P.C.B.
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 8) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 7) of Item 9.7
•
• •
• Follow the (Step 1) to (Step 3) of Item 9.13
•
• •
• Follow the (Step 1) to (Step 4) of Item 9.14

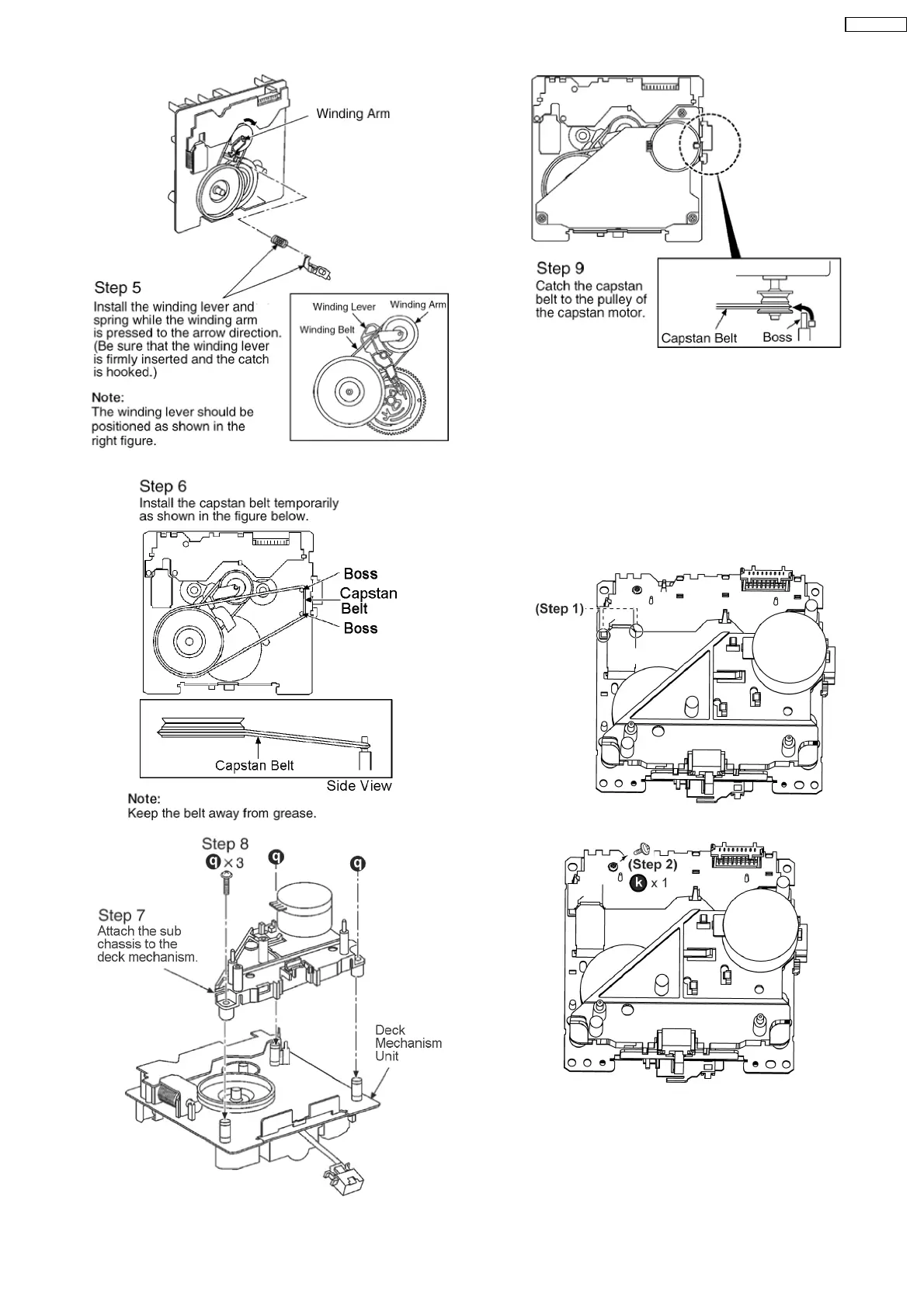

Step 1 Desolder plunger terminals.
Step 2 Remove 1 screw at Deck Mechanism P.C.B..
Step 3 Release 3 catches to remove the Deck Mechanism
P.C.B..
