15.7. Waveform Chart

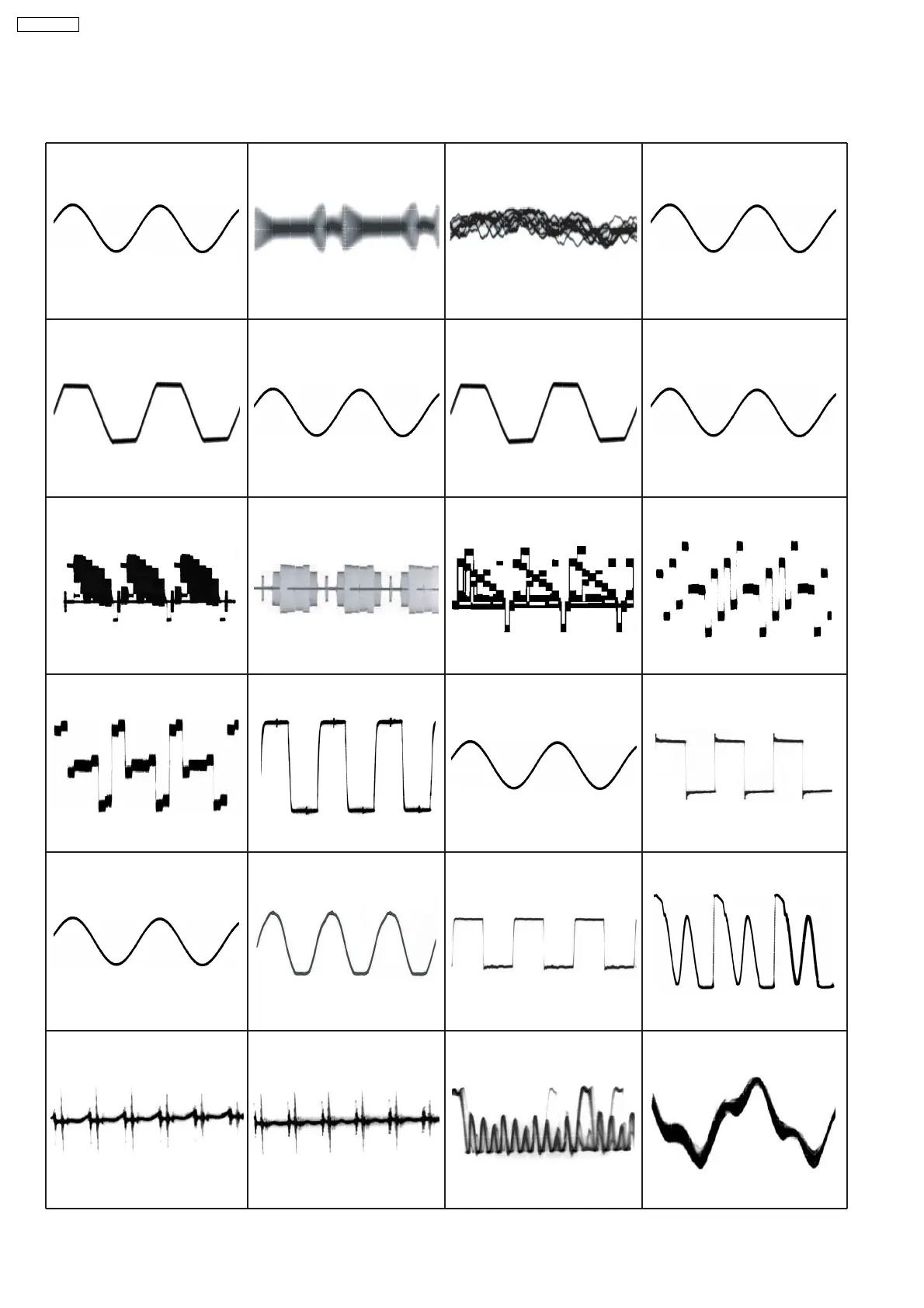

15.7.1. Waveform 1
WF No. IC2803-6 (PLAY)
0.24Vp-p(200usec/div)
WF No. IC2803-35,36 (PLAY)
0.44Vp-p(200usec/div)
WF No. IC2803-3,4 (PLAY)
0.4Vp-p(1msec/div)
WF No. IC2803-18,52,54 (PLAY)
3.4Vp-p(200usec/div)
WF No. IC2803-43,44 (PLAY)
0.6Vp-p(200usec/div)
1Vp-p(20usec/div)
WF No. IC2900-8,11 (PLAY)
WF No. IC2900-13,21 (PLAY)
0.48Vp-p(20usec/div)
WF No. IC2900-15,18 (PLAY)
0.48Vp-p(20usec/div)
WF No. IC2900-30 (PLAY)
0.21Vp-p(20usec/div)
WF No. IC2103-1,7 (PLAY)
0.3Vp-p(200usec/div)
WF No. IC2900-4,24 (PLAY)
0.6Vp-p(20usec/div)
WF No. IC2103-2,6 (PLAY)
0.3Vp-p(200usec/div)
WF No. IC2803-5 (PLAY)
2.8Vp-p(200usec/div)
WF No. IC5000-1 (PLAY)
5.6Vp-p(1usec/div)
WF No. IC5000-2 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5000-10,14 (PLAY)
80Vp-p(1usec/div)
WF No. IC5000-22 (PLAY)
0.84Vp-p(200usec/div)
WF No. IC5500-5 (PLAY)
7.2Vp-p(500nsec/div)
WF No. IC5500-8 (PLAY)
5.6Vp-p(500usec/div)
WF No. IC5701-1 (PLAY)
400Vp-p(2usec/div)
WF No. IC5701-4,6 (PLAY)
2Vp-p(5usec/div)
WF No. IC5799-2 (PLAY)
WF No. IC5799-3 (PLAY)
2Vp-p(5usec/div) 9.6Vp-p(5usec/div)
WF No. IC5799-5 (PLAY)
240Vp-p(50usec/div)
