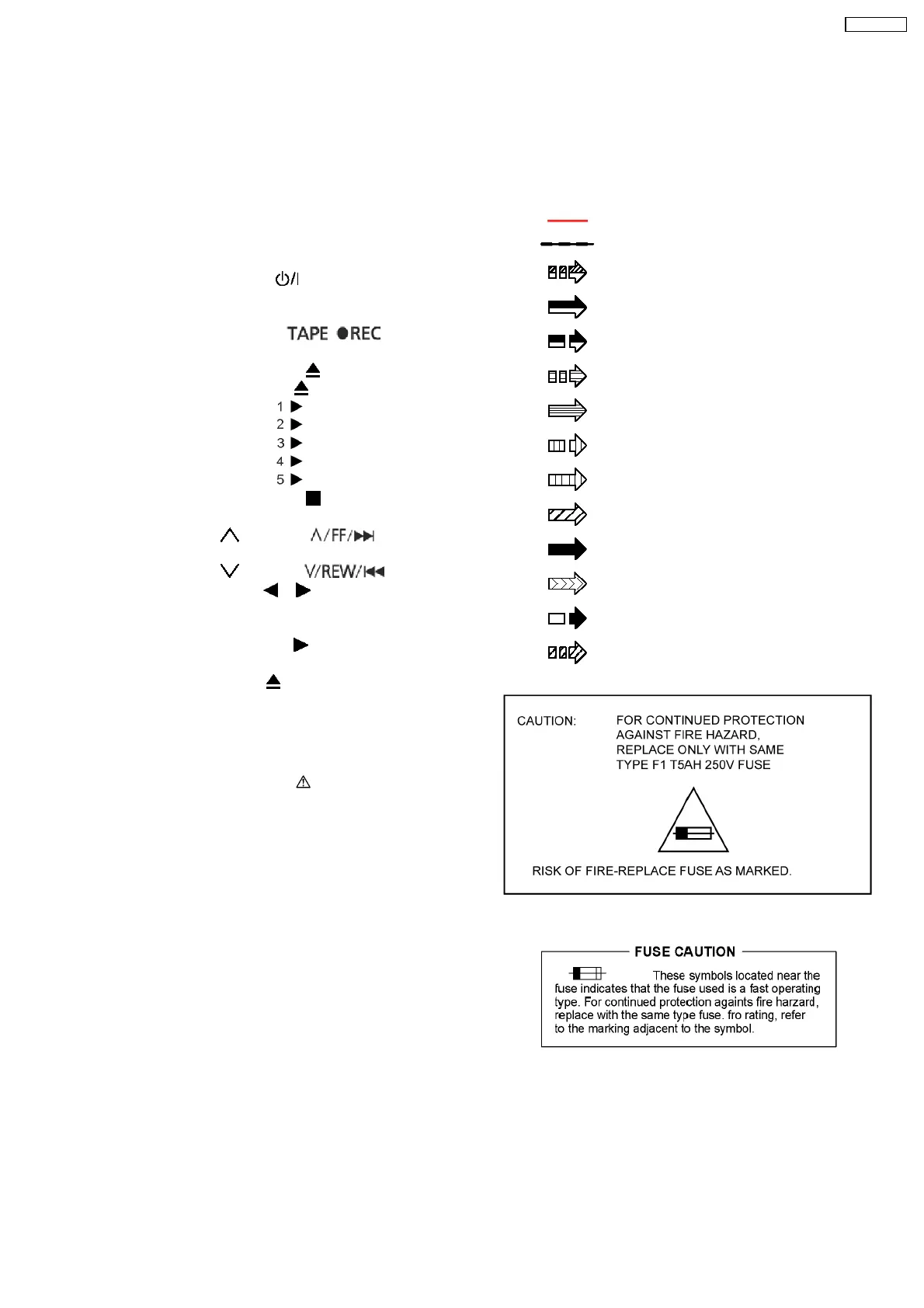

19 Schematic Diagram Notes
•
• •
• This schematic diagram may be modified at any time
with the development of new technology.
Notes:
S971: Mode Switch.
S972: Half Switch.
S974: RECINH_R Switch.
S975: RECINH_F Switch.
S5701: Voltage Selector Switch.
S6100: Power ( )Switch.
S6101: Display Switch.
S6104: Advanced Surround Switch.
S6106: Tape Rec (
)Switch.
S6108: H.Bass Switch.
S6201: Open/Close (
)Switch.
S6202: Exchange (
)Switch.
S6203: Disc 1 (
)Switch.
S6204: Disc 2 (
)Switch.
S6205: Disc 3 (
)Switch.
S6206: Disc 4 (
)Switch.
S6207: Disc 5 (
)Switch.
S6208: Stop/-Demo (
STOP/DEMO)
Switch.
S6300:
/Forward ( )Switch.
S6301: Manual EQ Switch.
S6302:
/Rewind ( )Switch.
S6303: Tape (
)Switch.
S6304: FM/AM Switch.
S6306: DVD/CD Switch.
S6307: USB (USB
)Switch.
S6308: EXT-IN Switch.
S6820: Open (
)Switch.
VR6001: Mic Volume Jog.
VR6500: Volume Jog.
VR6630: Bass Control Jog.
•
• •
• Important safety notice:
Components identified by
mark have special
characteristics important for safety.
Furthermore, special parts which have purposes of fire-
retardant (resistors), high-quality sound (capacitors), low-
noise (resistors), etc. are used.
When replacing any of components, be sure to use only
manufacturer´s specified parts shown in the parts list.
•
• •
• In case of AC rated voltage Capacitor, the part no. and
values will be indicated in the Schematic Diagram.
AC rated voltage capacitor:
C5700, C5701, C5703, C5704, C5705, C5706, C5707,
•
• •
• Resistor
Unit of resistance is OHM [Ω] (K=1,000, M=1,000,000).
•
• •
• Capacitor
Unit of capacitance is µF, unless otherwise noted. F=Farad,
pF=Pico-Farad
•
• •
• Coil
Unit of inductance is H, unless otherwise noted.
•
• •
• *
For indication only.
•
• •
• Voltage and signal line
: +B signal line
: -B signal line
: USB signal line
: DVD RF /Tape Playback signal line
: Motor Drive /Tape Record signal line
: DVD Audio signal line
: DVD Video signal line
: CD Head signal line
: DVD Head signal line
: Main signal line
: Tracking Error signal line
: Focus Error signal line
: AM/FM signal line
: AUX /Mic /Music Port signal line
97
SA-VK470EE
