Panasonic SA-VK470EE - Measurement And Adjustments; Cassette Deck Section; Tape Speed Adjustment

14 Measurement And Adjustments
14.1. Cassette Deck Section
14.1.1. Requirements
•
• •
• Test tape (QZZCFM) (QZZCWAT)
•
• •
• Normal blank cassette tape (QZZCRA)
•
• •
• Digital frequency counter
•
• •
• Oscilloscope
•
• •
• Electrical voltmeter
•
• •

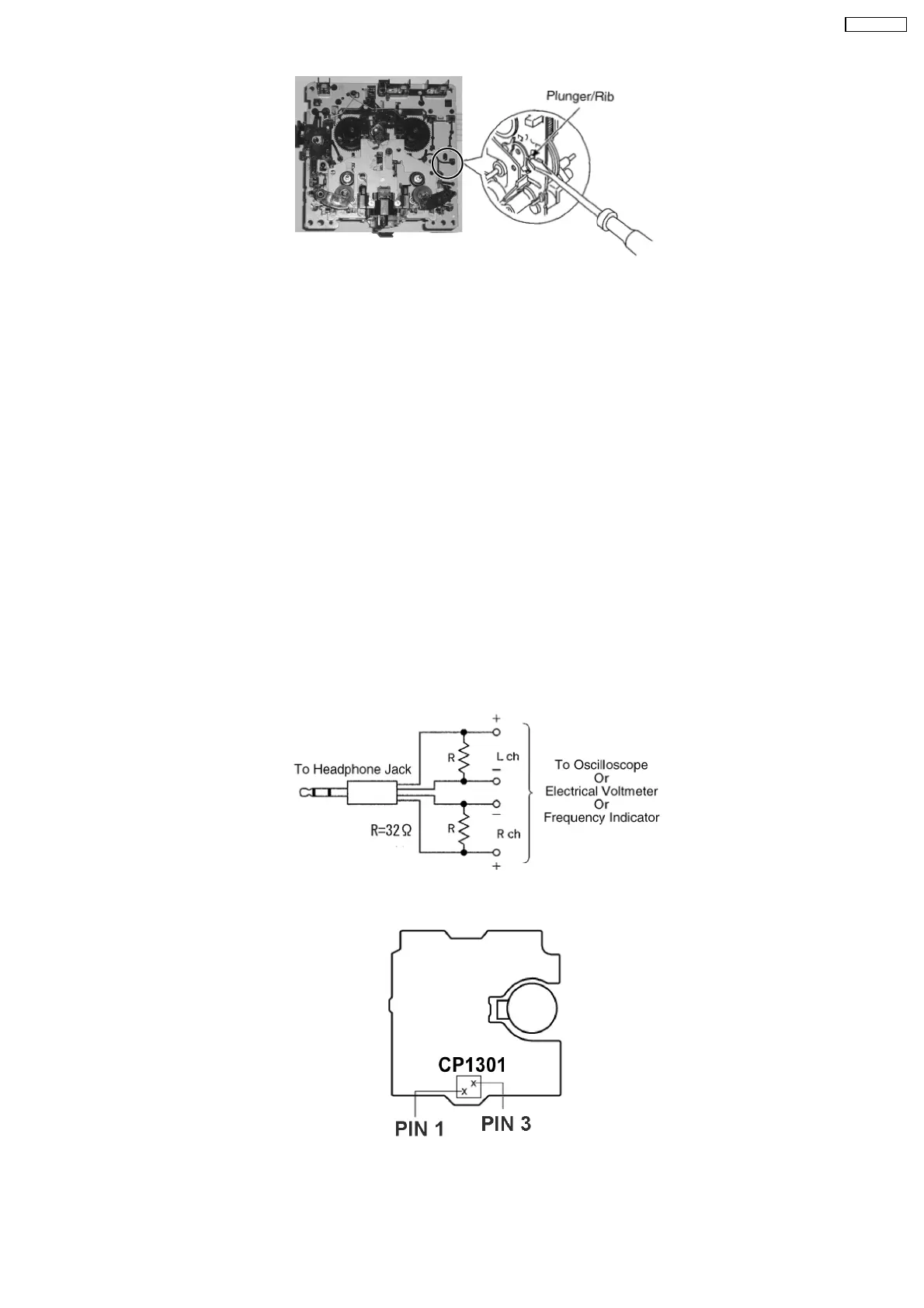

• Headphone jack output jig (Fig 8)
14.1.2. Setting of Unit
•
• •
• VOLUME: MAX
14.1.3. Preparations
1. Apply under [9. Assembling and Disassembling].
2. Remove 4 screws from the mechanism unit to disassemble. under [9.13 Disassembly of Deck Mechanism Unit].
3. Connect the headphone jack output jig (Fig 8) to headphone jack.
Fig. 8
Fig. 9
14.1.4. Tape Speed Adjustment
•
• •
• Normal speed adjustment (only during forward playback)
77
SA-VK470EE
