Panasonic SA-VK470EE - Disassembly of Cassette Lid; Rectification for Tape Jam Problem; Disassembly of D-Amp P.C.B.

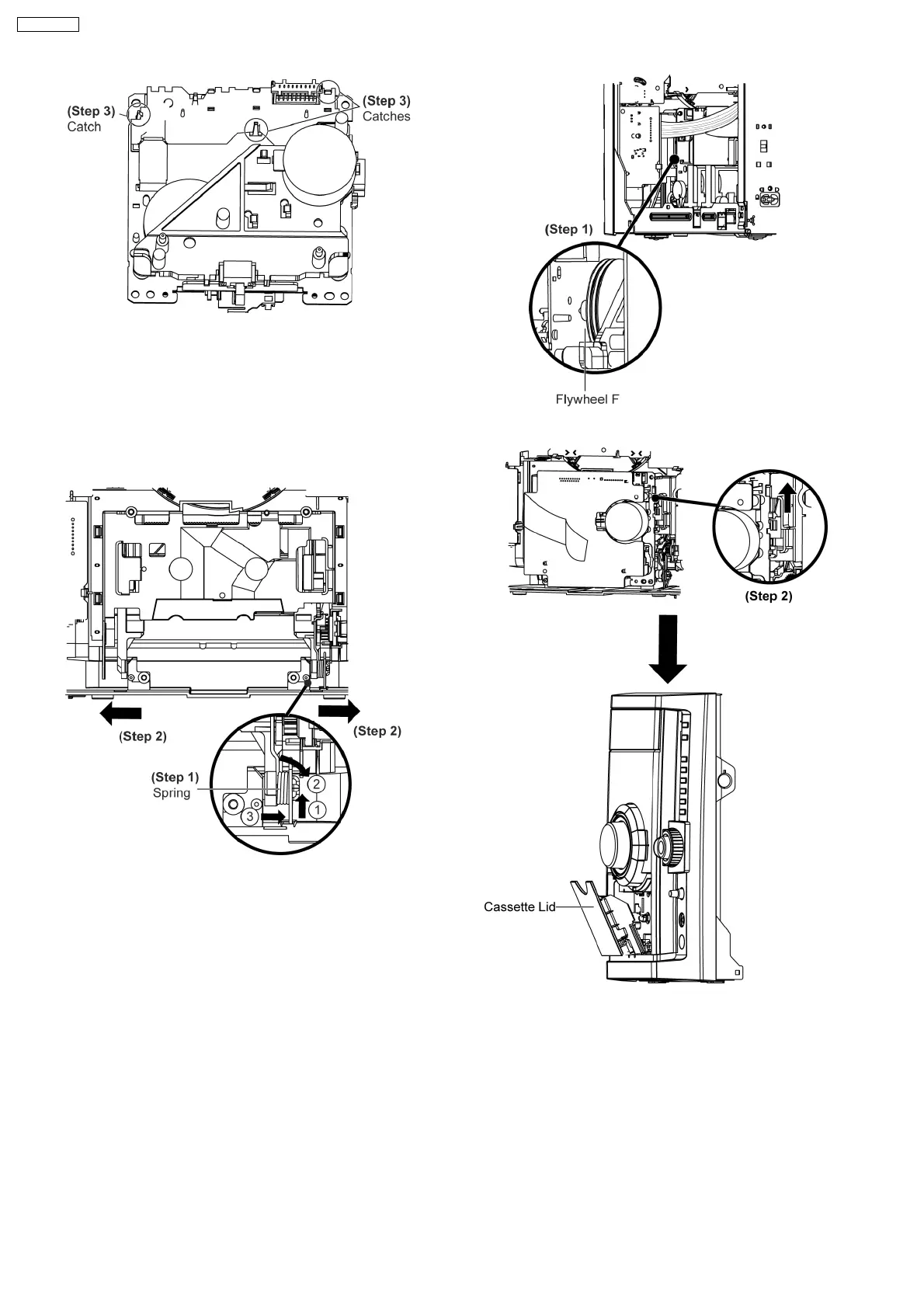

9.17. Disassembly of Cassette Lid
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 7) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 7) of Item 9.7
•
• •
• Follow the (Step 1) to (Step 3) of Item 9.13
Step 1 Remove the spring.
Step 2 Push the cassette lid in the direction of arrows.
9.18. Rectification for Tape Jam
Problem
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
Step 1 If a cassette tape cannot be removed from the deck (the
tape is caught by the capstan or pinch roller during playback or
recording), rotate the flywheel F in the direction of the arrow to
remove it.
Step 2 Push the lever upward and open the cassette lid.
Note: Follow Disassembly of Cassette Lid. Remove the
cassette tape.
9.19. Disassembly of D-Amp P.C.B.
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 1) to (Step 10) of Item 9.5
Step 1 Detach 17P FFC cable at connector (CN5050) at D-
Amp P.C.B..
Step 2 Detach 8P wired connector (CN5500) at D-Amp P.C.B..
Step 3 Remove 2 screws at D-Amp P.C.B. chassis support.
