Panasonic SA-VK470EE - Disassembly of Deck Mechanism

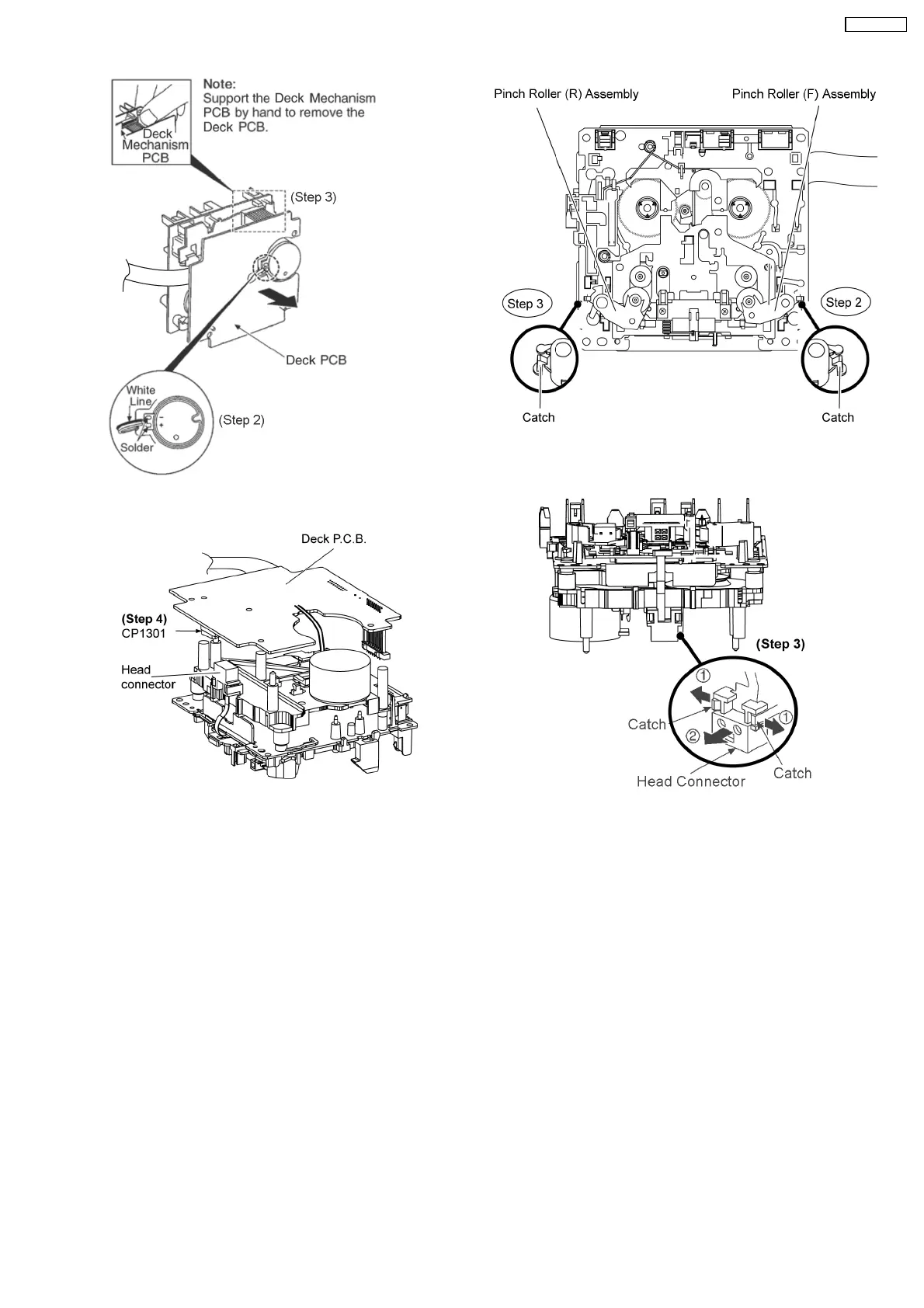

Step 4 Lift up the Deck P.C.B. to detach from head connector
(CP1301).
9.15. Disassembly of Deck
Mechanism
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 7) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 7) of Item 9.7
•
• •
• Follow the (Step 1) to (Step 3) of Item 9.13
•
• •
• Follow the (Step 1) to (Step 4) of Item 9.14
9.15.1. Replacement of Pinch Roller and
Head Block
Step 1 Release catch to remove the Pinch Roller (F) Assembly.
Step 2 Release catch to remove the Pinch Roller (R)
Assembly.
Step 3 Release the catches to remove the head connector.
Step 4 Remove 2 screws at the Deck Mechanism unit.
Step 5 Remove head block.
