Panasonic SA-VK470EE - Disassembly of Deck Mechanism Unit; Disassembly of Deck P.C.B.

position.

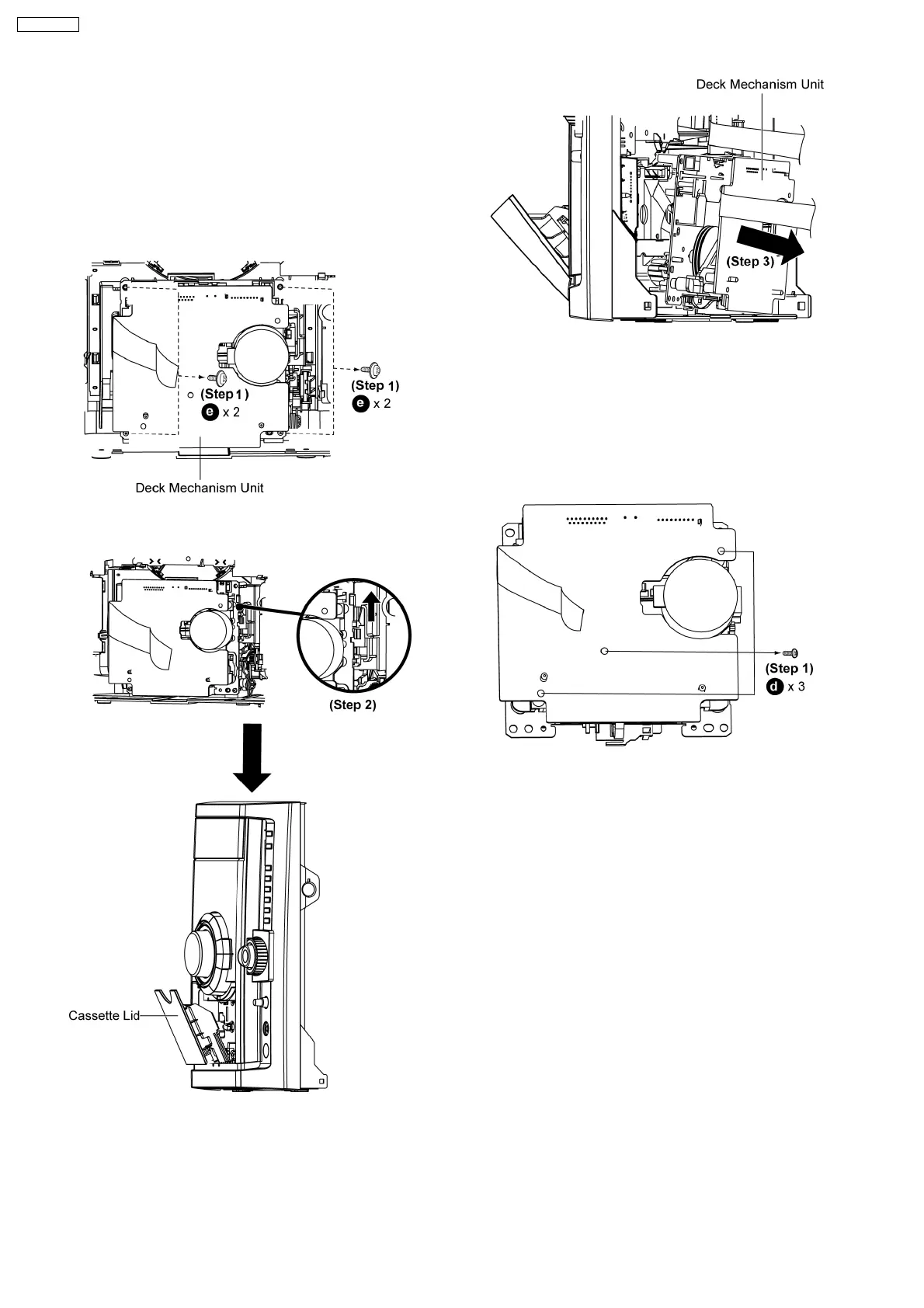

9.13. Disassembly of Deck
Mechanism Unit
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 7) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 7) of Item 9.7
Step 1 Remove 4 screws at Deck Mechanism.
Step 2 Push the lever upward as arrow shown to open the
cassette lid assembly.
Step 3 Remove the deck mechanism unit as arrow shown.
9.14. Disassembly of Deck P.C.B.
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 7) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 7) of Item 9.7
•
• •
• Follow the (Step 1) to (Step 3) of Item 9.13
Step 1 Remove 3 screws.
Step 2 Desolder 2P wires at the motor terminal.
Step 3 Detach 9P cable at connector (CP1902) on Deck
P.C.B..
52
SA-VK470EE
