Panasonic SA-VK470EE - Disassembly of SMPS P.C.B.

Caution Note: While lifting up Main P.C.B., please handle Jack
(JK2801) and Tuner Pack with care.
9.22. Disassembly of SMPS P.C.B.
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 1) to (Step 10) of Item 9.5
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.19

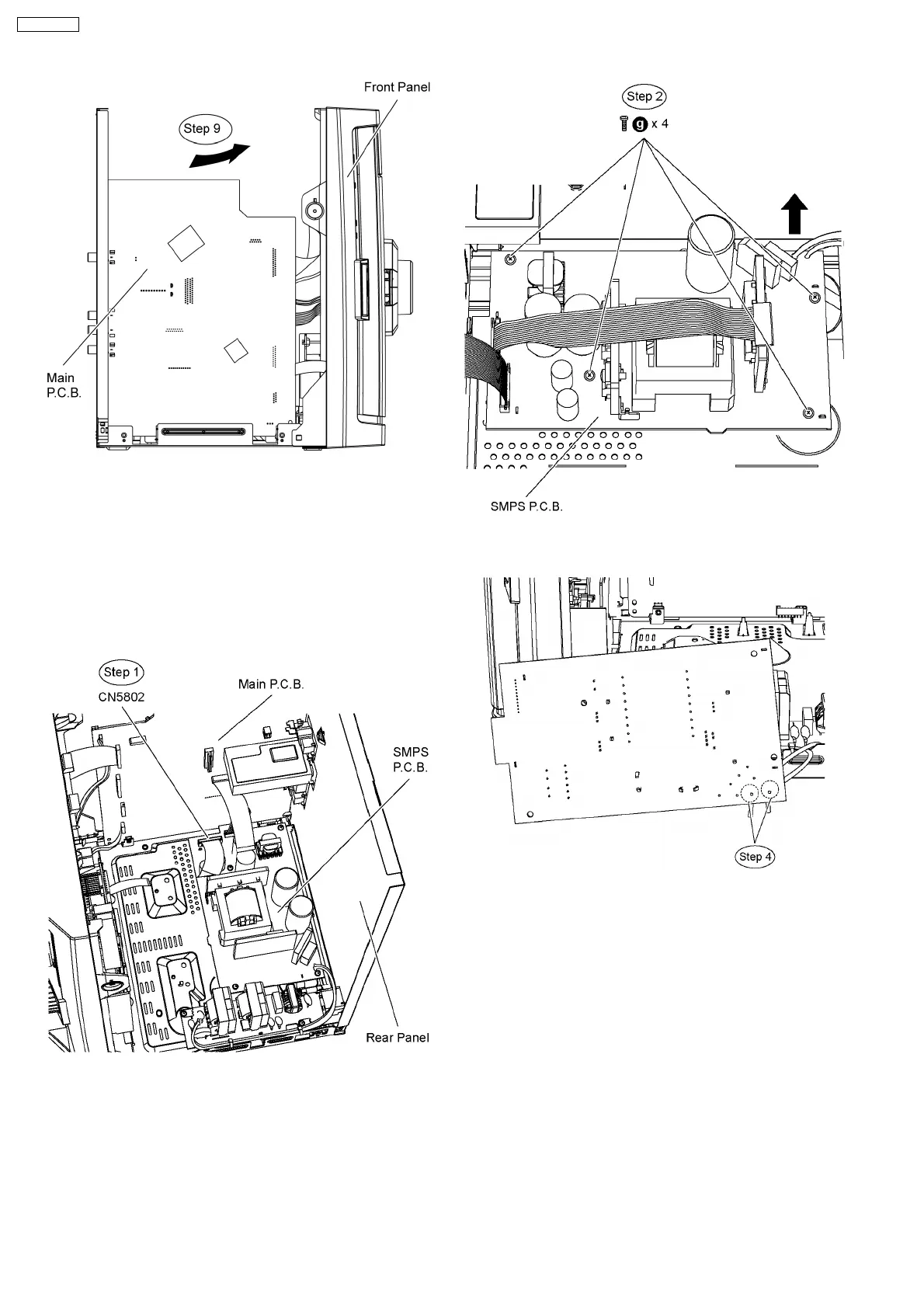

Step 1 Detach 11P wires at connector (CN5802) at SMPS
P.C.B..
Step 2 Remove 4 screws at SMPS P.C.B..
Step 3 Lift up the SMPS P.C.B. as arrow shown.
Step 4 Flip the SMPS P.C.B. and desolder 2 wires pins (red
and black).
Note: During reassembling procedures, ensure the P.C.B. is
seated properly at the locator.
