Panasonic SA-VK470EE - Disassembling and Assembling Traverse Unit Assembly in Play Position; Disassembly of Traverse Unit (TRV) Assembly

10.1. Disassembly of Traverse Unit
(TRV) Assembly
•
• •

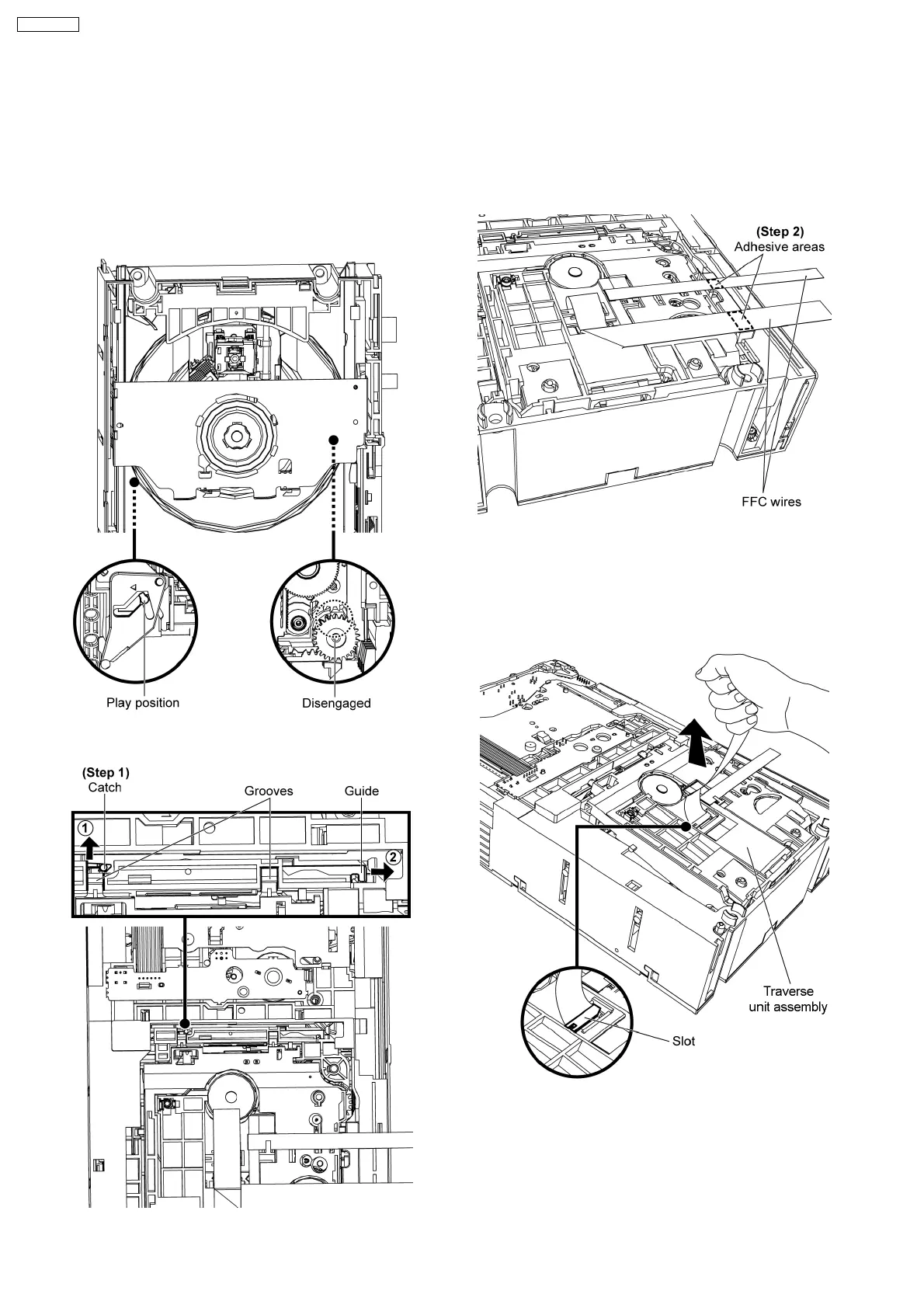

• Disassembly of TRV unit assembly in play position.
•
• •
• Note: The above picture shows the units is in play position.
Step 1: Release the catch and push the guide as arrows shown
to open both grooves.
Step 2: Detach the FFC wires from the adhesive areas.
Caution:
Do not pull the FFC wire to remove the traverse unit
assembly, as it may cause damage to the slot.
10 Disassembling and assembling Traverse Unit Assembly
in play position
68
SA-VK470EE
