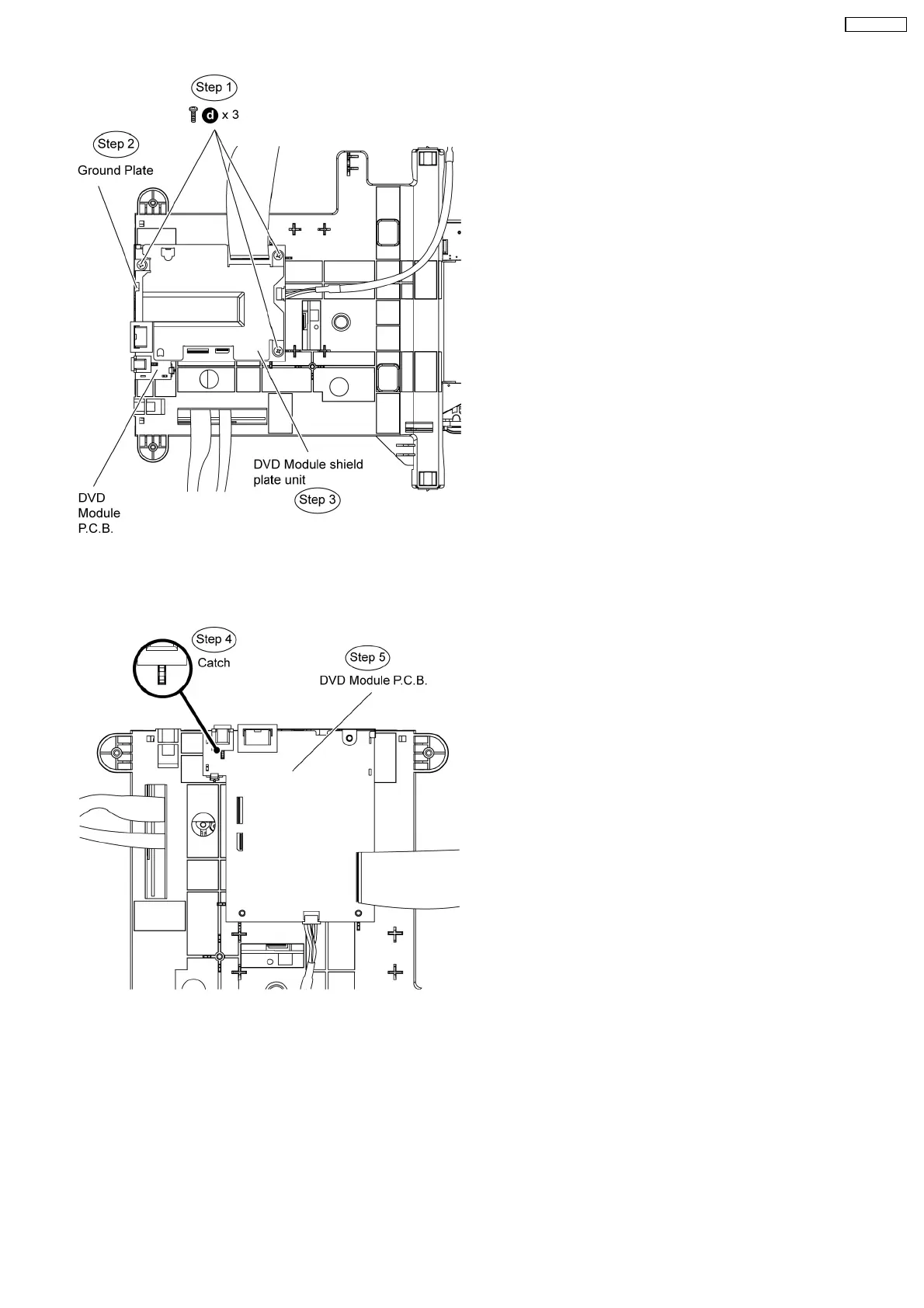

• Disassembly of DVD Module P.C.B.

Step 4 Release the catch on DVD Module P.C.B..

Step 5 Remove DVD Module P.C.B..

67

SA-VK470EE
