Panasonic SA-VK470EE - Disassembly of Rear Panel; Disassembly of Front Panel Unit

Note 1: For disassembly & assembly of traverse unit, please
refer to original Service Manual for the Disassembly and
Assembly of the Mechanism Unit (CR14).
Note 2: During reassembling procedure, ensure the
Mechanism Unit (CR14), is seated properly at the locators.

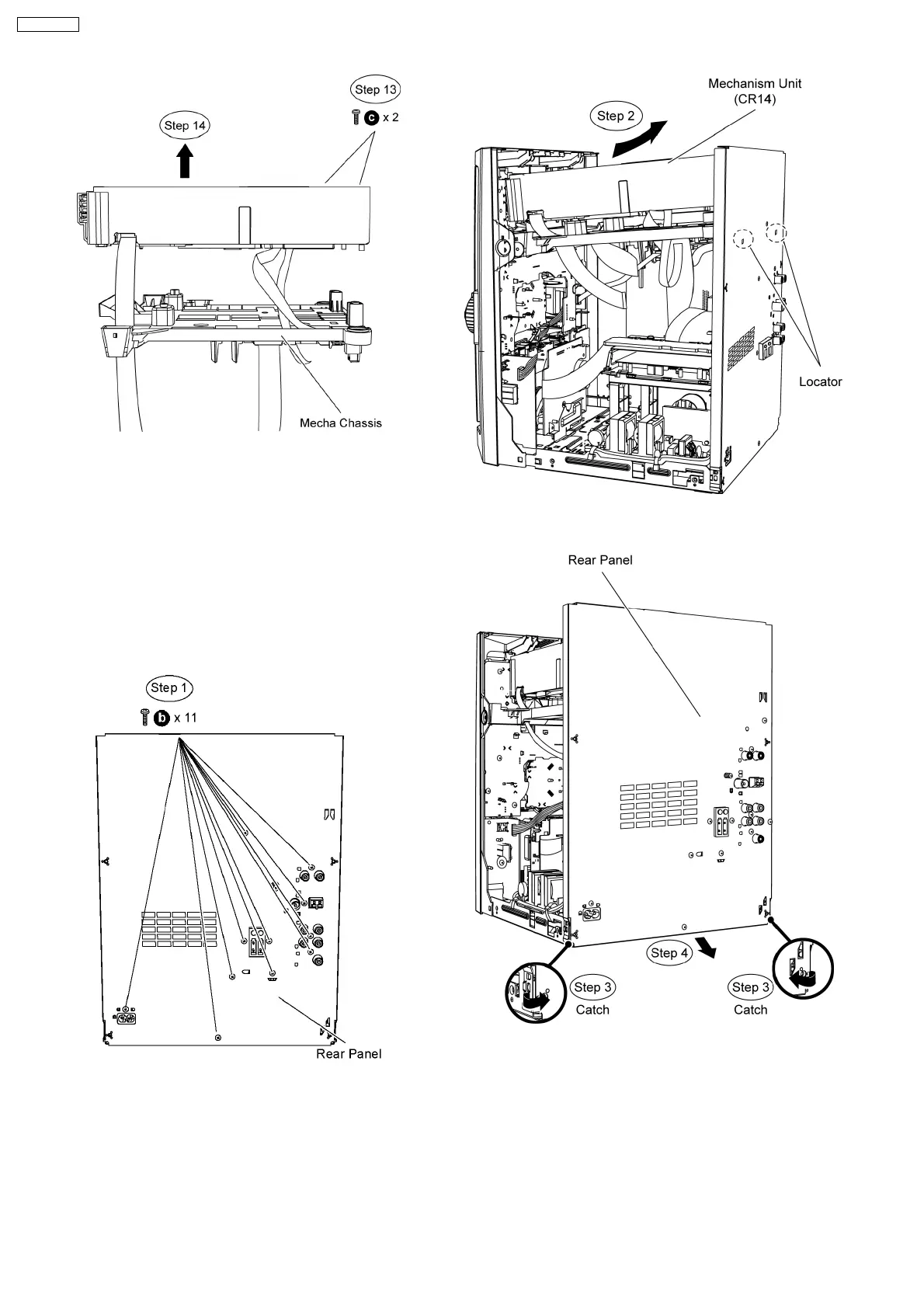

9.6. Disassembly of Rear Panel
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Disassembly of Rear Panel
Step 1 Remove 11 screws at rear panel.
Step 2 Slightly lift up the Mechanism Unit (CR14) from the two
locators.
Step 3 Release 2 catch from the side panel.
Step 4 Remove the rear panel in the direction of arrow.
9.7. Disassembly of Front Panel
Unit
•
• •
• Follow the (Step 1) to (Step 5) of Item 9.4
•
• •
• Follow the (Step 5) to (Step 7) of Item 9.5
Step 1 Detach 27P FFC cable at connector (CN2807) on Main
P.C.B..
Step 2 Detach 2P cable at connector (CN2813) on Main
P.C.B..
46
SA-VK470EE
