Caution: Do not exert strong force when releasing the tabs.

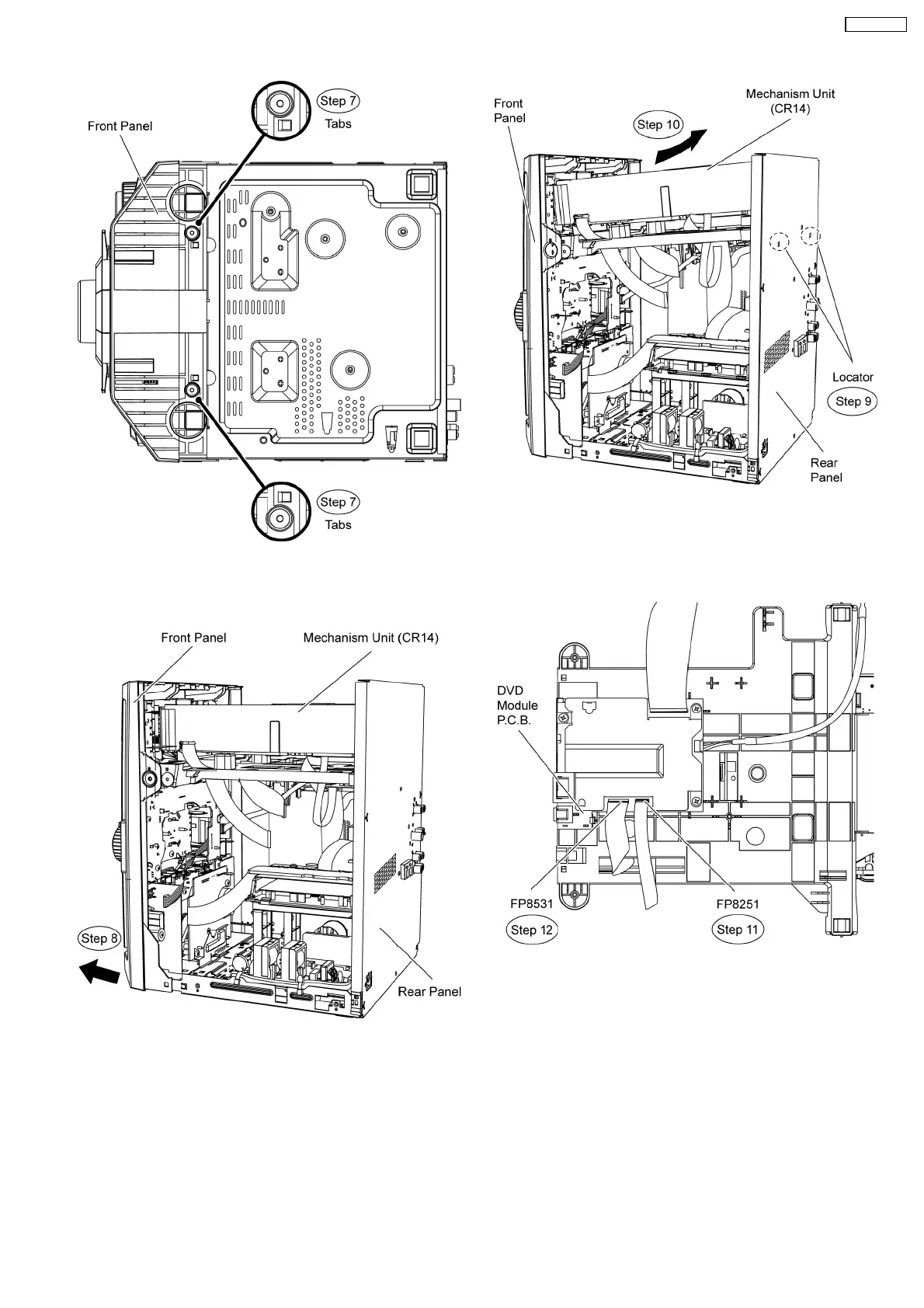

Step 8 Shift the front panel unit slightly forward in the direction
of arrows.
Step 9 Release mechanism unit from the 2 locators.
Step 10 Lift up the Mechanism Unit (CR14).
Step 11 Detach 7P FFC cable at the connector (FP8251) on
DVD Module P.C.B..
Step 12 Detach 26P FFC cable at the connector (FP8531) on
DVD Module P.C.B..
•
• •
• Disassembly of Mecha Chassis
Step 13 Remove 2 screws.
Step 14 Remove the Mecha Chassis as arrow shown.
