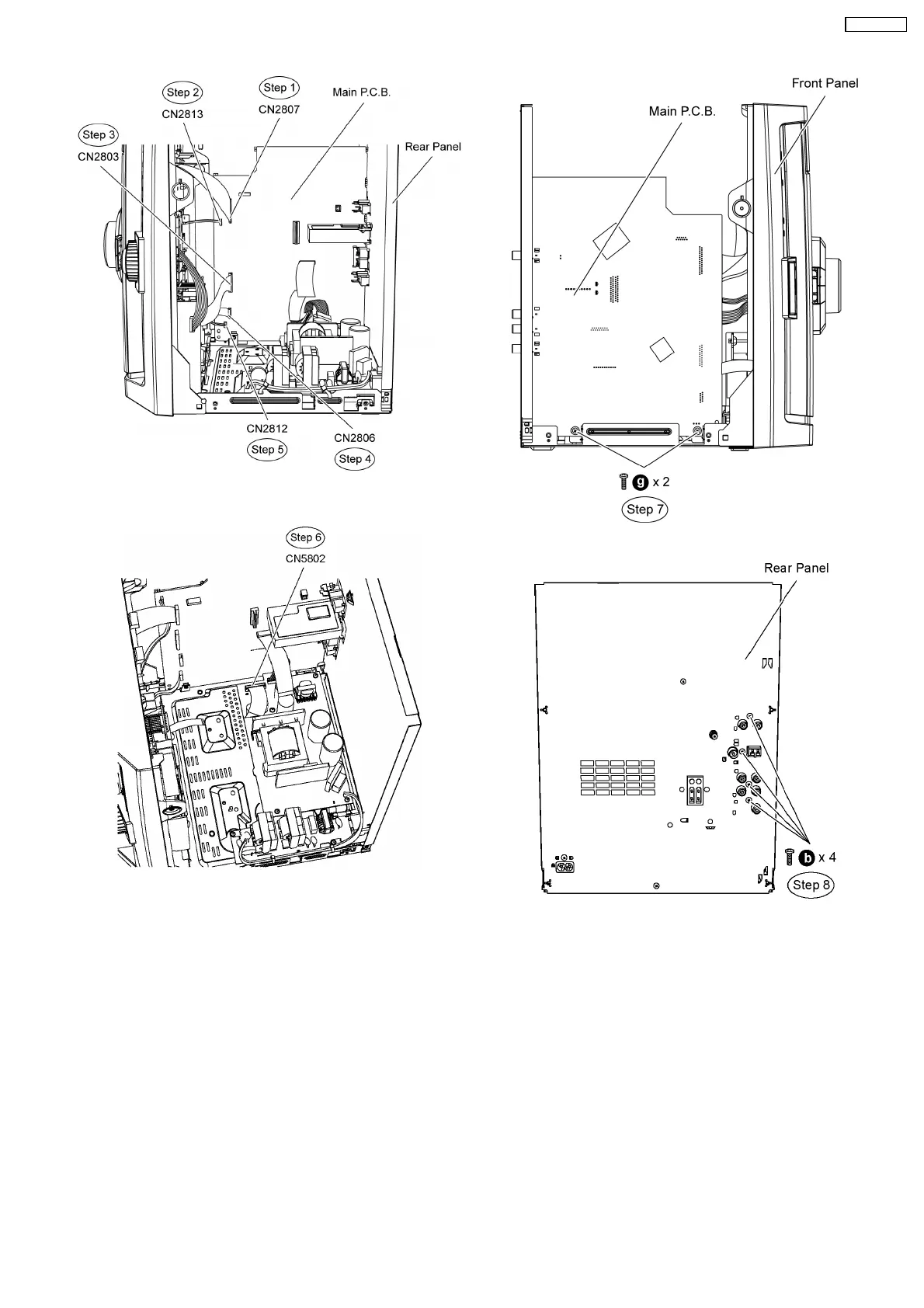

Step 6 Detach 11P cable at connector (CN5802) on SMPS

P.C.B..

Step 7 Remove2screwsonMainP.C.B..

Step 8 Remove 4 screws at rear panel.

Step 9 Lift up Main P.C.B. as arrow shown.

59

SA-VK470EE
