Cabling Requirements
Cables used for connecting to inverters, can be termed as electrically ‘Clean’, ‘Noisy’ or ‘Sensitive’.

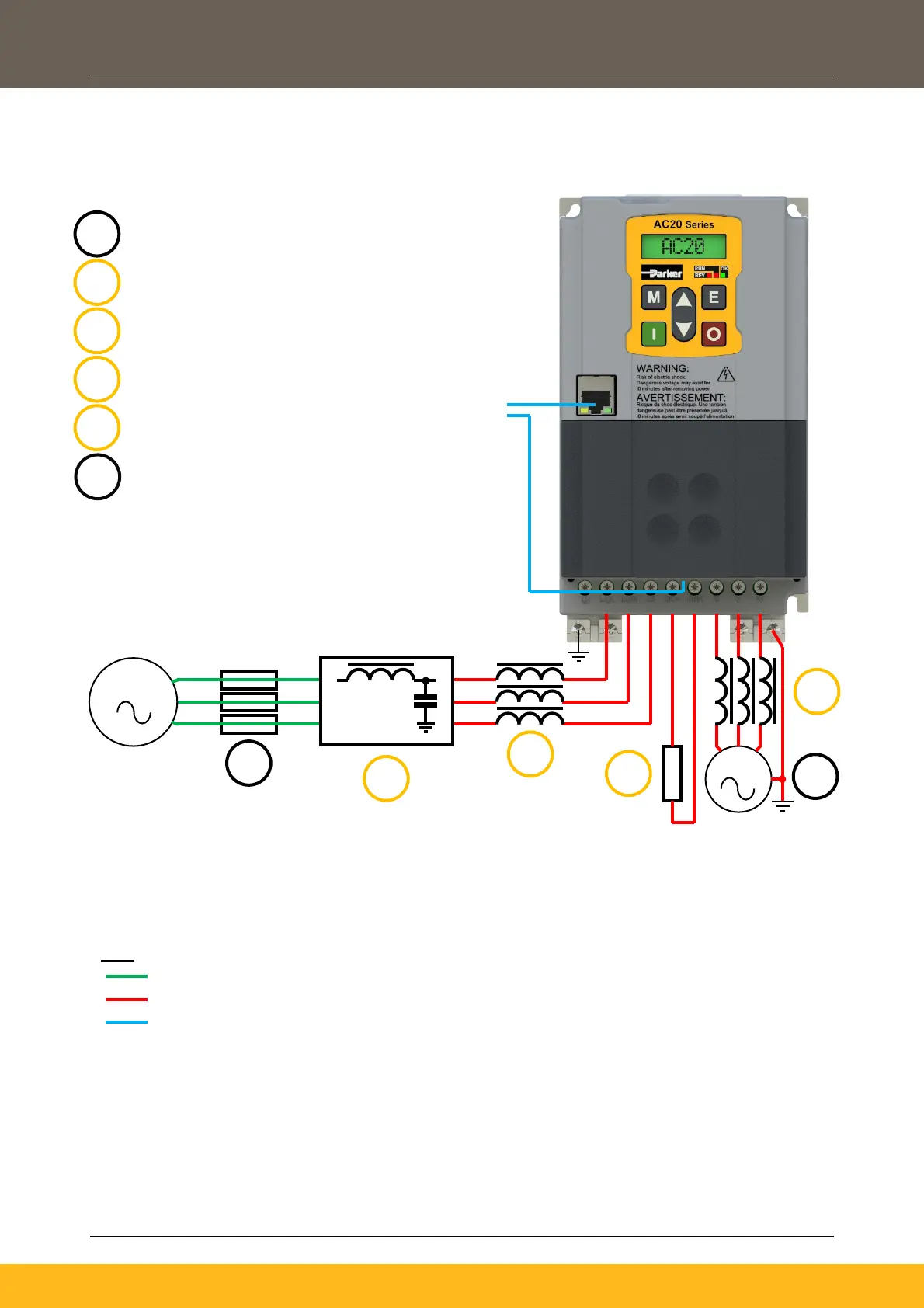

The diagram below shows an overview:
Key:
‘CLEAN’ Cables
‘NOISY’ Cables
‘SENSITIVE’ Cables
Signal, Control &
Communications
Cables
Supply & Power
Cables
A
B
C
D
E
AC Line Fuses
EMC Filter (optional)
AC Line Choke (optional)
Dynamic Braking Resistor (optional)
AC Motor Choke (optional)
F
Three Phase AC Induction or PMAC Motor
V
S
= AC Voltage Source:
• 1ø, 220-240V
• 3ø, 220-240V
• 3ø, 380-480V
M
A
B
C
D
E
F
V
S
