Control Board Communications Wiring
The Ethernet communications socket allows users to:
- Communicate over Ethernet IP, Modbus TCP/IP, or ProfinetIO.
- Access the drive’s Web Server.
- Connect to the Drive System Explorer (DSE Lite) software for function block programming of
custom applications and firmware updates, etc.
Recommended Ethernet Cables
The following Ethernet cables are recommended for connecting to the control board RJ45 socket:
Cable Connection
Frames 2 – 5:

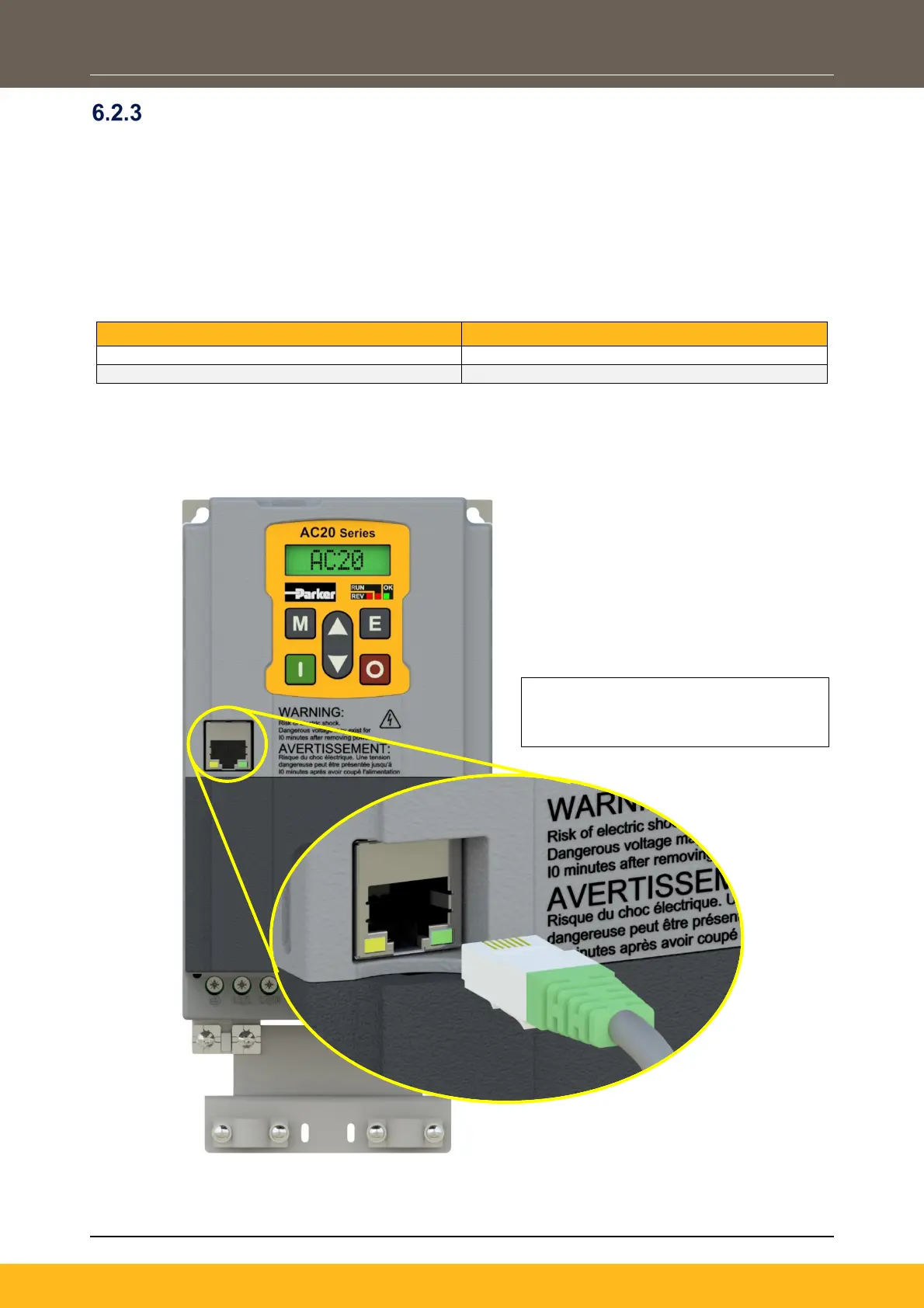

On Frames 2 – 5, the Ethernet cable plugs into the RJ45 socket on the front of the product:
To remove the cable, push the connector clip up towards the cable and pull away from the product.
Frames 6 – 10:
1. Insert the cable connector, clip side
down, into the RJ45 port on the front
of the product.
