DOC-0017-04-EN: AC20 Series - Hardware Installation Manual
DOC-0017-04-EN-A 22.03.2023 45 (154)

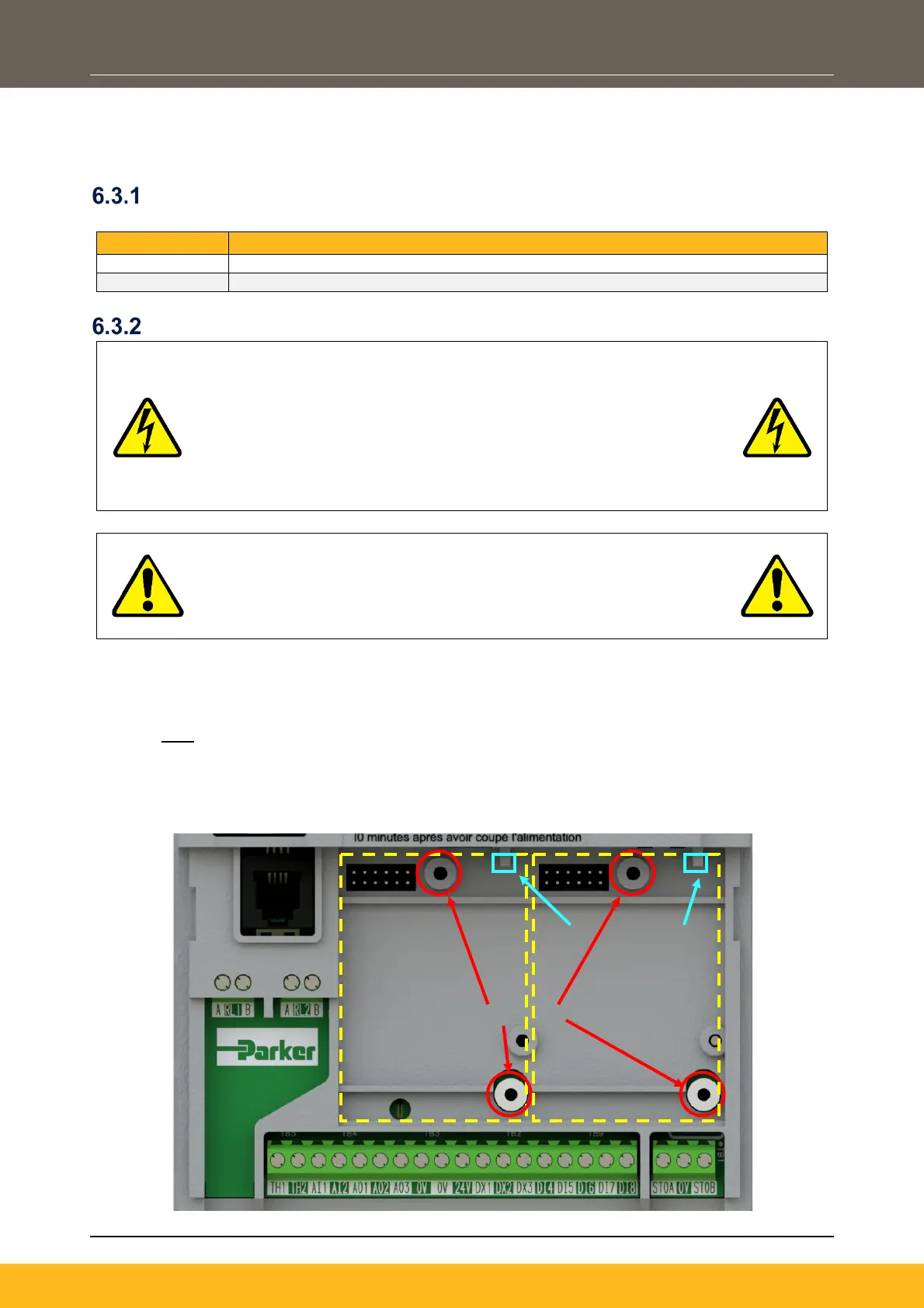

6.3 Option Cards
Two types of Option Card are available, providing additional product functionality.
Order Codes
General Purpose Input/Output (GPIO) option card
Encoder Feedback option card
Installation
RISK OF ELECTRIC SHOCK
Terminal covers, main covers, and cover fixings must remain in place
while the drive is energised.
These should only ever be removed once the supply to the unit and/or
system has been disconnected, and the residual energy in the DC link
capacitors has been discharged.
ESD SENSITIVE EQUIPMENT
Take ESD precautions when handling the Option Cards to avoid any risk
of damaging the equipment.
The Option Cards are intended to be customer installed.
The Option Cards can be fitted to either Slot 1 or 2, and either two different or two identical Option Cards
can be fitted simultaneously if required.
Note: Do NOT install the Option Card with power applied to the product, as damage may occur.
Frames 2 – 5:
On the Frames 2 – 5, the control module terminal cover will need to be removed prior to option card
installation.
