Onboard Drive Keypad & Display Overview

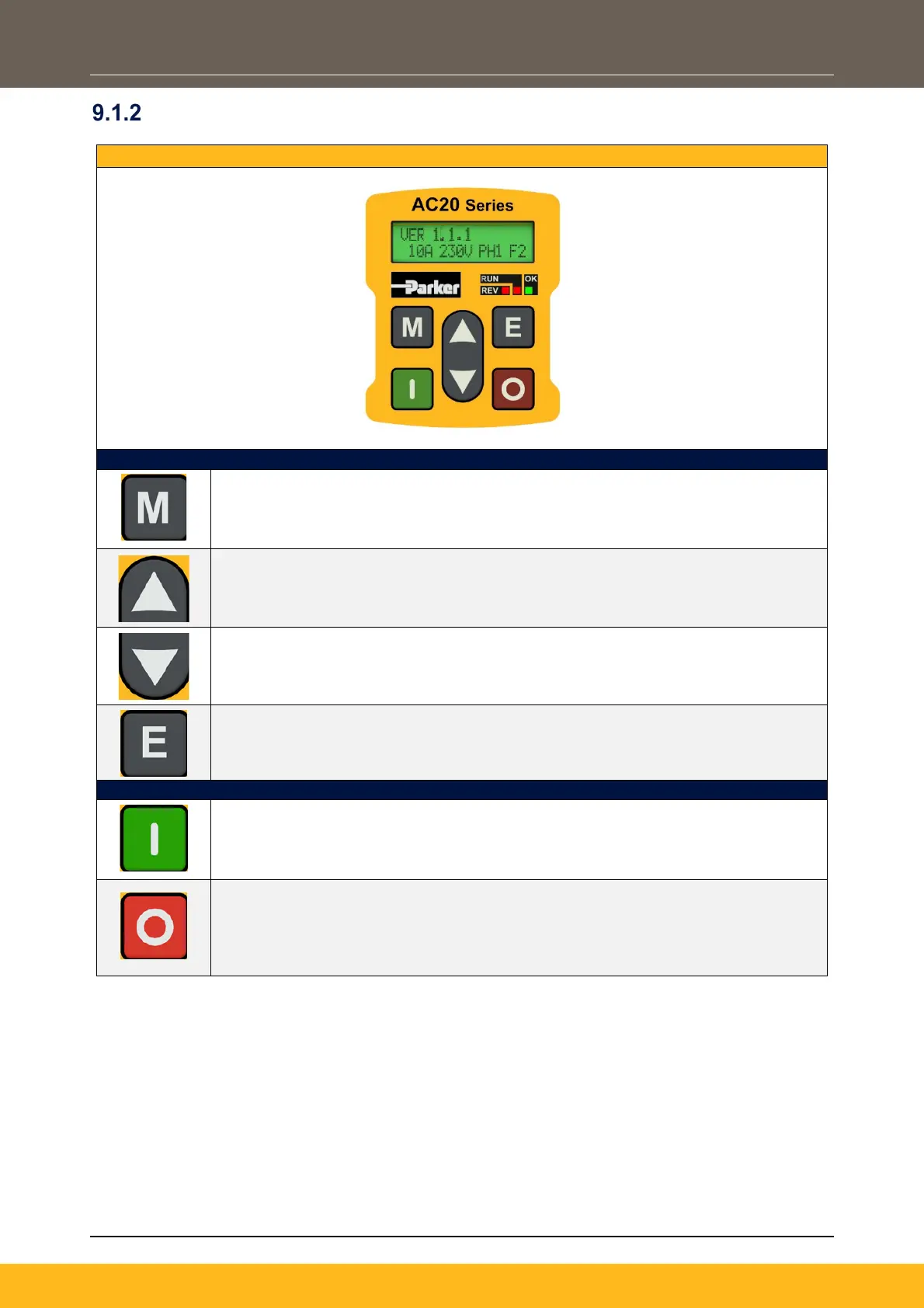

Keypad Overview
Navigation / Parameter Edit Keys
MENU Key
Navigation - Displays the next Menu level, or the first parameter of the current Menu.
Parameter - Allows a writable parameter to be modified (this is indicated by → appearing on the
left of the bottom line).
UP Key
Navigation - Moves upwards through the list of parameters.
Parameter - Increments the value of the displayed parameter.
Press at the same time as the ‘STOP’ key to select forward direction when in ‘Local’ mode.
DOWN Key
Navigation - Moves downwards through the list of parameters.
Parameter - Decrements the value of the displayed parameter.
Press at the same time as the ‘STOP’ key to select reverse direction when in ‘Local’ mode.
ESCAPE Key
Navigation - Displays the previous level’s Menu.
Parameter - Returns to the parameter list.
Trip Acknowledge - Acknowledges displayed Trip or Error message.
Local Mode Operating Keys
RUN Key
Control - Runs the motor at a speed determined by the LOCAL SETPOINT.
Trip Reset - Resets any trips and then runs the motor as above. Only operates when the Inverter
is in ‘Local’ Start/Stop (Seq) mode.
STOP / RESET Key
Control - Stops the motor. Only operates when the Inverter is in ‘Local’ Sequence mode.
Trip Reset - Resets any trips and clears displayed message if trip is no longer active.
Press and hold for approx. 3 seconds to toggle between ‘Local’ & ‘Remote’ modes of operation.
Press simultaneously with ‘UP’ or ‘DOWN’ key to change direction when in ‘Local’ mode.
