DOC-0017-04-EN: AC20 Series - Hardware Installation Manual
86 (154) DOC-0017-04-EN-A 22.03.2023

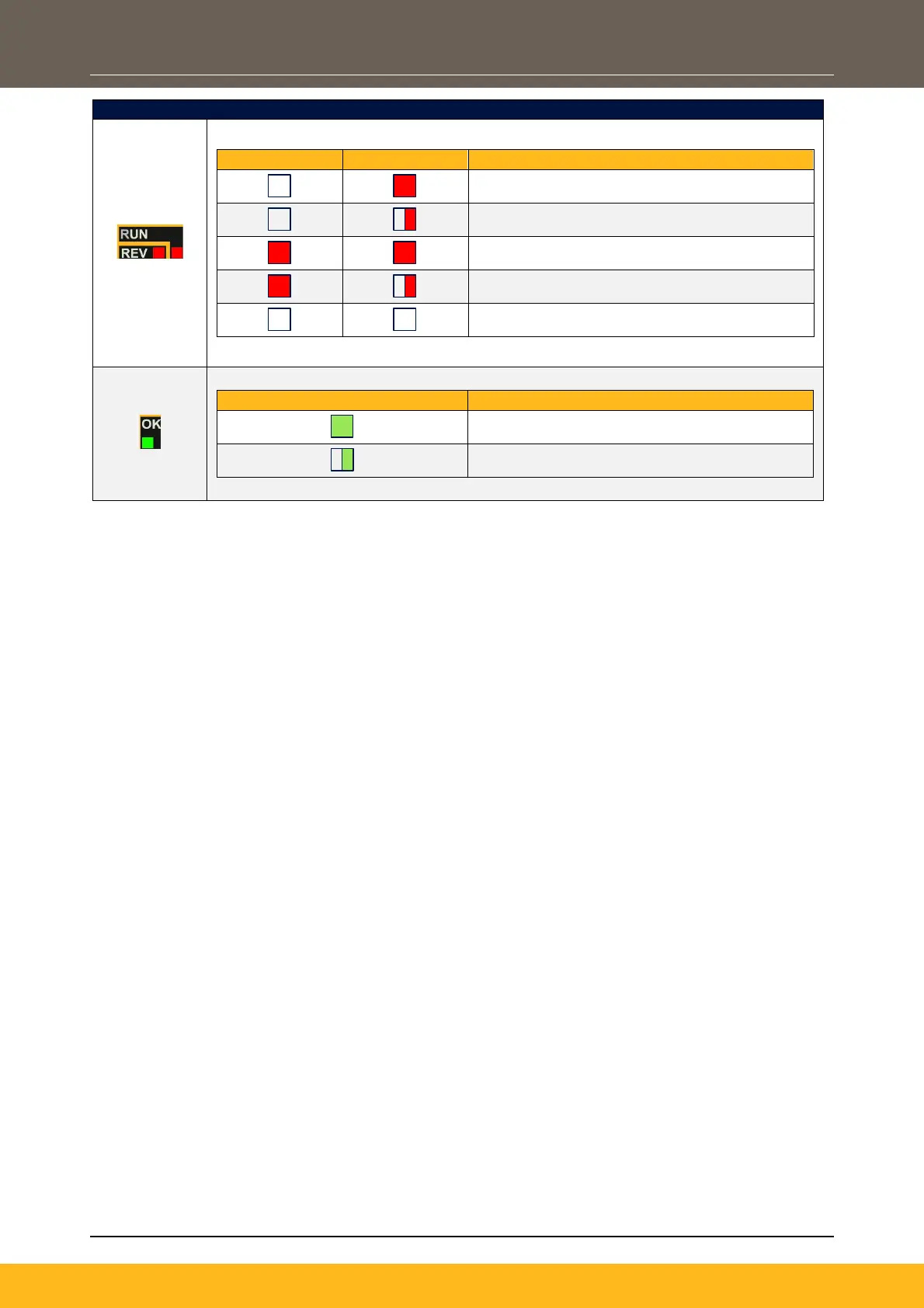

Status Indicator LEDs
‘REV’ LED
‘RUN’ LED
Inverter Status
Inverter RUNNING in FORWARDS direction.
Inverter STOPPING from FORWARDS direction.
Inverter RUNNING in REVERSE direction.
Inverter STOPPING from REVERSE direction.
Inverter STOPPED.
‘OK’ LED
Inverter Status
Inverter is HEALTHY.
Inverter has TRIPPED.
