DOC-0017-04-EN: AC20 Series - Hardware Installation Manual
DOC-0017-04-EN-A 22.03.2023 19 (154)

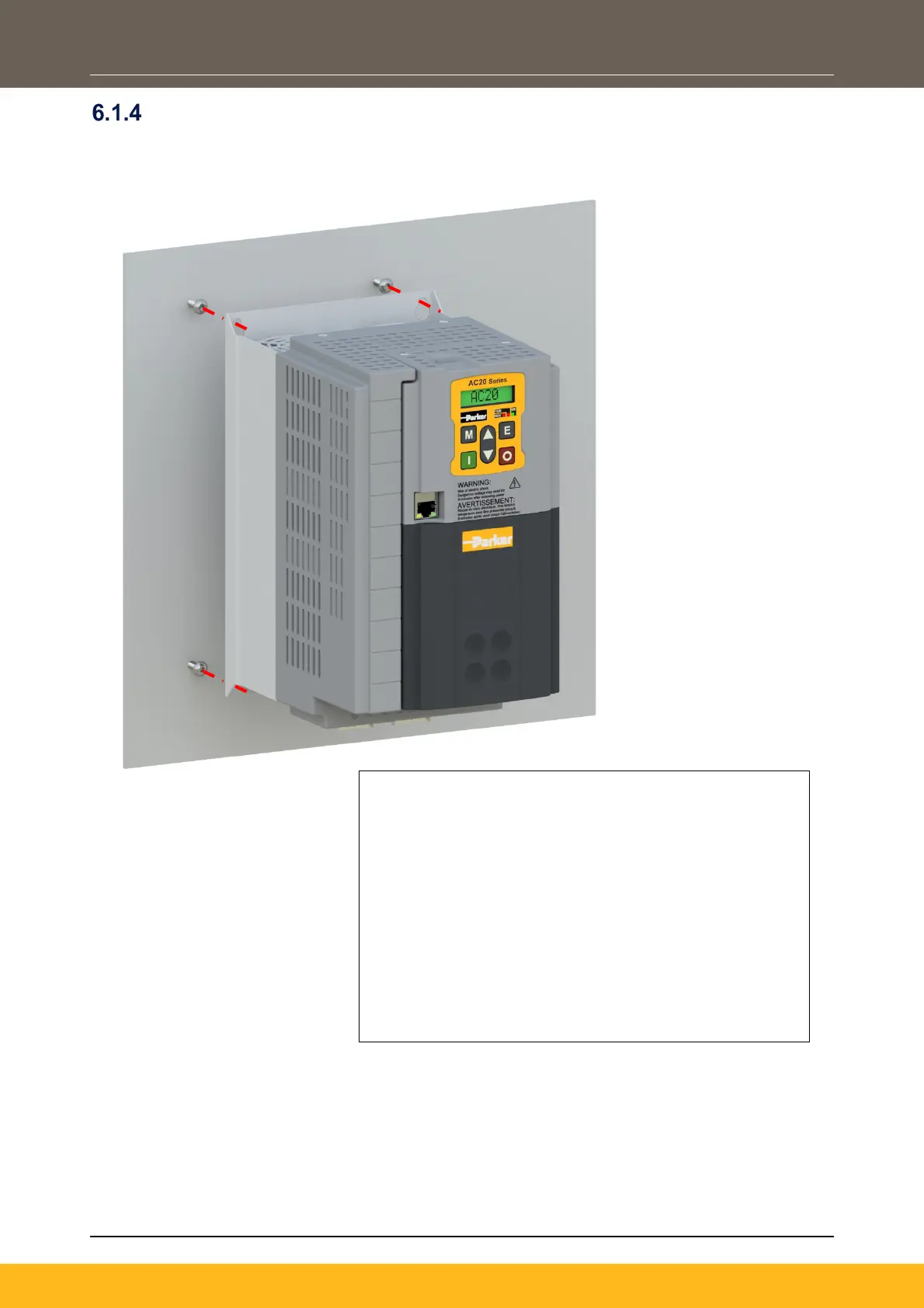

Mounting the Inverter
These products are intended to be mounted vertically inside a suitable enclosure.
1. Mark out the fixing hole positions on the cubicle back
panel as per the Fixing Dimensions listed in the table
above.
2. Drill the fixing holes as per the Slot Size and required
Fixing as listed in the table above.
3. Screw the fixings part way into the cubicle back panel.
4. Lift the inverter into position (via suitable means) and onto
the fixings using the keystone slots at the top of the
product to hang the inverter into position.
5. Secure the product by fully tightening the fixings.
6. The inverter is now ready for wiring.
