Frames 7 – 10:
Minimum Air Clearance for Product:

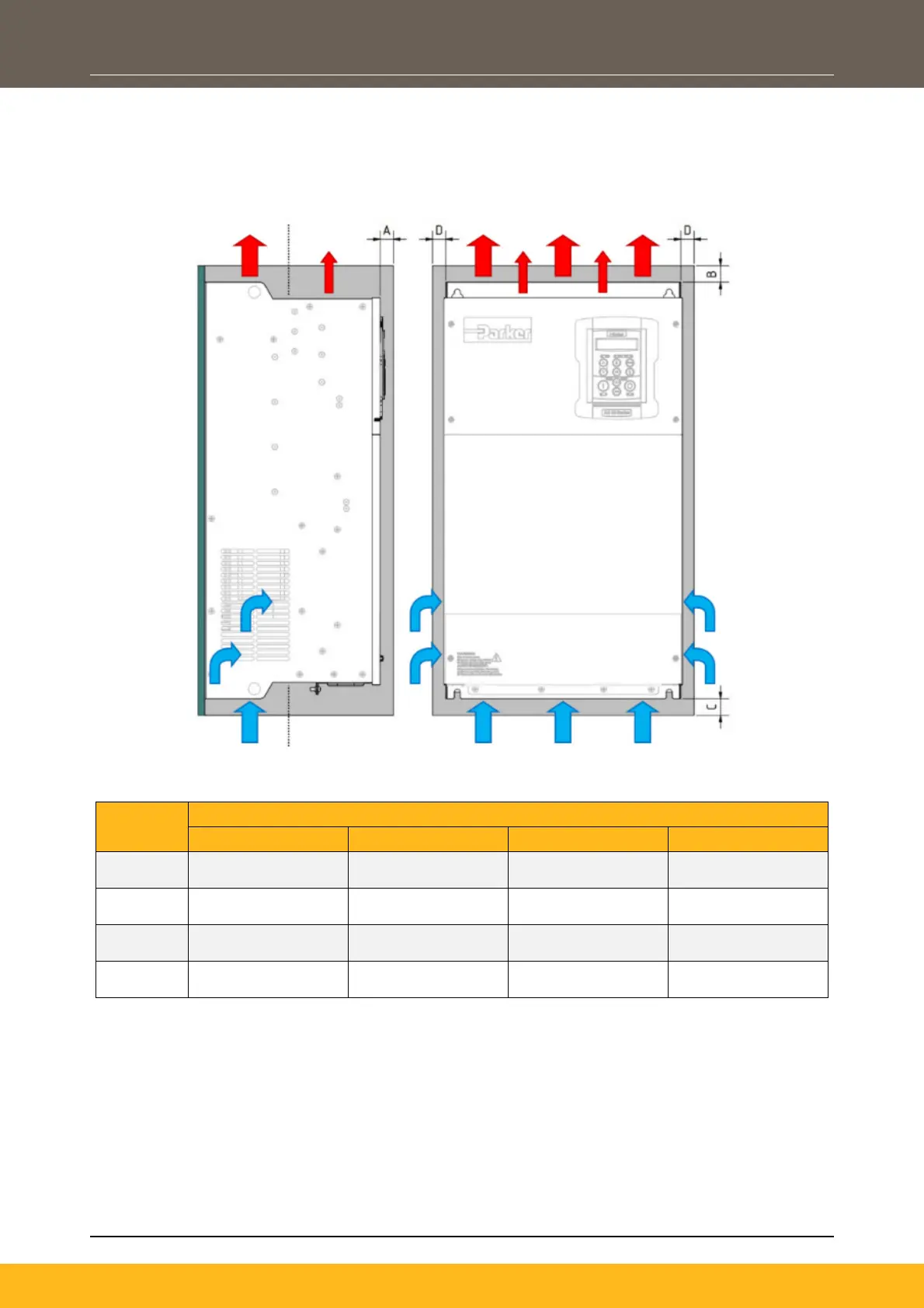

Frame 7 is shown for illustration only.
Frame
Size
Product Clearances
A
B
C
D
7
10.0
(0.39)
200.0
(7.87)
200.0
(7.87)
50.0
(1.97)
8
10.0
(0.39)
200.0
(7.87)
200.0
(7.87)
50.0
(1.97)
9
10.0
(0.39)
200.0
(7.87)
200.0
(7.87)
50.0
(1.97)
10
10.0
(0.39)
200.0
(7.87)
200.0
(7.87)
50.0
(1.97)
All dimensions in millimeters (inches)
Forced
Air Flow
Forced Air
(Fr 10 only)
