DOC-0017-04-EN: AC20 Series - Hardware Installation Manual
24 (154) DOC-0017-04-EN-A 22.03.2023

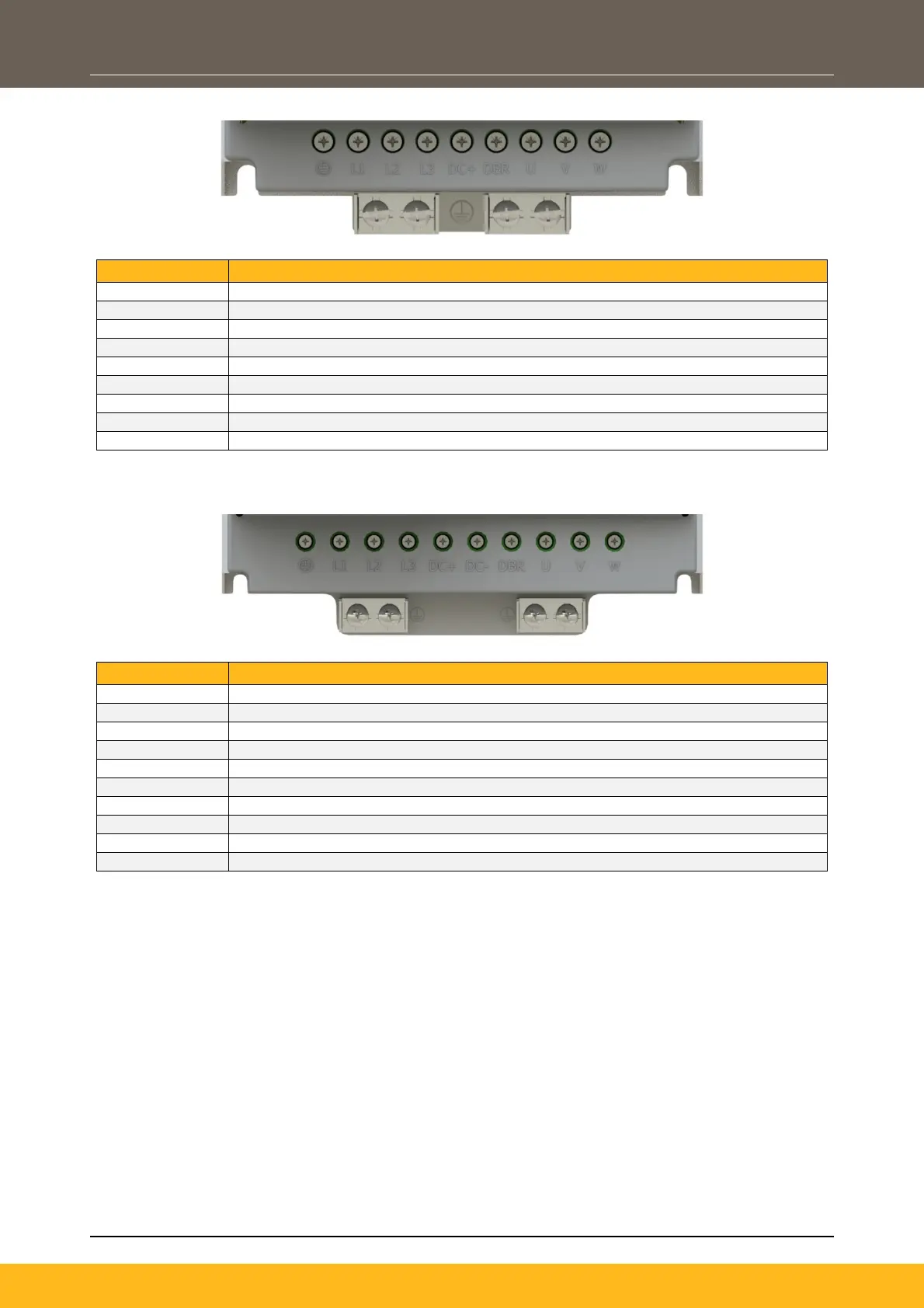

Frames 3 & 4:
Label
Description
PE
Protective Earth
L1
Supply Input Phase L1
L2
Supply Input Phase L2
L3
Supply Input Phase L3
DC+
DC+ / Dynamic Brake Resistor Connection (+)
DBR
Dynamic Brake Resistor Connection (-)
U
Motor Output Phase U
V
Motor Output Phase V
W
Motor Output Phase W
Frame 5:
Label
Description
PE
Protective Earth
L1
Supply Input Phase L1
L2
Supply Input Phase L2
L3
Supply Input Phase L3
DC+
DC+ / Dynamic Brake Resistor Connection (+)
DC-
DC-
DBR
Dynamic Brake Resistor Connection (-)
U
Motor Output Phase U
V
Motor Output Phase V
W
Motor Output Phase W
