Lower Terminal Cover Removal (Frames 6 – 10)
On the Frames 6 – 10, the lower terminal cover must be removed to gain access to the power terminals for
wiring.

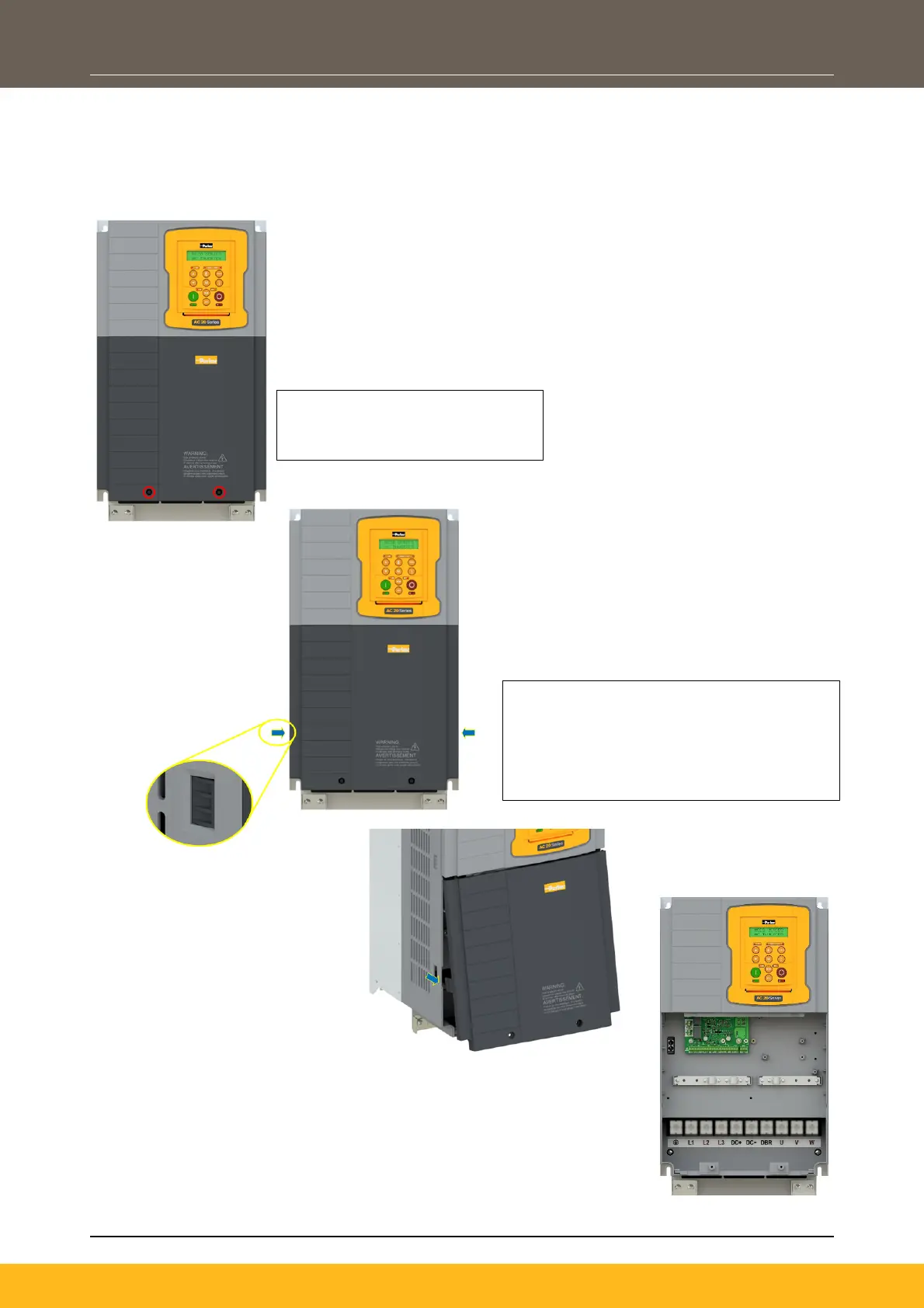

Frame 6:
1. Remove the two fixing screws
from the bottom edge of the
lower terminal cover.
2. Push the two clips in at the sides of the
lower cover.
3. With the clips pushed in, push them up
towards you to remove the lower panel
and access the power terminals.
