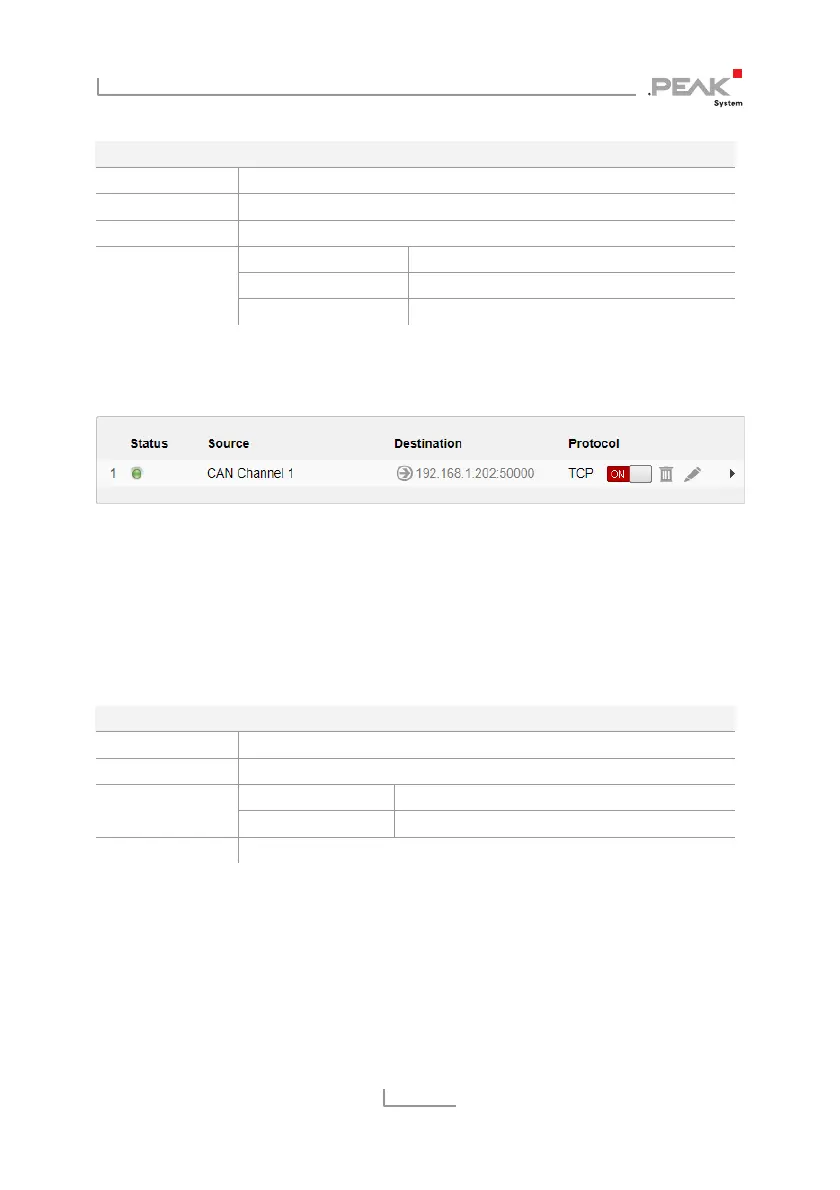

Gateway 1 > Send Route
Route Direction Send: CAN > IP
Status Activate
CAN Channel 1 (connected to CAN bus A)
IP-Address 192.168.1.202 (address of Gateway 2)
Port 50000
IP Interface
Protocol TCP
After saving, the route on Gateway 1 will be displayed on the
Routing > Manage Routes
page as follows.
Creating a Receive Route
Gateway 2 is to accept the data packets sent via LAN network by
Gateway 1, and pass the containing CAN messages through CAN
channel 2 into CAN bus B. For this, a Receive route with the
following values must be created.
Gateway 2 > Receive Route
Route Direction Receive: IP > CAN
Status Activate
Port 50000 (like the Send route) IP Interface
Protocol TCP (like the Send route)
CAN Channel 2 (connected to CAN bus B)
Transferring data between 2 PCAN-Gateways always consists of a
Send and a Receive route. Note that both should use the same
transfer protocol (TCP or UDP) and the same port.
After saving, the route on Gateway 2 will be displayed on the
Routing > Manage Routes
page as follows.
