The CAN interfaces can be configured on the Network > CAN
page. In addition, this page provides detailed information about
the interfaces
LAN Interfaces:
This box displays the LAN interface settings. IP address, Subnet
mask, and gateway are adjustable. The MAC address cannot be
changed. Each device receives a unique MAC address during the
manufacturing process, which can be used for identification.
The LAN interface can be configured on the Network > LAN
page
5.5.1 CAN
The
Network > CAN page displays the current settings of the CAN
interfaces as well as options to configure them. Information about
the status, Listen-Only-Mode, and the bit rates is displayed for each
CAN channel.
Channel: The channel number of the CAN interface. This number is
used to select the intended interface while creating a route.
Status: The LED indicates the state of the CAN channel.

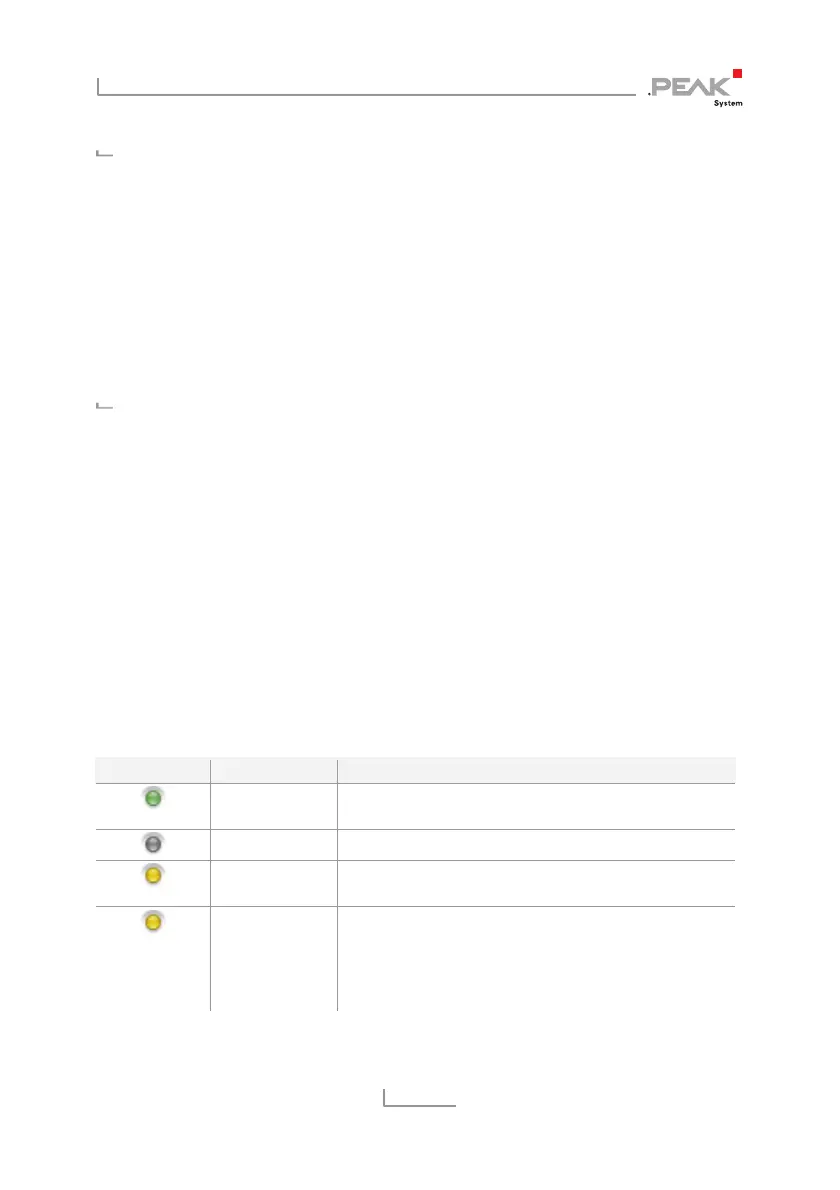

LED Symbol Status Meaning
Active The CAN interface is active and the error counter is
lower than 96 (Error Active).
Inactive The channel is inactive or sleeping.
Error Warning Errors were detected on the bus. The error counter
reached the threshold of 96.
Error Passive Errors were detected on the bus. The error counter
reached the threshold of 128. Please check the
CAN connection and the configured bit rates. The
values should match the bit rates of the connected
CAN bus.
