P350 flexitrax Operation Manual 45
Poles
Connect as many poles as required ensuring that the push button, fig 4.7, is fully engaged

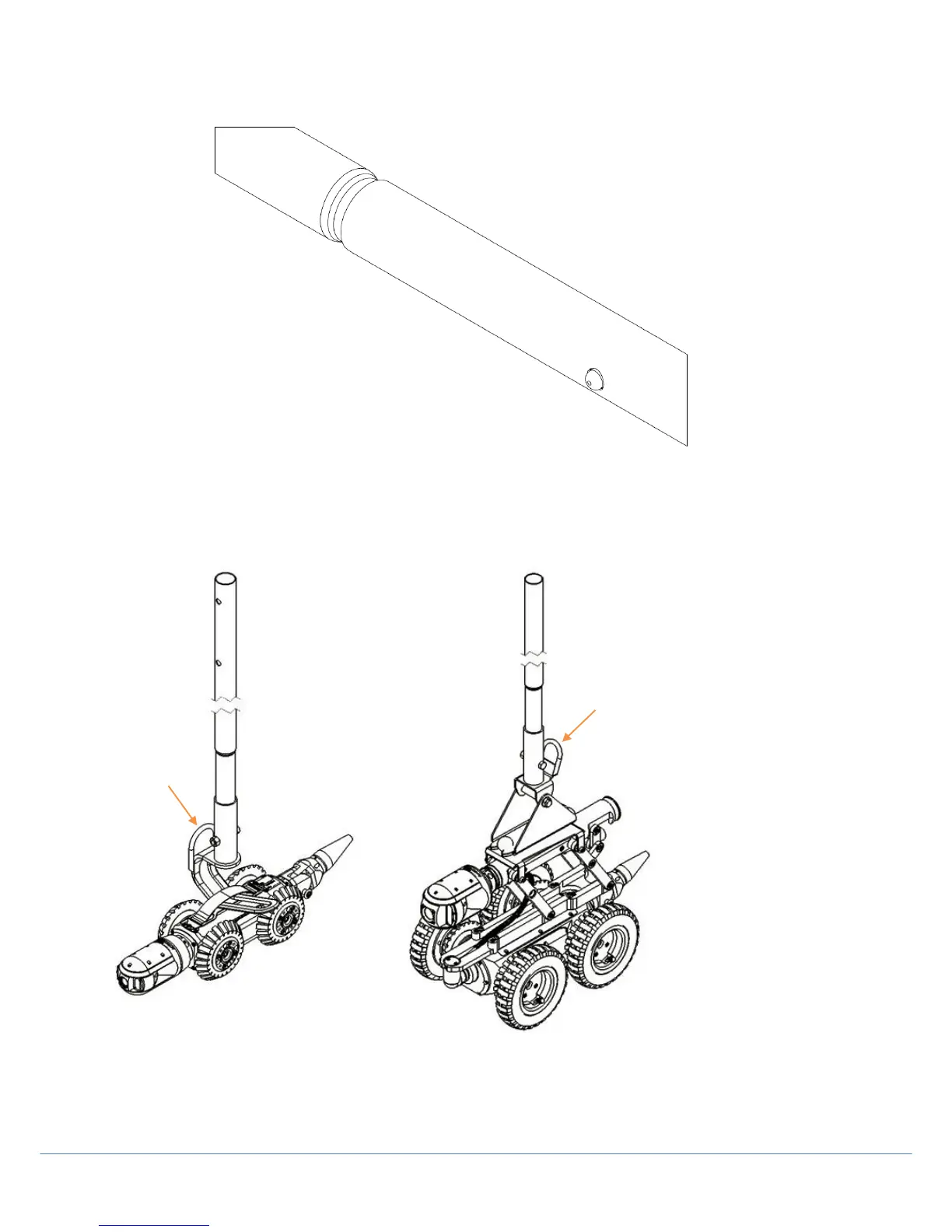

Figure 4.7: Poles assembly
Using the deployment tool
Once ready you can use the deployment tool, you can hook the strap or engage the cradle to the large elevator bracket
as shown in figure 4.8, to lift the crawler assembly.
Figure 4.8: Using the deployment tool
Ensure that the hook or the cradle is properly engaged to the strap or elevator bracket before trying to lift the crawler.
We recommend the use of a suitable rope to stabilize and aid the deployment/retrieval operation. Use the highlighted
eyes in figure 4.8 to secure the rope to the hook or cradle.
