P350 Operation Manual 44
Attach the bracket to the large elevator assembly, fig 4.6, following these steps:
1. Remove the 4× M6x16 screws using a 4mm Allen key
2. Remove the 4× bushes and friction o rings from the linkage arms
3. Fit the new adaptor bushes and o rings and tighten firmly (recommended torque 8Nm or 70 in-lbs) using a
15mm hex wrench.
4. Secure the bracket to the elevator assembly using the new 4 off M6x12 screws supplied with the lifting tool,
and tighten firmly (recommended torque 8Nm or 70 In-Lbs).

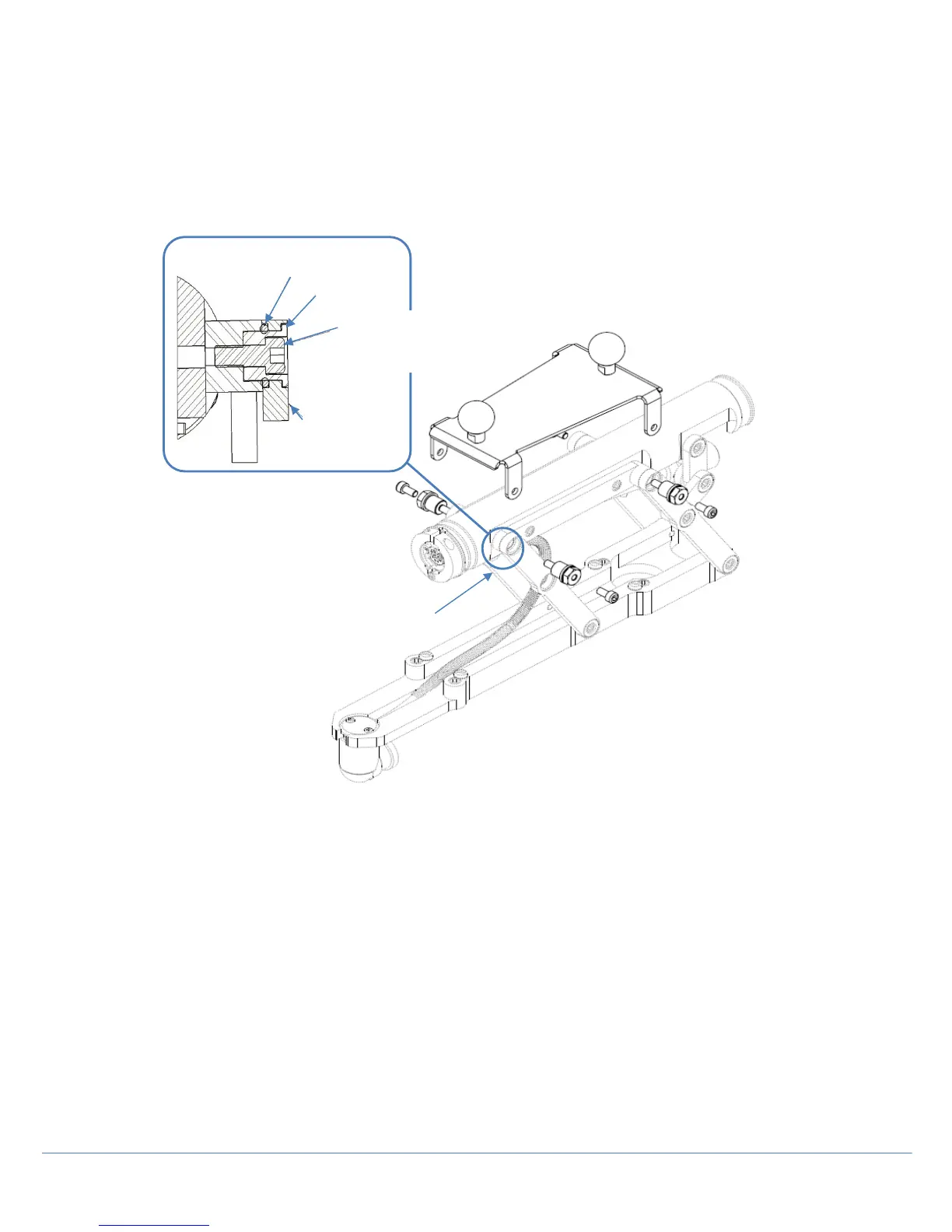

Figure 4.6: Elevator bracket assembly
