P350 flexitrax Operation Manual 43
Strap hook setup
To use the straps to deploy or retrieve the crawler, you must attach the crawler hook to the bottom pole, see fig 4.4,
using the screw (3/8-16 UNC 2" HEX HD SS) and nut (3/8"x16U NC NYLOC SS) provided

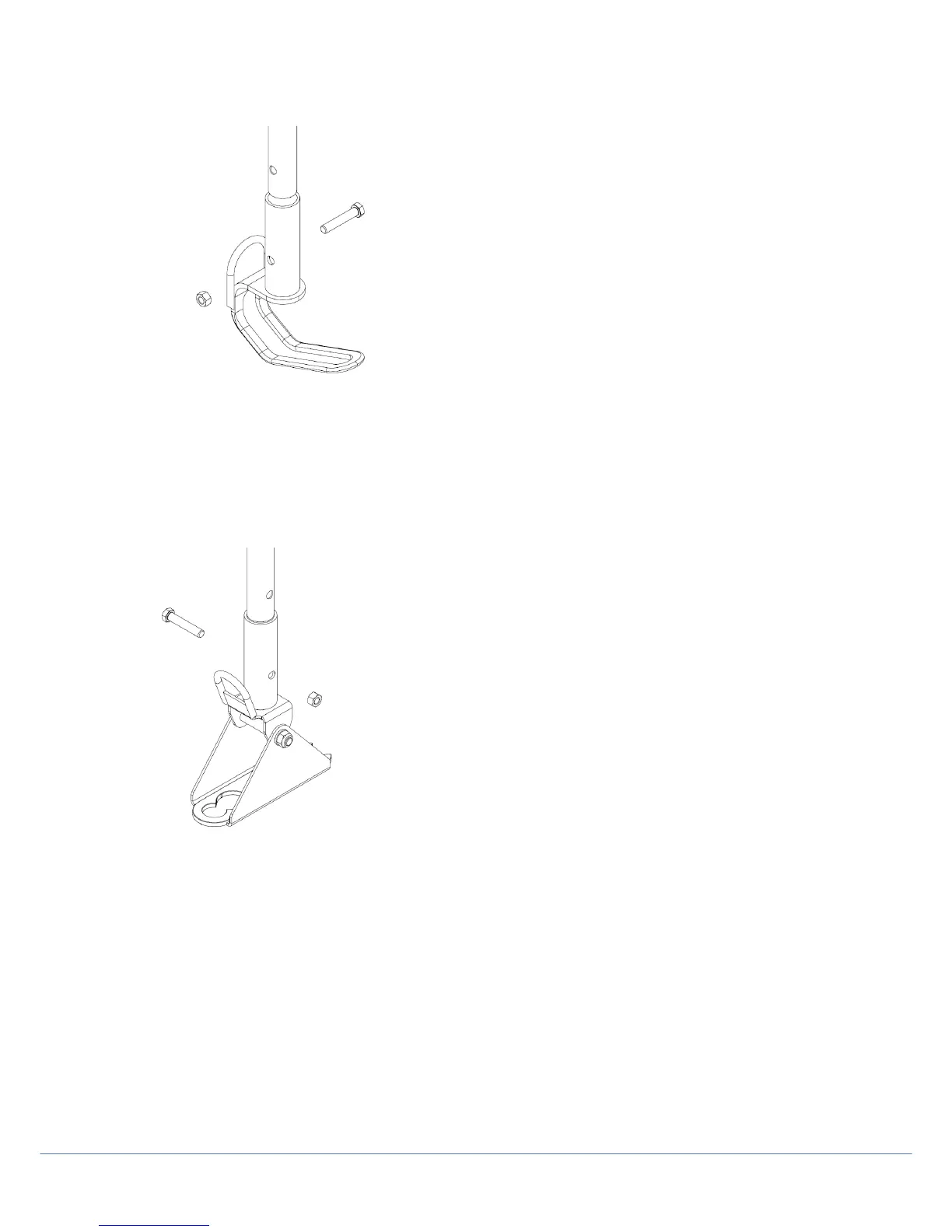

Figure 4.4: Strap hook assembly
Large Elevator Assembly
When using a large elevator you must use the P356 Large Elevator grab system.
Attach the elevator cradle, fig.4.5, to the bottom pole using using the screw (3/8-16 UNC 2" HEX HD SS) and nut
(3/8"x16U NC NYLOC SS) provided.
Figure 4.5: Elevator cradle assembly
