Installer manual Autotrol Magnum 293 - 298 Logix 742-762 - Spare parts
Ref. MKT-IM-012 / D - 03.02.2022 103 / 110
Item Part number Description Assembly
quantity
5+6+7
+8+9
1233809 Logix Magnum controller mechanical assembly (items #5, 6,
7, 8, 9, 10, 12)
1
* 1000813 Wall mount transformer 220 V/12 V UK 1
* 1000814 Wall mount transformer 220 V/12 V EUR 1
* 1001858 Wall transformer hard wired 12 V UK 1
* 1263718 Remote mount kit, with 3.05 m cable (controller not included) 1
* 1256257 Remote mount kit, no cable (controller not included) 1
* Not shown

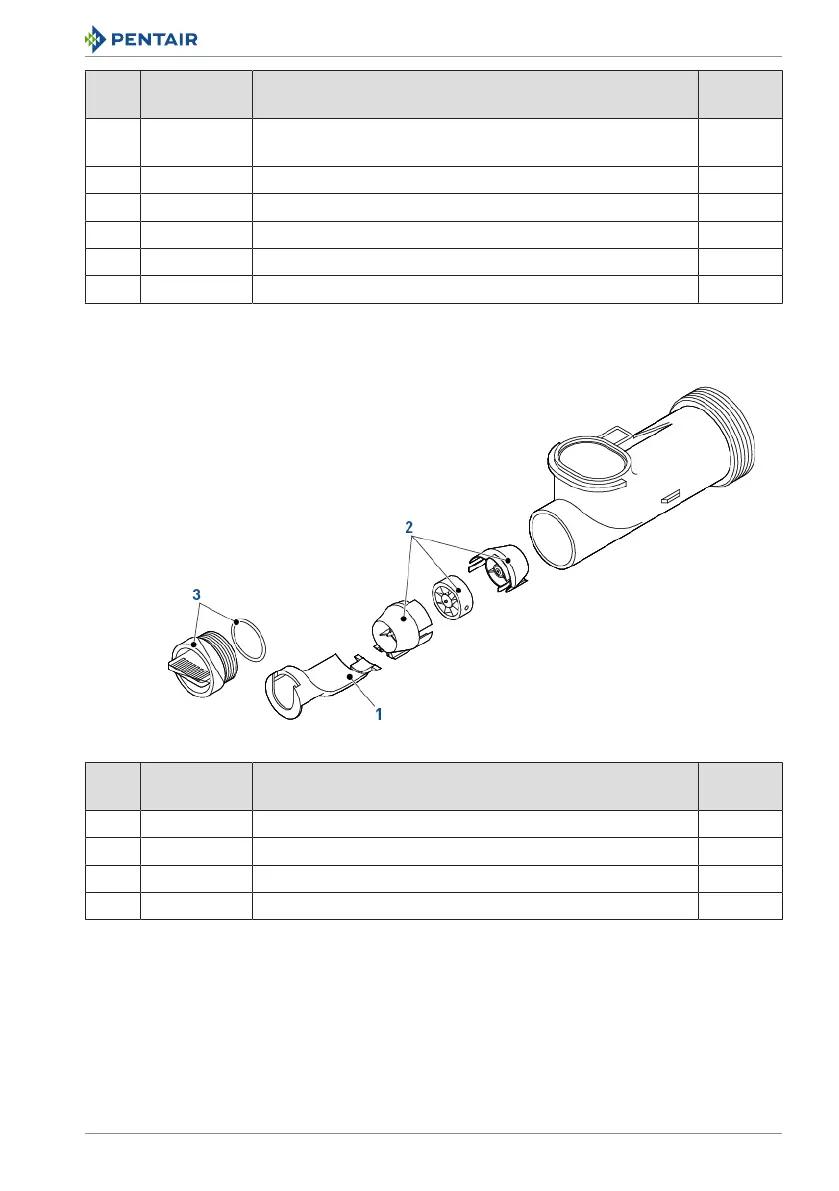

11.9 Magnum IT turbine
Item Part number Description Assembly
quantity
1 1000074 Insert, corner 2" 1
2 1232965 Assembly, turbine 2" elbow 1
3 1040688 Assembly, plug 1
* 1266722 Cable and turbine sensor, Logix Magnum IT, 32" 1
* Not shown
