Installer manual Autotrol Magnum 293 - 298 Logix 742-762 - System sizing
Ref. MKT-IM-012 / D - 03.02.2022 33 / 110

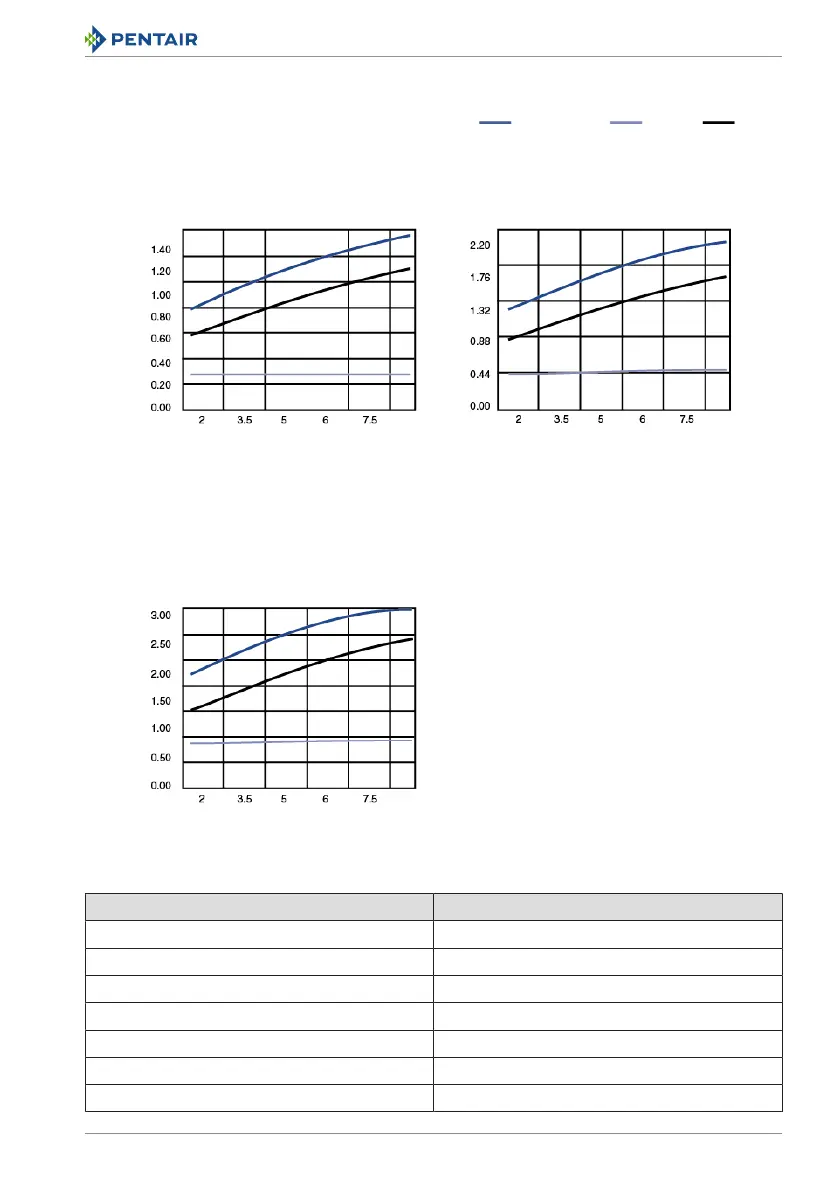

TOTAL
BRINE DRAW
RINSE
Injector 1000445
For 24" Tanks
Injector 1000446
For 30" Tanks
Inlet pressure [bar] Inlet pressure [bar]
Flow rate [l/min]
Flow rate [l/min]
Injector 1000447
For 36" Tanks
Inlet pressure [bar]
Flow rate [l/min]
4.4 Standard efficiency exchange capacity
Salt [grams/liter] Exchange capacity [grams/liter]
50 29.9
60 34
70 37.5
80 40.6
90 43.4
100 45.9
110 48.2
